R5F524T8ADFM#51 is a RX200 Series, RX24T group 32bit microcontroller with on-chip FPU enable to drive two motors simultaneously. The RX24T group is a 32bit microcontroller suited for dual inverter control that has a built-in Floating-Point Unit (FPU) which enables it to easily program complex inverter control algorithms. Suitable for 48V position control solution, point-of-sale printer controller, resolver motor control solutions for consumer and industrial applications, small industrial robot, motor solution using a magnetic encoder, central vacuum cleaner, portable EV charger, highly efficient and cost-optimized smart heat pump, heat pump control system, industrial, office automation, home appliances, motor control with resolver solution, absolute inductive position sensor, DTDS inverter aircon solution, Etouch RX24T + Resolver solution, portable EV charger.
- Chip version A
- 128Kbytes/16Kbytes/8Kbytes of ROM/RAM/E2 DataFlash capacity
- Low power design and architecture with single 2.7V to 5.5V supply
- DTC: four data transfer functions
- POR and LVD reset and supply management
- Features MPC, independent watchdog timer
- Up to 6 communications channels
- 22 channel 12bit A/D converter in 3 units and 2 ch, 8-bit D/A converter

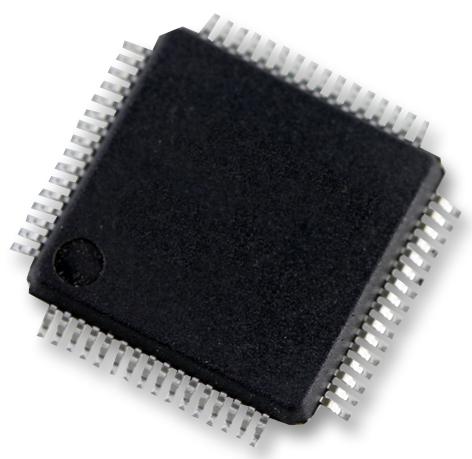

- 0.5mm pitch, 64 pin LFQFP package
- Operating peripheral temperature range from -40 to +85°C
Product details
| Product Range:
RX Family, RX200 Series, RX24T Group Microcontrollers
|
| Device Core:
RXv2
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
80MHz
|
| Program Memory Size:
128KB
|
| No. of Pins:
64Pins
|
| IC Case / Package:
LFQFP
|
| No. of I/O's:
48I/O's
|
| Interfaces:
I2C, SCI, SPI
|
| RAM Memory Size:
16KB
|
| ADC Channels:
22Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
2.7V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
RX
|
| MCU Series:
RX200
|
| Qualification:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
R5F524T8ADFM#51 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
