R5F51305ADFL#50 is a RX100 series, RX130 group cost-optimized, high performance 32bit microcontroller with enhanced touch key function and 5V operation support. The RX130 Group integrates a built-in max. 36-channel capacitive touch sensor. The capacitive touch sensor uses an improved detection method compared to previous products and so has vastly improved noise immunity, sensitivity and water resistance. As a result, malfunctions have been reduced, and touch keys are now able to be applied to a variety of materials like e.g. wood, other than the typical acrylic or glass: The RX130 touch feature is an ideal fit for consumer electronics products that are used in wet environments such as in the kitchen or bath. The RX130 Group has a lot of built-in functional safety hardware, and can easily support the IEC/UL 60730 safety standard for consumer electronics. So it is suitable for applications such as home appliances (washing machine, IH cooking heater) with touch panel function.
- Chip version A
- 32bit RX CPU core with maximum operating frequency of 32MHz
- 128Kbytes/16Kbytes/8Kbytes of ROM, RAM and E2 dataflash capacity
- Low power design and architecture, operation from a single 1.8V to 5.5V supply
- Features DTC, ELC, realtime clock and independent watchdog timer
- Up to 6 communication functions
- Remote control signal reception
- Up to 12 extended-function timersMPC

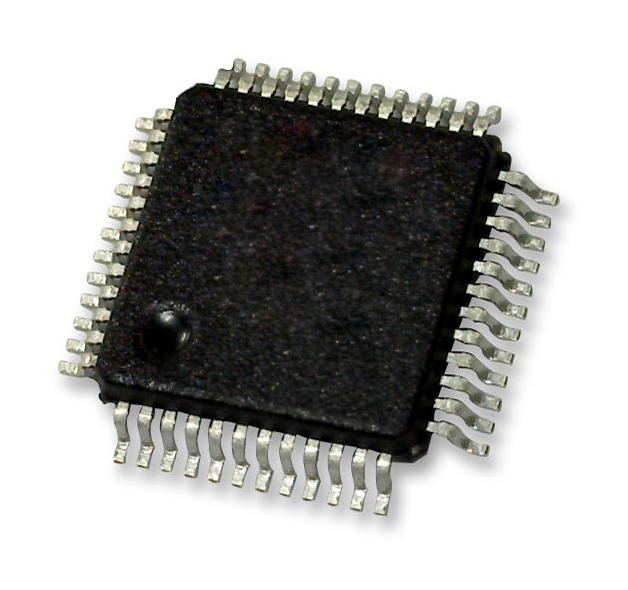

- 0.5mm pitch 48 pin LFQFP
- Operating ambient temperature range from -40°C to +85°C
Product details
| Product Range:
RX Family, RX100 Series, RX130 Group Microcontrollers
|
| Device Core:
RX
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
32MHz
|
| Program Memory Size:
128KB
|
| No. of Pins:
48Pins
|
| IC Case / Package:
LFQFP
|
| No. of I/O's:
38I/O's
|
| Interfaces:
I2C, SPI, UART
|
| RAM Memory Size:
16KB
|
| ADC Channels:
10Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
RX
|
| MCU Series:
RX100
|
| Qualification:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
R5F51305ADFL#50 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
