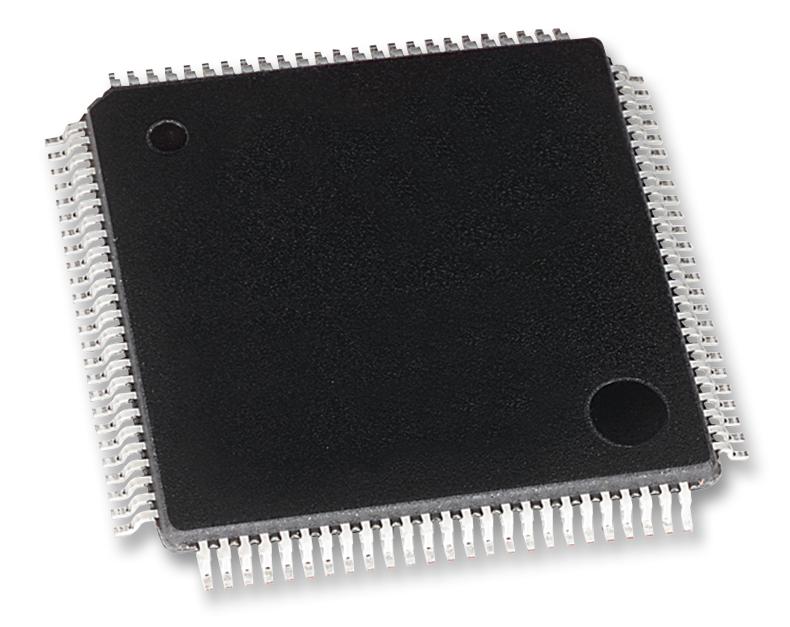

R5F111PJAFB#50 is a RL78/L1C group high-function LCD microcontroller without USB. RL78/L1C microcontroller has a built-in segment LCD driver. Three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. This microcontroller can be used in sensor modules and healthcare devices as well as home appliances and measurement devices.
- RL78 core, max 24MHz CPU
- Ultra-low power consumption technology with 1.6 to 3.6V voltage range
- High-speed on-chip oscillator
- 256KB ROM capacity
- High-speed on-chip oscillator
- POR and LVD power management and reset function
- Data transfer controller (DTC) and Event link controller (ELC)
- Simplified SPI, UART/UART (LIN-bus supported) and I2C/simplified I2C serial interface
- 0.50mm pitch 100-pin LFQFP package
- Consumer applications, temperature range from -40 to +85°C
Product details
| Product Range:
RL78 Family, RL78/L1x Series, RL78/L13 Group Microcontrollers
|
| Device Core:
RL78
|
| Data Bus Width:
16 bit
|
| Operating Frequency Max:
24MHz
|
| Program Memory Size:
256KB
|
| No. of Pins:
100Pins
|
| IC Case / Package:
LFQFP
|
| No. of I/O's:
81I/O's
|
| Interfaces:
I2C, CSI, UART
|
| RAM Memory Size:
16KB
|
| ADC Channels:
13Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.6V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Series:
RL78/L1x
|
| MCU Family:
RL78
|
| Qualification:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
R5F111PJAFB#50 |
| Quantity |
Each (Supplied on Cut Tape) |
