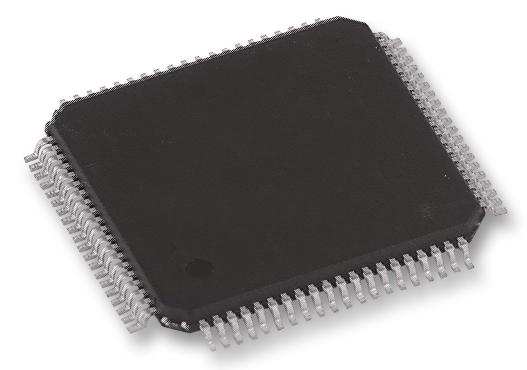

R5F10WMAGFB#50 is an RL78/L13 group standard LCD microcontroller with low power consumption, suitable for LCD display of home appliances or measurement devices. RL78/L13 microcontroller has a built-in segment LCD driver. Three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. This microcontroller is a perfect for devices with built-in LCD panels such as home appliances and healthcare devices. It is also suitable for use in power solution for smart power meter with 4G module, LoRaWAN® based gas meter, central vacuum cleaner, office and security.
- RL78 core, Max 24MHz CPU
- Ultra-low power consumption technology and voltage range from 1.6V to 5.5V
- High-speed on-chip oscillator
- 16KB ROM capacity
- POR, LVD power management and reset function
- Supports DMA (Direct Memory Access) controller, multiplier and divider/multiply-accumulator
- 2 ch CSI, UART/UART (LIN-bus supported) and I2C/simplified I2C communication interfaces
- 8/10-bit resolution A/D converter (VDD = 1.6 to 5.5V)
- 0.50mm pitch 80-pin LFQFP package
- Industrial applications, temperature range from -40°C to +105°C
Product details
| Product Range:
RL78 Family, RL78/L1x Series, RL78/L1C Group Microcontrollers
|
| Device Core:
RL78
|
| Data Bus Width:
16 bit
|
| Operating Frequency Max:
24MHz
|
| Program Memory Size:
16KB
|
| No. of Pins:
80Pins
|
| IC Case / Package:
LFQFP
|
| No. of I/O's:
65I/O's
|
| Interfaces:
I2C, CSI, UART
|
| RAM Memory Size:
1KB
|
| ADC Channels:
12Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
1.6V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Series:
RL78/L1x
|
| MCU Family:
RL78
|
| Qualification:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
R5F10WMAGFB#50 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
