R5F1076CMSP#X0 is a RL78/I1A group microcontroller that output high-resolution PWM for fine dimming and toning of LED lighting. RL78/I1A microcontroller realize PWM output of a minimum 0.98ns resolution using 64MHz timer operation and dithering function, supporting fine dimming and toning. Through cooperation between the PWM timer and comparator/external interrupt input, PFC control and protection functions can be realized by hardware. Low consumption current of 3.3mA during LED and power supply control and 0.23µA when waiting for UART (DALI) communication allows the power consumption of the system to be reduced. DALI/DMX512 lighting communication and Power Management Bus (PMBus) and System Management Bus (SMBus) power communication are supported. This microcontroller can be used in LED lighting equipment and digital power supplies, home appliance, lighting, motor control, power supply.
- RL78 core, max 32MHz CPU
- Ultra-low power technology, 2.7V to 5.5V operation from a single supply
- 32KB ROM capacity
- High-speed on-chip oscillator
- POR, LVD reset and supply management
- Data Memory Access (DMA) controller
- Extended-function timers
- Multiple communication interfaces
- Operating ambient temperature range from -40°C to 125°C

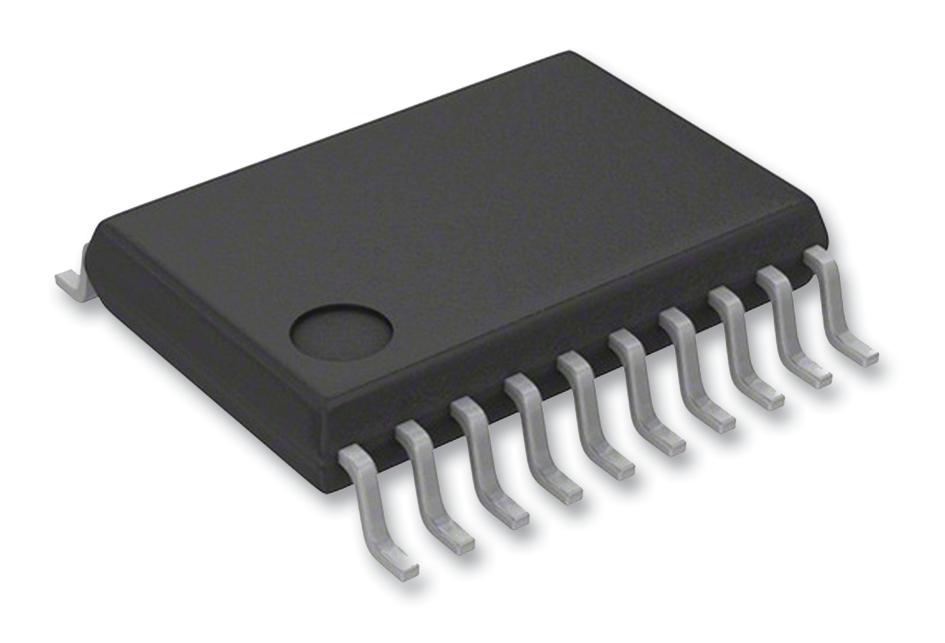

- 0.65mm pitch 20 pin SSOP package
Product details
| Product Range:
RL78 Family, RL78/I1x Series, RL78/I1A Group Microcontrollers
|
| Device Core:
RL78
|
| Data Bus Width:
16 bit
|
| Operating Frequency Max:
32MHz
|
| Program Memory Size:
32KB
|
| No. of Pins:
20Pins
|
| IC Case / Package:
LSSOP
|
| No. of I/O's:
16I/O's
|
| Interfaces:
I2C, LIN, SPI, USART
|
| RAM Memory Size:
2KB
|
| ADC Channels:
6Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
2.7V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| IC Mounting:
Surface Mount
|
| MCU Series:
RL78/I1x
|
| MCU Family:
RL78
|
| Qualification:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
R5F1076CMSP#X0 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
