RENESAS R5F104GJAFB#10 16 Bit Microcontroller, RL78 Family RL78/G1x Series RL78/G14 Group Microcontrollers, RL78, 16 bit

R5F104GJAFB#10 is an RL78/G14 low-power, high-function, general-purpose microcontroller for motor control, industrial and metering applications. This RL78/G14 microcontroller balances the industry's lowest level of consumption current (CPU: 66?A/MHz, standby (STOP): 240nA) and a high calculation performance of 51.2 DMIPS (32MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. The built-in safety features (a function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730).

• VDD = single power supply voltage of 1.6 to 5.5V, which can operate a 1.8V device at a low voltage
• RL78 CPU core: CISC architecture with 3-stage pipeline
• Address space: 1MB, general-purpose registers: (8-bit register × 8) × 4 banks
• Event signals of 19 to 26 types can be linked to the specified peripheral function
• On-chip BCD (binary-coded decimal) correction circuit
• Power management and reset function: on-chip power-on-reset (POR) circuit
• On-chip voltage detector (LVD) (select interrupt and reset from 14 levels)
• 256KB flash ROM, 8KB data flash, 24KB RAM

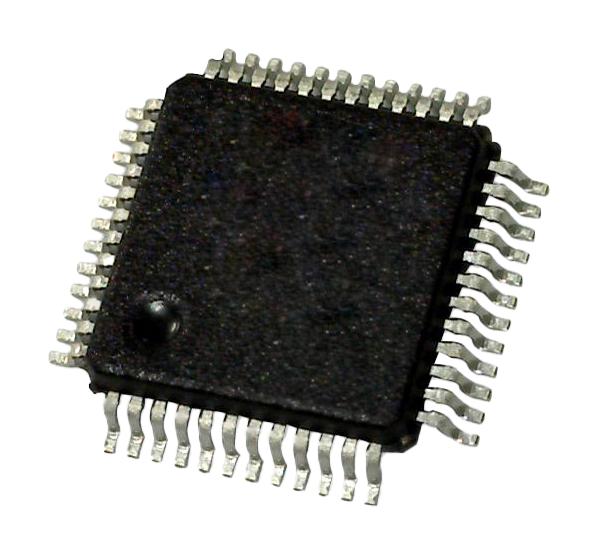

• 48-pin LFQFP package
• Consumer applications, TA = -40 to +85°C
