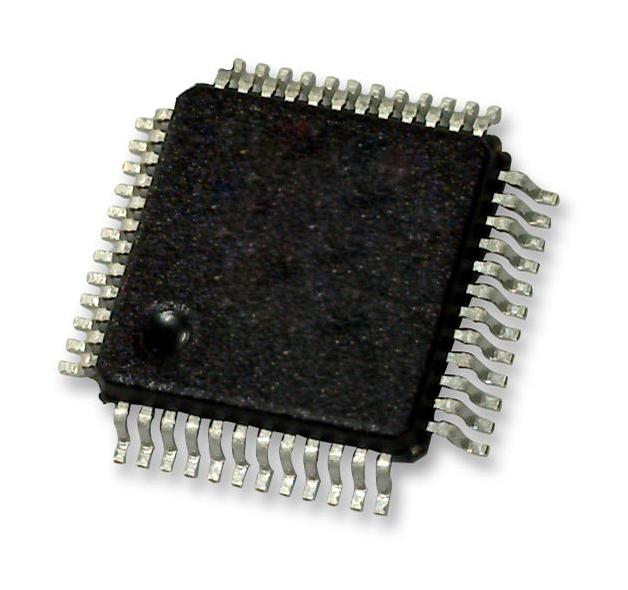

R5F104GCAFB#50 is a RL78/G14 group low power, high function, general purpose microcontroller for motor control, industrial and metering application. RL78/G14 microcontroller balances the industry's lowest level of consumption current (CPU: 66µA/MHz, standby (STOP): 240nA) and a high calculation performance of 51.2DMIPS (32MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. It has an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). With a broad 30 to 100-pin line-up and up to 512KB on-chip flash memory, this microcontroller can be used in a wide variety of applications such as motor control and consumer and industrial equipment.
- RL78 core, maximum 32MHz CPU
- Ultra-low power consumption technology and single power supply voltage of 1.6 to 5.5V
- 32KB ROM capacity
- CISC architecture with 3-stage pipeline
- High-speed on-chip oscillator
- POR, LVD
- 8/10bit resolution A/D converter with 8 to 20 input channels
- On-chip BCD (binary-coded decimal) correction circuit
- 0.5mm pitch 48 pin LFQFP package
- Suitable for consumer applications, temperature range from -40 to +85°C
Product details
| Product Range:
RL78 Family, RL78/G1x Series, RL78/G14 Group Microcontrollers
|
| Device Core:
RL78
|
| Data Bus Width:
16 bit
|
| Operating Frequency Max:
32MHz
|
| Program Memory Size:
32KB
|
| No. of Pins:
48Pins
|
| IC Case / Package:
LFQFP
|
| No. of I/O's:
44I/O's
|
| Interfaces:
I2C, CSI, UART
|
| RAM Memory Size:
4KB
|
| ADC Channels:
10Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
1.6V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Series:
RL78/G1x
|
| MCU Family:
RL78
|
| Qualification:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
R5F104GCAFB#50 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
