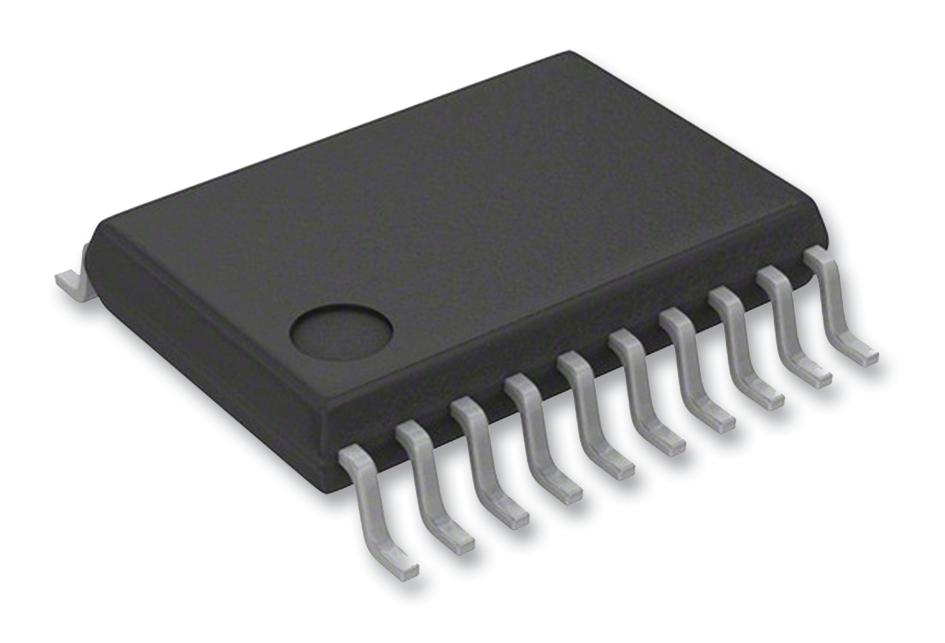

R5F10269ASP#55 is a RL78/G12 group compact, low power microcontroller for general purpose applications ideal for Sub-MCUs. RL78/G12 microcontroller balances the industry's lowest level of consumption current (CPU: 63µA/MHz, standby (STOP): 230nA) and a high performance of 32.4DMIPS (24MHz). It has an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). Suitable for use in tankless gas water heater with remote control, smart toilet, air purifier sensor module, household smoke detector, flexible 6-channel power sequencer, robotic lawn mower, portable ultraviolet disinfector, office, home appliance, healthcare and security.
- RL78 core, max 24MHz CPU
- Ultra-low power consumption technology with 1.8V to 5.5V voltage range
- 12KB ROM capacity
- DMA (Direct Memory Access) controller
- 16bit timer (ch) 4 to 8 channels, watchdog timer (ch) x 1, 12bit interval timer x 1 ch
- Features high-speed on-chip oscillator
- POR and LVD power management and reset function
- Simplified SPI, UART, simplified I2C communication and I2C communication serial interface
- 20-pin LSSOP package with 0.65mm pitch
- Suitable for consumer applications and temperature range from -40°C to +85°C
Product details
| Product Range:
RL78 Family, RL78/G1x Series, RL78/G12 Group Microcontrollers
|
| Device Core:
RL78
|
| Data Bus Width:
16 bit
|
| Operating Frequency Max:
24MHz
|
| Program Memory Size:
12KB
|
| No. of Pins:
20Pins
|
| IC Case / Package:
LSSOP
|
| No. of I/O's:
18I/O's
|
| Interfaces:
I2C, CSI, UART
|
| RAM Memory Size:
1KB
|
| ADC Channels:
11Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Series:
RL78/G1x
|
| MCU Family:
RL78
|
| Qualification:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
R5F10269ASP#55 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
