R5F100GCAFB#50 is a RL78/G13 low power, high function microcontroller for general purpose applications. The RL78/G13 microcontroller balances the industry's lowest level of consumption current (CPU: 66µA/MHz, standby (STOP): 230nA) and a high performance of 43.2DMIPS (32MHz). They have an on-chip oscillator, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). This microcontroller can be used in a wide variety of applications from home and consumer appliances to industrial equipment.
- RL78 core, max 32MHz CPU
- Ultra-low power consumption technology and 1.6V to 5.5V single power supply voltage
- Data flash is provided
- 32KB ROM capacity
- Timers: 16bit (8 to 16 ch) 12bit interval (1 ch), real-time clock (1 ch) and watchdog (1 ch)
- Simplified SPI, UART/UART (LIN-bus supported) and I2C/simplified I2C communication interface
- 8/10bit resolution A/D converter (VDD = 1.6 to 5.5V) and High-speed on-chip oscillator
- Power-on reset, low voltage detection power management and reset function

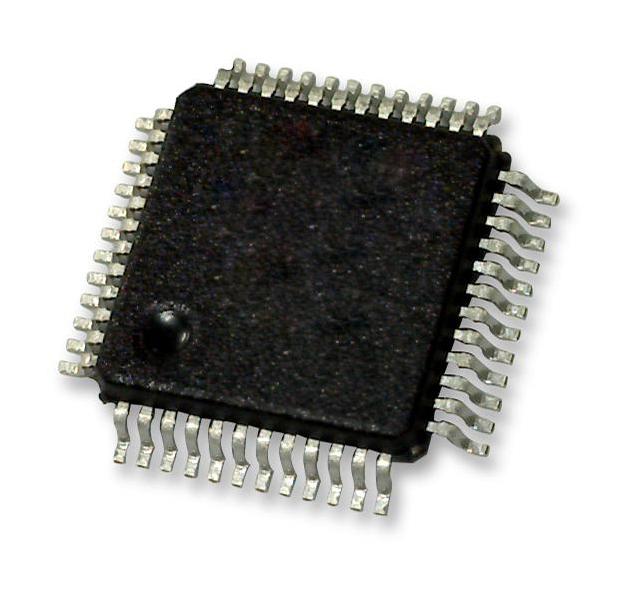

- 0.5mm pitch 48-pin LFQFP package
- Consumer applications, operating ambient temperature range from -40°C to +85°C
Product details
| Product Range:
RL78 Family, RL78/G1x Series, RL78/G13 Group Microcontrollers
|
| Device Core:
RL78
|
| Data Bus Width:
16 bit
|
| Operating Frequency Max:
32MHz
|
| Program Memory Size:
32KB
|
| No. of Pins:
48Pins
|
| IC Case / Package:
LFQFP
|
| No. of I/O's:
44I/O's
|
| Interfaces:
I2C, CSI, UART
|
| RAM Memory Size:
2KB
|
| ADC Channels:
10Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
1.6V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Series:
RL78/G1x
|
| MCU Family:
RL78
|
| Qualification:
-
|
Other details
| Brand |
RENESAS |
| Part Number |
R5F100GCAFB#50 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
