RENESAS M30626FHPFP#U3C 16 Bit Microcontroller, M16C Family M16C/60 Series M16C/62P Group Microcontrollers, M16C/60

M30626FHPFP#U3C is a M16C/60 series single-chip, 16bit CMOS microcontroller. It is built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core. This single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, this is capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires highspeed arithmetic/logic operations. applications include audio, cameras, television, home appliance, office/communications/portable/industrial equipment, automobile, etc.

• 384K+4Kbytes ROM capacity, 31Kbytes RAM capacity
• Input/output : 70 pins, input : 1 pin port
• 10bit A/D converter: 1 circuit, 26 channels A/D converter
• 2 channels DMAC, CCITT-CRC CRC calculation circuit
• 15 bits x 1 channel (with prescaler) watchdog timer
• Flash memory version
• Supply voltage range from 3.0 to 5.5V, (f(BCLK=24MHz)/2.7 to 5.5V, (f(BCLK=10MHz)
• Power consumption is 14mA (VCC1=5V, f(BCLK)=24MHz)
• Main clock input oscillation frequency is 16MHz max (-40 to 85°C)

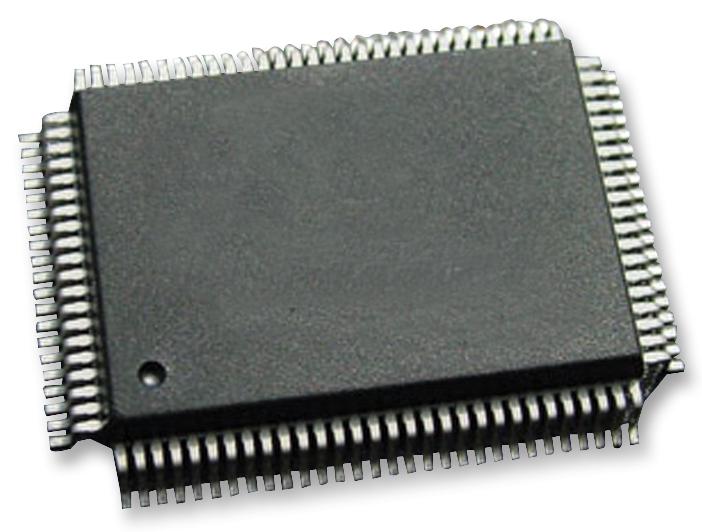

• 100pin P6S-A package, operating temperature range from -40°C to 85°C

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
