- 300mA high performance low dropout linear regulator
- Excellent transient response to large current steps
- Excellent load regulation of <0.1% voltage change across full range of load current
- High PSRR of 90dB
- Wide input voltage capability of 2.3V to 6.5V
- Very low quiescent current of 25µA
- Low dropout voltage typically 200mV at 300mA
- Low output noise typically 30µVRMS at 100µA (1.5V)
- Soft-start to limit input current surge during enable function
Other details
| Brand |
RENESAS |
| Part Number |

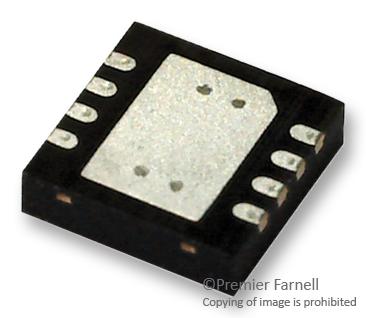

ISL9001AIRNZ-T |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
