The ISL83491IBZ is a BiCMOS powered Single Transceiver meets both the RS-485 and RS-422 standards for balanced communication. Unlike competitive devices, this family is specified for 10% tolerance supplies. It utilizes slew rate limited drivers which reduce EMI and minimizes reflections from improperly terminated transmission lines or un-terminated stubs in multi-drop and multipoint applications. Logic inputs accept signals in excess of 5.5V, making them compatible with 5V logic families. Receiver (Rx) inputs feature a fail-safe if open design, which ensures a logic high output if Rx inputs are floating. The device presents a single unit load to the RS-485 bus, which allows up to 32 transceivers on the network. Driver (Tx) outputs are short circuit protected, even for voltages exceeding the power supply voltage. Additionally, on-chip thermal shutdown circuitry disables the Tx outputs to prevent damage if power dissipation becomes excessive.
- Interoperable with 5V logic
- Single unit load allows up to 32 devices on the bus
- Slew rate limited versions for error free data transmission
- Full duplex and half duplex pin-outs
- Current limiting and thermal shutdown for driver overload protection
- Low current shutdown mode
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
RENESAS |
| Part Number |
ISL83491IBZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD CadSoft_EAGLE EN |
|
| Product Change Notice EN |
|

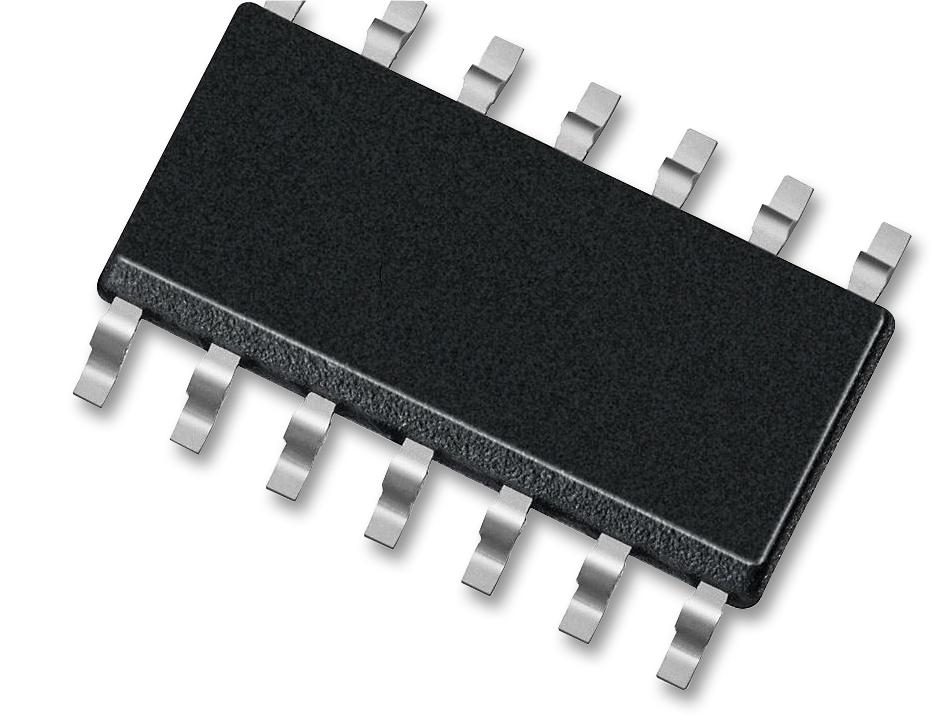

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
