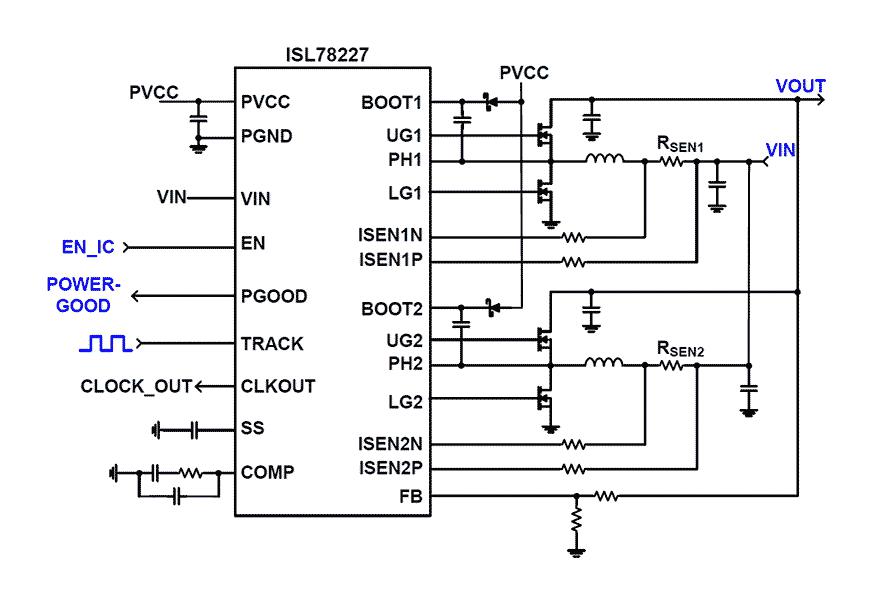

2-phase boost controller with integrated drivers. This is automotive grade (AEC-Q100 Grade 1), 5V synchronous boost controller that simplifies the design of high power boost applications. It integrates strong half-bridge drivers an analogue/digital tracking input and comprehensive protection functions. This is suitable for automotive power systems (12V to 24V, 12V to 48V, etc.), trunk audio amplifiers, start-stop systems, automotive boost applications, industrial and telecommunication power supplies.
- Input/output voltage range: 5V to 55V withstands 60V transients
- Supports synchronous or standard boost topology
- Peak current mode control with adjustable slope compensation
- Secondary average current control loop
- Switching frequency: 50KHz to 1.1MHz per phase
- External synchronization
- Programmable minimum duty cycle, programmable adaptive dead time control
- PWM and analogue track function
- Forced PWM operation with negative current limiting and protection
- Comprehensive fault protections, selectable hiccup or latch-off fault response
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
RENESAS |
| Part Number |
ISL78227ARZ-T7A |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

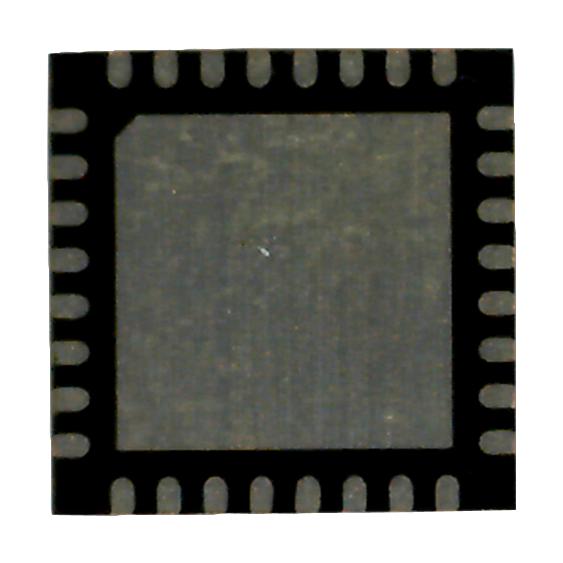

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
