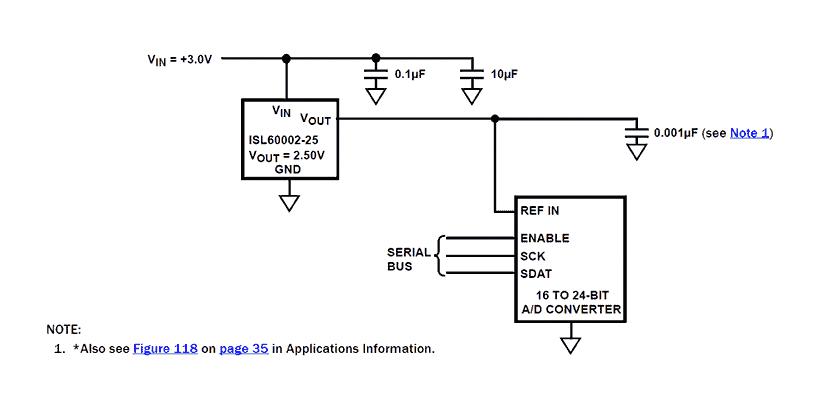

Very high precision low power FGA voltage reference. The initial accuracy and temperature stability performance of the ISL60002 family, plus the low supply voltage and 350nA power consumption, eliminates the need to compromise thermal stability for reduced power consumption, making it an ideal companion to high resolution, low power data conversion systems. It is suitable for High resolution A/Ds and D/As, digital meters, bar code scanners, mobile communications, medical systems, PDAs and notebooks applications.
- 1024V Vout, ±5.0mV, 20ppm/°C grade
- Temperature range -40 to 85°C
- ESD protection 5.5KV (human body model)
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
RENESAS |
| Part Number |
ISL60002DIH310Z-TK |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
