Description

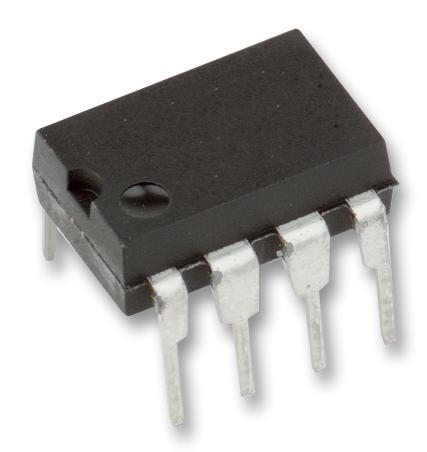

The ICL7621DCPAZ is a Dual CMOS Operational Amplifier provides the designer with high performance operation at low supply voltages and selectable quiescent currents. They are an ideal design tool when ultra low input current and low power dissipation are desired. The basic amplifier will operate at supply voltages ranging from ±1 to ±8V and may be operated from a single Lithium cell. The output swing ranges to within a few millivolts of the supply voltages. The quiescent supply current of these amplifiers is set to 100µA at the factory. This results in power consumption as low as 200µW per amplifier. Of particular significance is the extremely low (1pA) input current, input noise current of 0.01pA/�Hz and 1012R input impedance. These features optimize performance in very high source impedance applications.
- Input current lower than BIFETs 1pA (typical)
- Output voltage swing V+ and V-
- Low power replacement for many standard op amps
Portable Devices, Metering, Medical
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. Warnings ESD sensitive device, take proper precaution while handling the device.Other details
| Brand | RENESAS |
| Part Number | ICL7621DCPAZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
