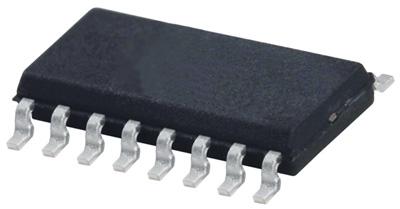

One microamp supply-current, +3V to +5.5V, 250Kbps, RS232 transmitter/receiver. It is suitable for use in any system requiring RS232 communication ports like battery powered, hand-held and portable equipment, laptop computers, notebooks, palmtops, cellular/mobile phones, digital cameras, modems, printers and other peripherals.
- 15KV ESD protected (Human Body Model)
- Drop in Replacements for MAX3232
- Low power upgrade for HIN232/ICL232 and pin compatible competitor devices
- RS232 compatible with VCC = 2.7V
- Meets EIA/TIA-232 and V.28/V.24 specifications at 3V
- Latch-up free
- On-chip voltage converters require only four external 0.1µF capacitors at VCC = 3.3V
- Receiver hysteresis for improved noise immunity
- Wide power supply range
- 1µA low supply current in power down state
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
Brand |
RENESAS |
Part Number |
ICL3232IBNZ |
Quantity |
Each |
Technical Data Sheet EN |
 |
Product Change Notice EN |
 |
