| ₹ 838.93 includes GST and import duties. | |
| B2B customers can avail ₹ 127.94 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

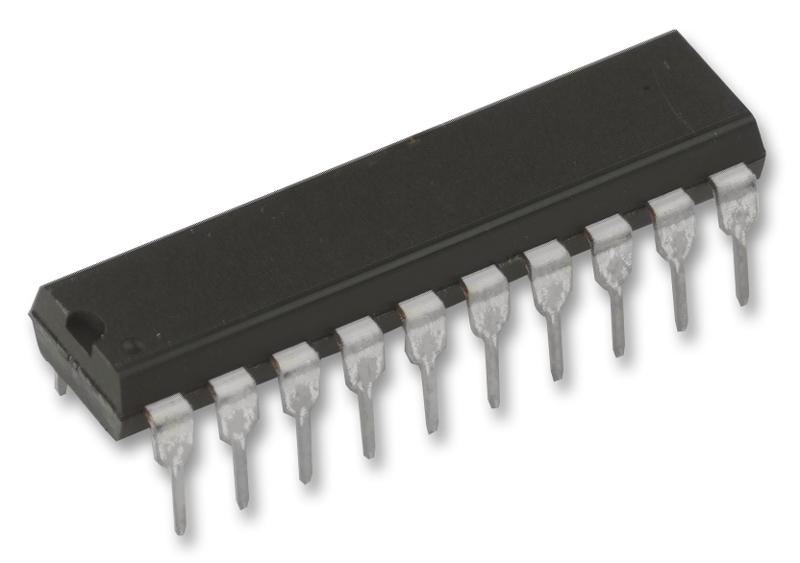

The HIP4081AIPZ is a high frequency, medium voltage Full-bridge N-channel FET Driver IC. It can drive every possible switch combination except those which would cause a shoot-through condition. This can switch at frequencies up to 1MHz and is well suited to driving voice coil motors, high-frequency switching power amplifiers and power supplies and can drive medium voltage brush motors. Short propagation delays of approximately 55ns maximizes control loop crossover frequencies and dead-times which can be adjusted to near zero to minimize distortion, resulting in rapid, precise control of the driven load.
- Independently drives 4 N-channel FET in full-bridge configurations
- 95VDC Bootstrap supply maximum voltage
- Drives 1000pF load at 1MHz in free air at 50°C
- User-programmable dead time
- On-chip Charge-pump and bootstrap upper bias supplies
- DIS (disable) overrides input control
- Very low power consumption
- Under voltage protection
Power Management, Automotive, Motor Drive & Control
Warnings Stresses those listed in absolute maximum ratings may cause permanent damage to the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | RENESAS |
| Part Number | HIP4081AIPZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 822.15 |
| 3-5 | ₹ 813.76 |
| 5-10 | ₹ 796.98 |
| 10+ | ₹ 780.2 |
Bulk discount will be automatically applied during checkout based on quantity.
