| ₹ 19110.0 includes GST and import duties. | |
| B2B customers can avail ₹ 2914.28 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

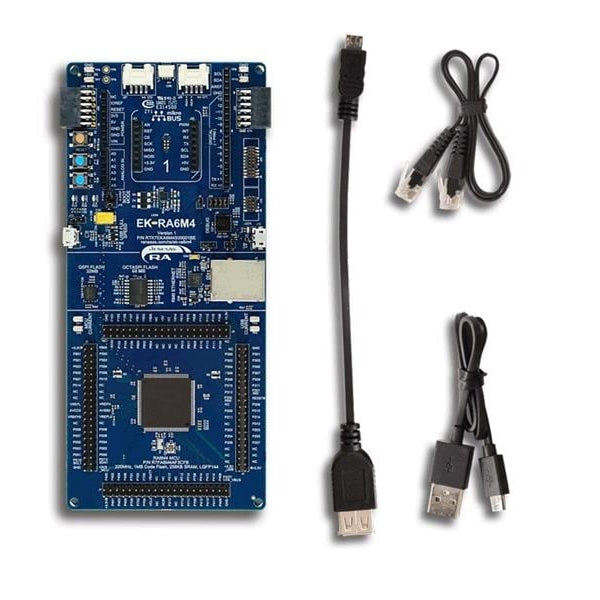

Renesas Electronics RA6M4 Evaluation Kit is designed to evaluate RA6M4 32-bit ARM® microcontroller including on-chip debugger.
Features & Specs
- 200MHz Arm® Cortex®-M33 core with Trustzone
- 8kB data flash to store data as in EEPROM
- 1kB stand-by SRAM
- Scalable from 64-pin to 144-pin packages
- Capacitive touch sensing unit
- 512kB to 1MB flash memory and 192kB SRAM with parity and 64kB SRAM with ECC
- Integrated security crypto module with several Cryptography accelerator includes:
- Accelerators
- Key management support
- Tamper detection
- Power analysis resistance
- Large 256kB embedded SRAM with parity / ECC and also 1kB standby RAM for low power apps and strong safety
- Dual-bank-flash with background operation
- Ethernet controller with Direct Memory Access (DMA)
- USB2.0 full speed
- CAN 2.0B
- QuadSPI and OctaSPI
- Serial Communications Interface (SCI) (UART, Simple Serial Peripheral Interface (SPI), and simple I2C)
- SPI/ I2C multimaster interface
- Secure Digital Host Interface (SDHI) and MMC
Features & Specs
- 200MHz Arm® Cortex®-M33 core with Trustzone
- 8kB data flash to store data as in EEPROM
- 1kB stand-by SRAM
- Scalable from 64-pin to 144-pin packages
- Capacitive touch sensing unit
- 512kB to 1MB flash memory and 192kB SRAM with parity and 64kB SRAM with ECC
- Integrated security crypto module with several Cryptography accelerator includes:
- Accelerators
- Key management support
- Tamper detection
- Power analysis resistance
- Large 256kB embedded SRAM with parity / ECC and also 1kB standby RAM for low power apps and strong safety
- Dual-bank-flash with background operation
- Ethernet controller with Direct Memory Access (DMA)
- USB2.0 full speed
- CAN 2.0B
- QuadSPI and OctaSPI
- Serial Communications Interface (SCI) (UART, Simple Serial Peripheral Interface (SPI), and simple I2C)
- SPI/ I2C multimaster interface
- Secure Digital Host Interface (SDHI) and MMC
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 18727.8 |
| 3-5 | ₹ 18536.7 |
| 5-10 | ₹ 18154.5 |
| 10+ | ₹ 17772.3 |
Bulk discount will be automatically applied during checkout based on quantity.
