| ₹ 513.78 includes GST and import duties. | |
| B2B customers can avail ₹ 78.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

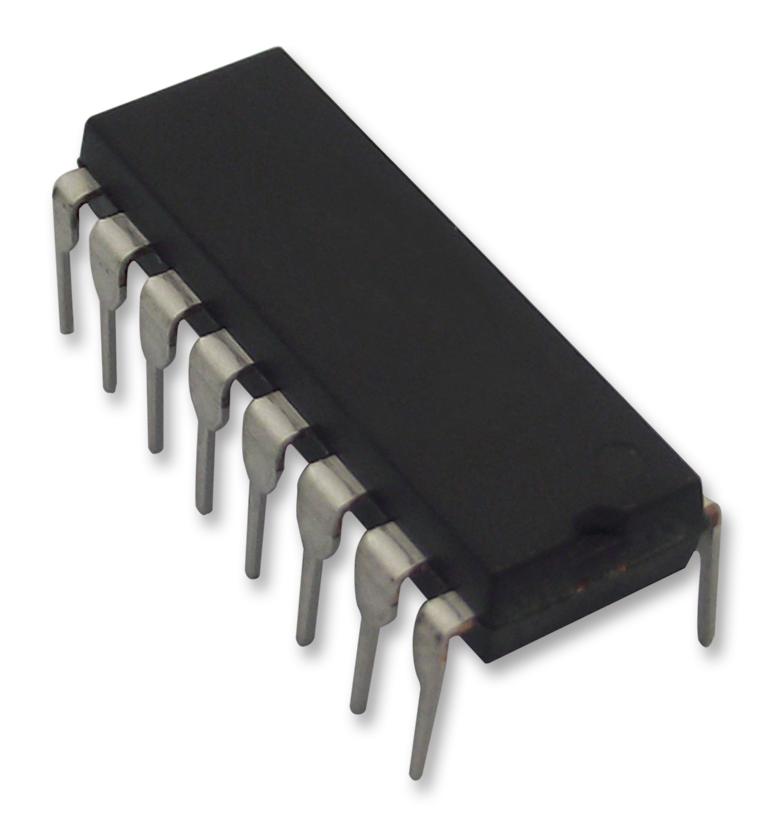

The DG408DJZ is a single 8-channel, monolithic CMOS Analog Multiplexers are drop-in replacements for the popular DG508A and DG509A series devices. They each include an array of eight analog switches, a TTL/CMOS compatible digital decode circuit for channel selection, a voltage reference for logic thresholds and an ENABLE input for device selection when several multiplexers are present. The device feature lower signal ON resistance (<250ns). Charge injection has been reduced, simplifying sample and hold applications. An epitaxial layer prevents the latch-up associated with older CMOS technologies. The analog switches are bilateral, equally matched for AC or bidirectional signals. The ON resistance variation with analog signals is quite low over a ±5V analog input range.
- <11mW Low power consumption (PD)
- <250ns Fast switching action
- <150ns tON/OFF(EN)
- Low charge injection
- Single or split supply operation
Signal Processing, Communications & Networking, Audio
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | RENESAS |
| Part Number | DG408DJZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 503.5 |
| 3-5 | ₹ 498.37 |
| 5-10 | ₹ 488.09 |
| 10+ | ₹ 477.82 |
Bulk discount will be automatically applied during checkout based on quantity.
