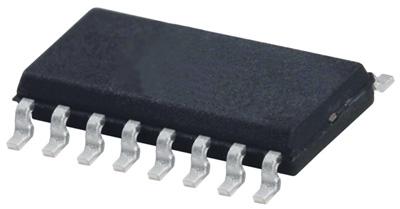

Renesas DG403DYZ DG403DYZ Analogue Switch Dual Channel 2 Channels Spdt 45 ohm 5V to 34V Soic 16 Pins

The DG403DYZ is a Monolithic CMOS Analogue Switch have TTL and CMOS compatible digital inputs. These switches feature low analogue ON resistance (<45R) and fast switch time (tON<150ns). Low charge injection simplifies sample and hold applications. The improvements in the DG403 series are made possible by using a high voltage silicon-gate process. An epitaxial layer prevents the latch-up associated with older CMOS technologies. The 44V maximum voltage range permits controlling 30VP-P signals. Power supplies may be single-ended from +5 to +34V or split from ±5 to ±17V. The analogue switches are bilateral, equally matched for AC or bidirectional signals. The ON resistance variation with analogue signals is quite low over a ±15V analogue input range. The three different devices provide the equivalent of two SPDT (DG403) relay switch contacts with CMOS or TTL level activation. The pinout is similar, permitting a standard layout to be used, choosing the switch function as needed.

• <35µW Low power consumption (PD)
• 150ns tON (maximum), 100ns tOFF (maximum) Fast switching action
• Low charge injection
• Dual SPDT - DG190, IH5043, IH5151, HI-5051
• TTL, CMOS compatible
• Single or split supply operation

Applications

Audio, Communications & Networking, Test & Measurement
