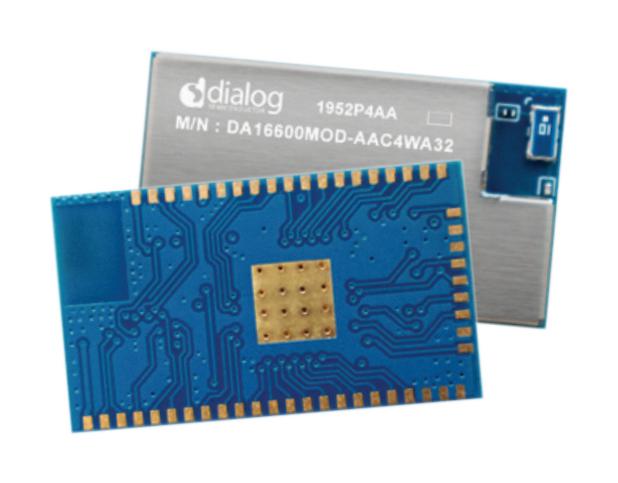

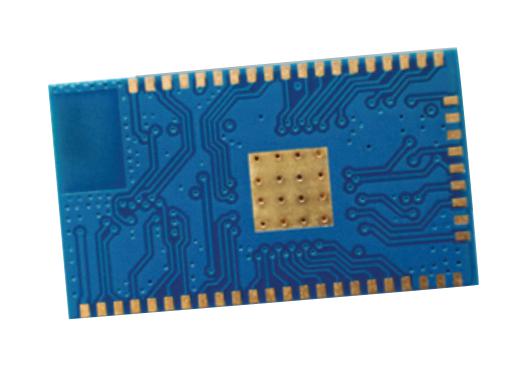

DA16600 is a ultra low power Wi-Fi ® + BLE Modules for battery powered IoT applications. The fully integrated module consists of DA16200 Wi-Fi SoC, DA14531 BLE SoC, 4MB flash memory, 40MHz crystal for Wi-Fi, 32KHz RTC crystal for Wi-Fi, 32MHz crystal for BLE, Chip antenna and SPDT antenna switch.
- Single power supply voltage (3.3V)
- SoC runs full OS & TCP/IP stack on module
- Simple setup & provisioning
- Comprehensive networking software stack
- Leading security
- Enables field deployed device firmware updates
- UART, SPI, ADC, I2 C, PWM, I2 S, GPIOs, JTAG and SWD I/Os
- 14.2 mm x 24.6 mm x 3.0 mm dimension
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
RENESAS |
| Part Number |
DA16600MOD-AAC4WA32 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
