Description
Product Overview

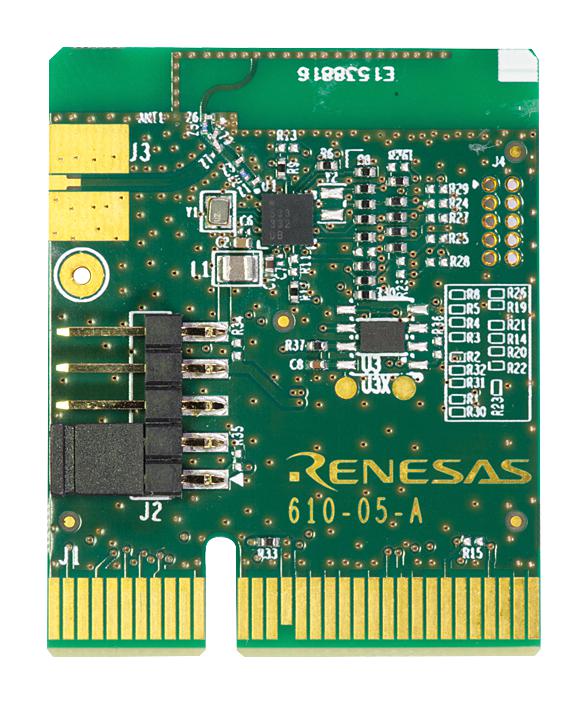

DA14533-00RNDB-P is a SmartBond TINY DA14533 Bluetooth Low Energy SoC development Kit Pro daughterboard. This daughterboard designed for use with the DA14533-00RNDEVKT-P development kit. It can be easily attached to the motherboard of the DA14533-00RNDEVKT-P. The daughterboard is mounted with a DA14533 Bluetooth® SoC.
- AEC-Q200 qualified 32MHz crystal
- AEC-Q100 qualified 2Mbit flash IC
- RF matching and embedded printed antenna
- PCB placeholder for CR2032 battery clip
- Onboard JTAG connector, PCB placeholder for RF coaxial connector
- PCB placeholder for 32kHz crystal
- Onboard place holder of a 2Mbit SPI data flash for DA14531, DA14533 and DA14535
- Current measurement port to connect external measurement equipment
Product details
Other details
| Brand | RENESAS |
| Part Number | DA14533-00RNDB-P |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3012.91 |
| 3-5 | ₹ 2982.17 |
| 5-10 | ₹ 2920.68 |
| 10+ | ₹ 2859.19 |
Bulk discount will be automatically applied during checkout based on quantity.
