- Compact Design
- Volt and Amp Metering
- Integral Cable
- Low Battery Warning
- Mounting Strips and Steel Clip Included
The RMv2 Remote Meter for Battery Distribution Systems from Remote Audio provides convenient volt and amp metering for the BDSv3, MEONv2, Hot Strip, and Shunt Box. The RMv2 also acts as an On/Off controller. Unlike its predecessor, which required a separate cable, the RMv2 has an integral 4' cable with a 6-pin Lemo style circular push-pull locking connector that is keyed to be inserted in one way. This provides quick and easy connection to your primary device.

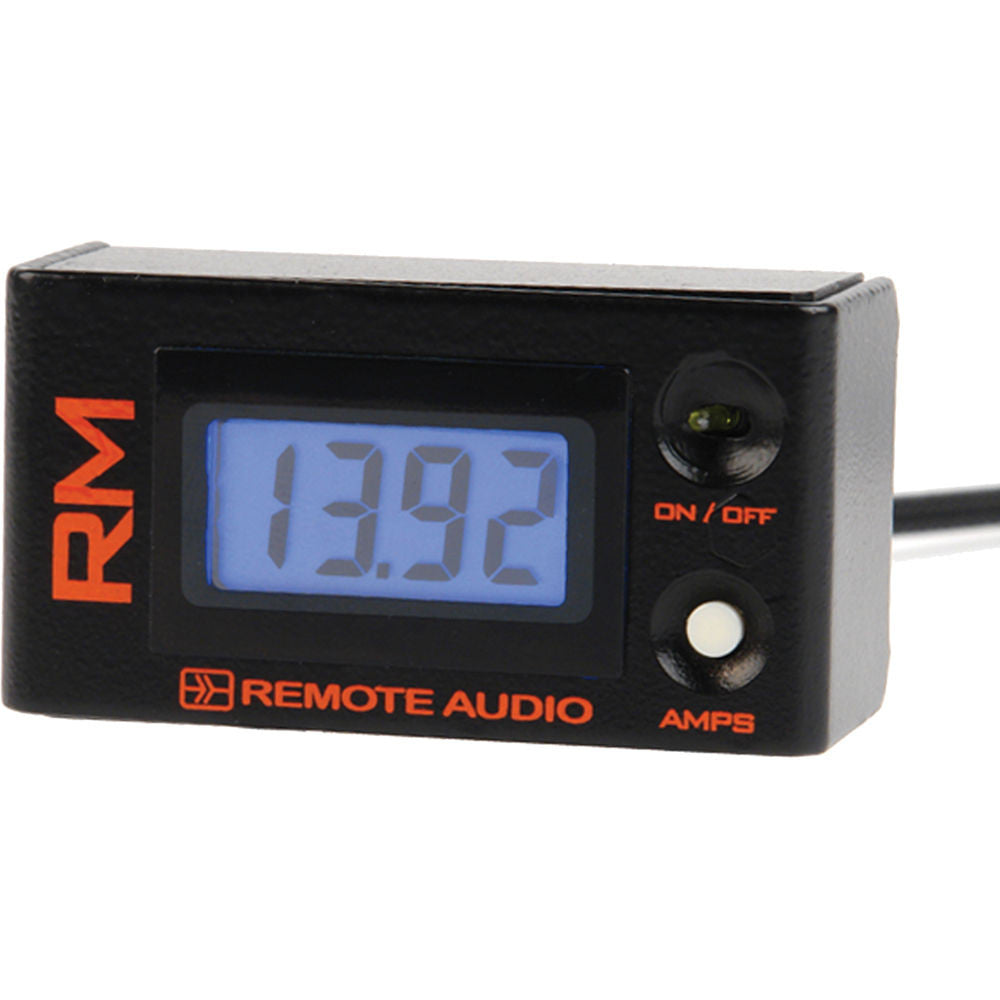

The RMv2 has a clear LCD readout display, and also provides a low battery warning. It includes mounting strips and a removable steel clip so you can mount it for convenient monitoring and on/off control. The unit is easy to use. Simply connect it to your device and flip the toggle switch to "on". Voltage is displayed by default, and you can press and hold the "AMPS" button to display the current draw in Amps.
- Provides convenient volt and amp metering, plus On/Off control for the BDSv3, MEONv2, Hot Strip, and Shunt Box

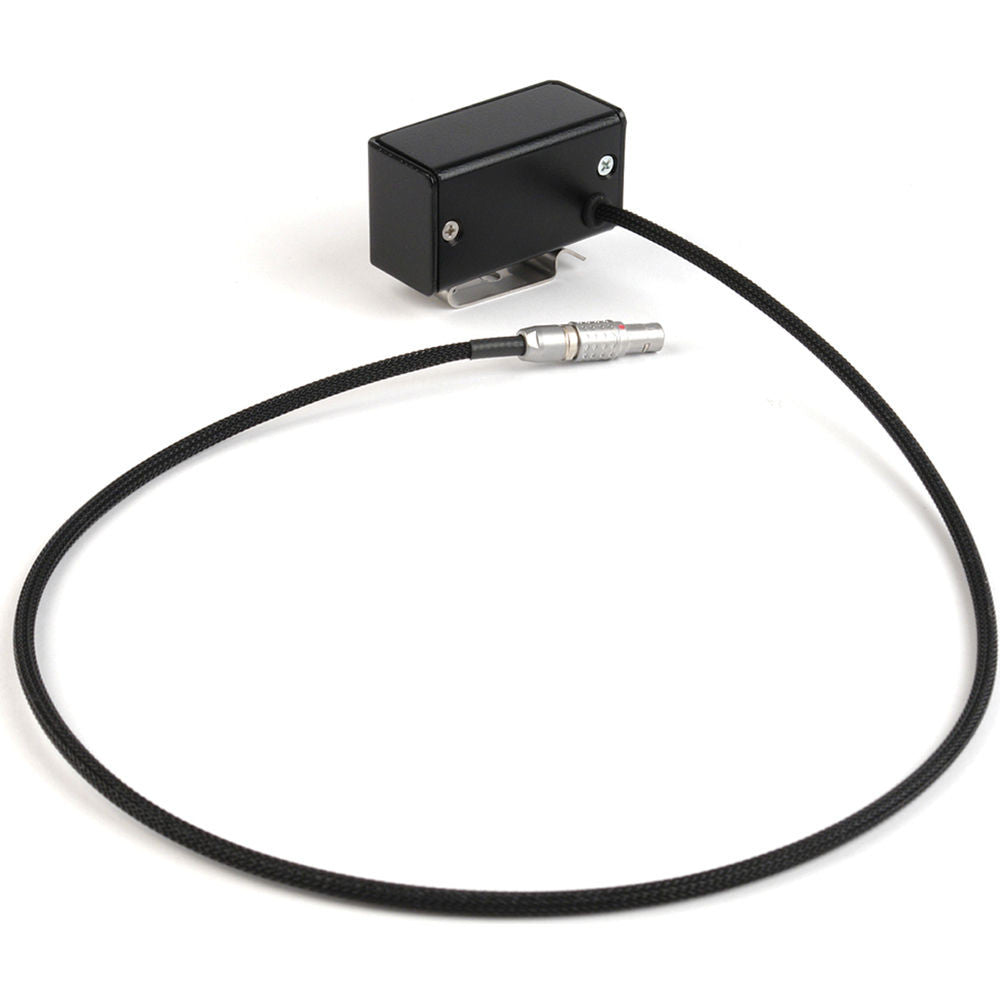

- The integral 4' cable has a 6-pin Lemo style circular push-pull locking connector that is keyed to be inserted in one way. This provides quick and easy connection to your primary device
- The unit has a clear LCD readout display, and also provides a low battery warning

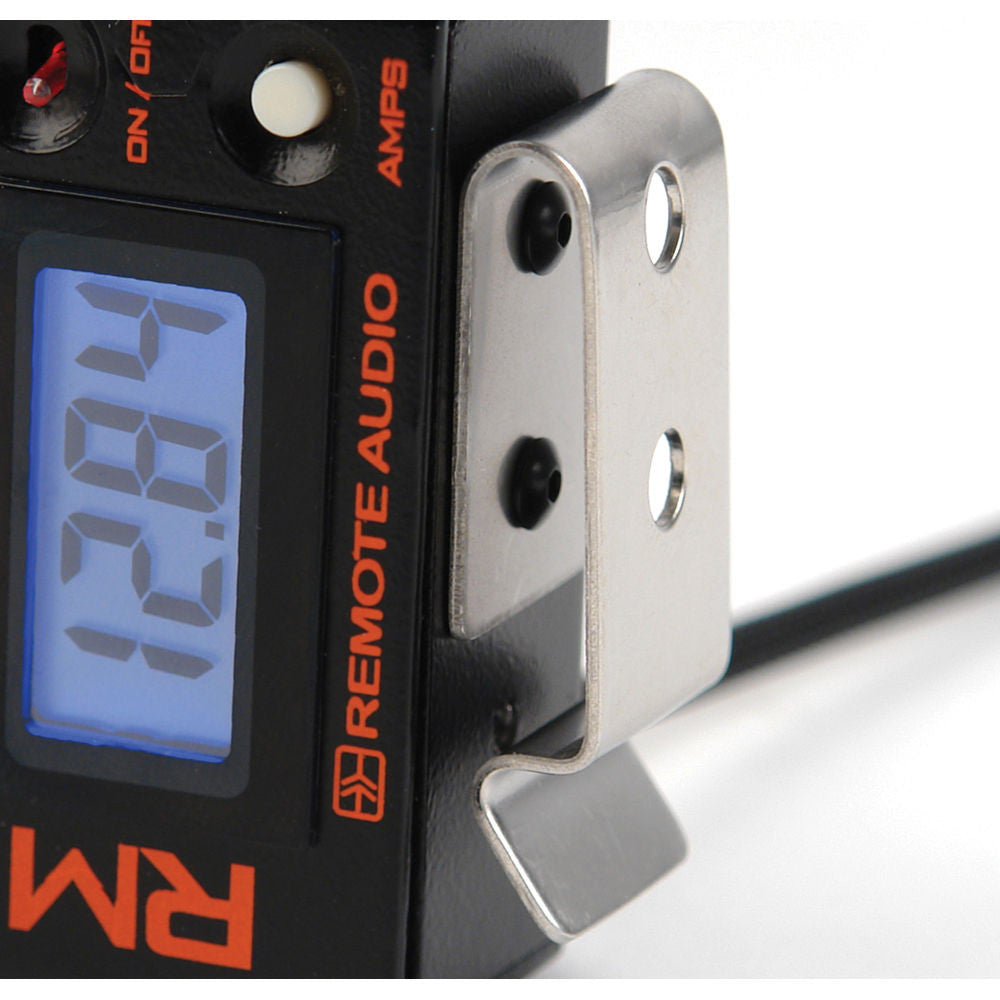

- The small size and included mounting strips and removable steel clip allow you to mount the RMv2 for convenient monitoring and on/off control
- Voltage is displayed by default, and you can press and hold the "AMPS" button to display the current draw in Amps
In the Box
Remote Audio RMv2 Remote Meter for Battery Distribution Systems (4' Cable)
- Mounting Strips
- 4' Cable
- Steel Clip
- 1-Year Limited Warranty
| Cable Length | 4' (1.2 m) |
| Connector | 6-Pin Lemo Style Circular Push-Pull Locking Connector |
| Voltage Requirements | 9 - 20 VDC |
| Current Draw | ~20 mA |
| Dimensions | 1 x 1.3 x 2.3" (25 x 33 x 58mm) |
| Weight | Not Specified by Manufacturer |
