Description
Remote Audio REM BDSHQCS2 Overview

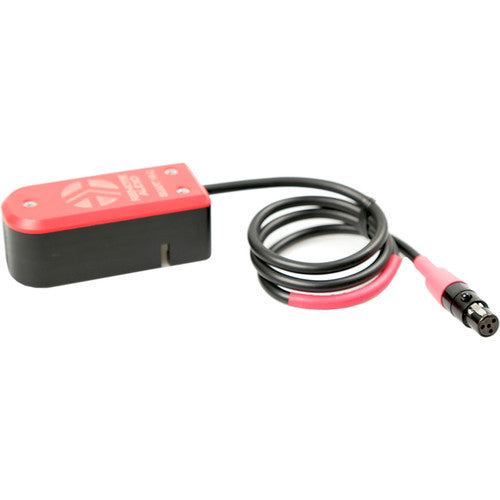

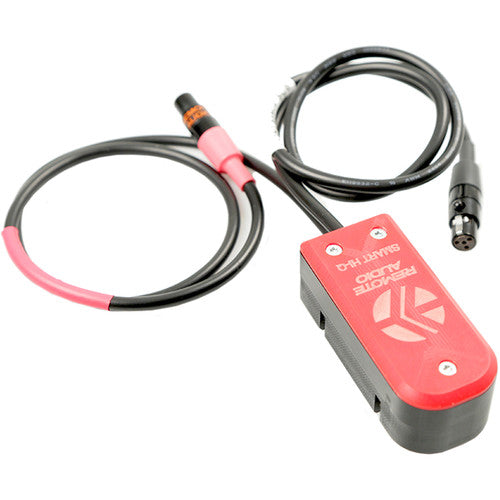

The Remote Audio REM BDSHQCS2 is a connector cable with a Hi-Q cup at one end and two TA4F-B connectors at the other end. But what does this mean?
Well, the Remote Audio's line of Meon power supplies now forsake NP-1 batteries for Hi-Q smart batteries; these smart batteries use sophisticated circuitry to balance the charging and discharging of internal cells for an increased performance over conventional lithium NP-1 batteries.

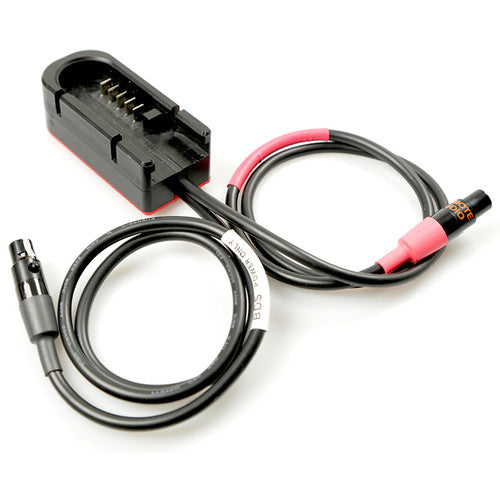

The Hi-Q cup provided in this connector allows you to seat the aforementioned battery. One TA4F-B termination facilitates connection to the Sound Devices Scorpio, 888, and 833 portable mixer-recorders. The other TA4F-B connection can power BDSv4, BDSv4U, and earlier DBS distribution boxes.
Additional Features
- Hi-Q Smart Battery to 2 x TA4F-B connections
- 4-wire configuration for power and smart-battery telemetry
- 2-wire configuration for compatibility with BDSv4, BDSv4U, and earlier DBS systems
- Compatible with Sound Devices Scorpio, 888, and 833 portable mixer-recorders
In the Box
- Remote Audio REM BDSHQCS2 to 2 x TA4F-B Connector Cable for Sound Devices & BDS Distribution Boxes
- Limited 1-Year Warranty
Remote Audio REM BDSHQCS2 Specs
For Use with | Hi-Q Smart Batteries Sound Devices Scorpio, 888, and 833 Portable Mixer-Recorders < span> |
Configuration | Battery Cup Configuration: 5-Pin |
Pins | TA4F-B 1 (Black Connector Boot) Pin-1: GND Pin-2: N.C. Pin-3: N.C. Pin-4: V+ TA4F-B 2 (Red Connector Boot) Pin-1: GND Pin-2: Smart Battery DATA Pin-3: Smart Battery CLOCK Pin-4: V+ |
Connector | 2 x TA4F-B |
Cable Length | 18" / 45.7 cm |
Dimensions | Hi-Q Cup: 2.8 x 1.3 x 1.1" / 7.2 x 3.2 x 2.7 cm |
Package Weight | 0.245 lb |
Box Dimensions (LxWxH) | 7.85 x 3.15 x 1.6" |
