RED DIGITAL CINEMA V-RAPTOR XE Cine Essentials Pack (Nikon Z)

The V-RAPTOR XE 8K VV Camera from RED DIGITAL CINEMA delivers the 8K global shutter and compact design of the V-RAPTOR X, while focusing on the core features essential to modern filmmaking. Built on RED's DSMC3 platform, the XE provides a large-format VV sensor in a lightweight 4 lb body, capturing 8K video in up to 60 fps with 17+ stops of dynamic range. Balancing high-end performance with class-leading value, the XE omits advanced Global Vision features like Phantom Track and Extended Highlights, but retains the same image quality, workflow flexibility, and robust connectivity that define RED's V-RAPTOR line.

Filmmakers benefit from the global shutter, advanced autofocus with face detection, simultaneous ProRes proxy recording, and dual 12G-SDI outputs for discrete monitoring. Compact, rugged, and ready for a variety of rig configurations, the XE is a cost-effective solution for productions requiring RED's flagship sensor technology.

The 35.4MP large-format VV sensor features a global shutter, eliminating the artifacts produced by rolling shutters in scenes with rapid motion or flashing lights. The XE ensures distortion-free motion capture while maintaining full detail, contrast, and dynamic range across every frame. Providing a multitude of resolution and frame-rate options, the camera captures 17:9 footage up to 8192 x 4320 when utilizing its entire VV sensor.

• 8K up to 60 fps
• 6K up to 80 fps
• 5K up to 96 fps
• 4K up to 120 fps
• 2K up to 240 fps

Powered by in-camera processing, on-sensor phase detection, and advanced face detection, the V-RAPTOR XE provides all levels of filmmakers with precise, automatic focus control in a wide range of environments.

The V-RAPTOR XE delivers 17+ stops of dynamic range, with REDCODE Raw preserving fine detail in both extreme highlights and deep shadows. With class-leading performance in low light, the XE maintains saturation in shadows while reducing fixed pattern noise.

Sporting a single CFexpress Type B card slot, the XE records internally to a compatible media card with data rates topping out at 800 MB/s. With support for REDCODE Raw HQ recording, the XE ensures post-production flexibility for color grading, cropping, and visual effects. Simultaneous proxy recording and alternative format options ensure smooth integration with existing workflows.

• R3D format ensures maximum latitude and post-production flexibility
• Simultaneous ProRes proxy recording for a streamlined editorial process
• Dedicated ProRes 4444 XQ recording up to 4K120

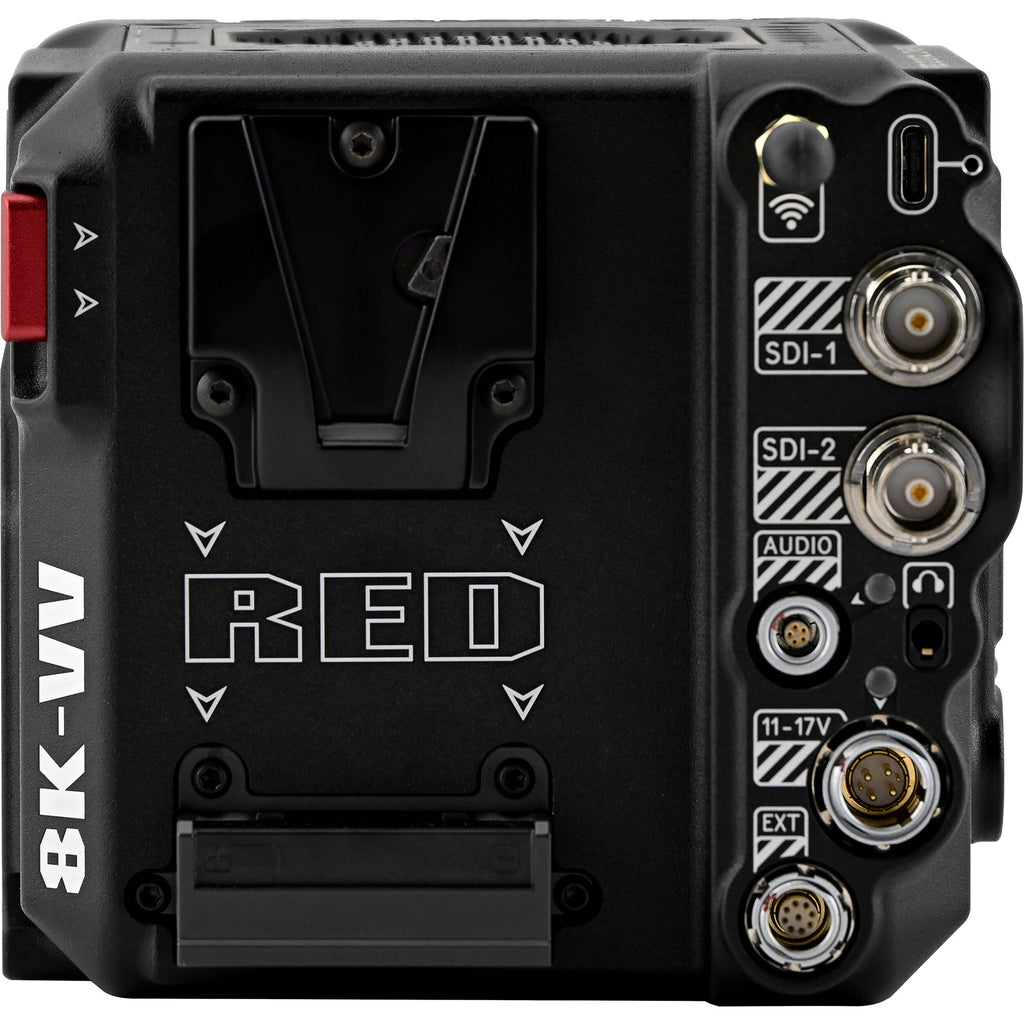

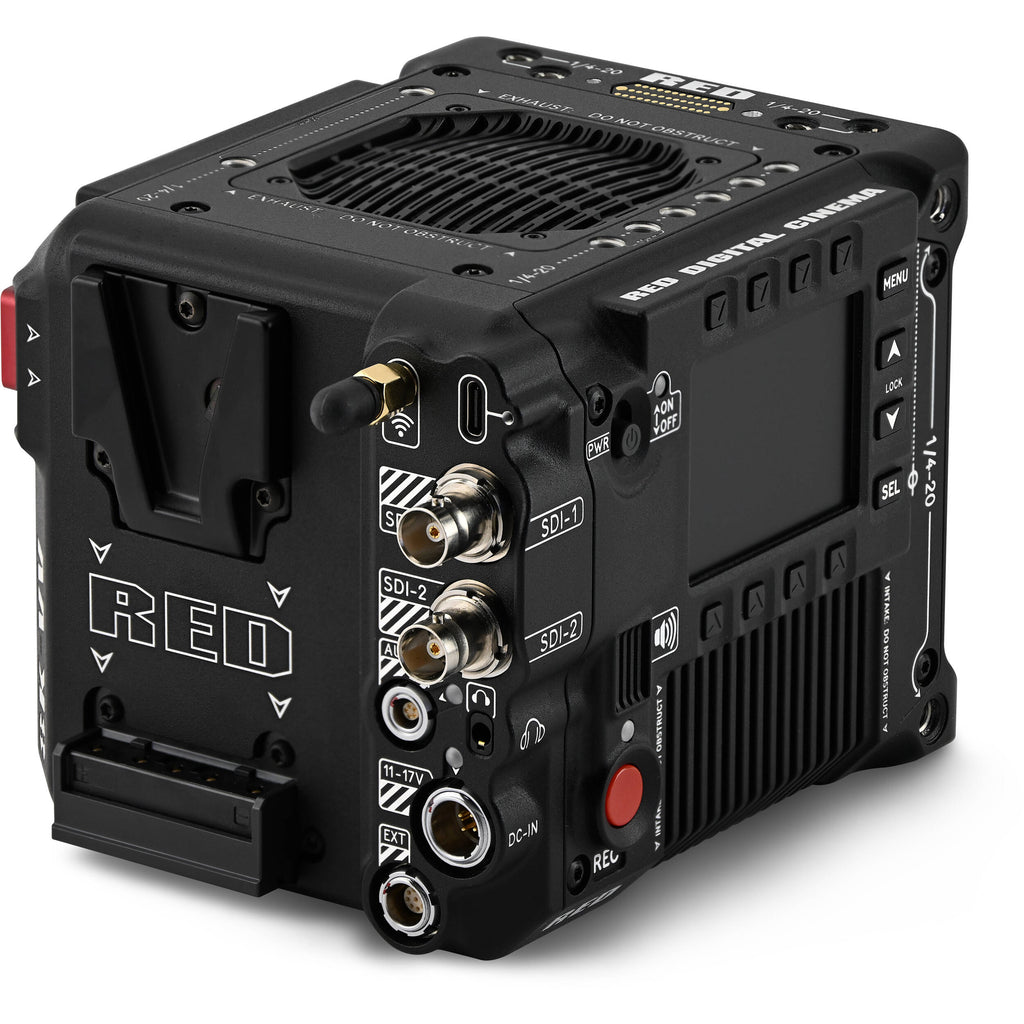

With multiple monitoring outputs and comprehensive on-body controls, the XE ensures efficient operation on set and in the field. Built into the right side of the camera, the control interface features a 2.4" LCD screen with easily navigable menus, providing an AC or camera operator with comprehensive control over in-camera format selection and other important functions. Dual 12G-SDI ports deliver unique monitoring views, while a USB-C port outputs data at up to 250 MB/s.

Supporting both wired and wireless IP connectivity, the XE allows cloud-based collaboration and app-based remote camera control. When used with RED's Z to PL Adapter with electronic ND filters, the XE allows ND strength to be continuously adjusted over Wi-Fi in fine increments of 1/100 of a stop.

• Direct integration with Frame.io and AWS (Amazon Web Services)
• Compatible with RED Control and RED Control Pro Apps for wireless monitoring and operation
• Adjust camera settings from remote locations via Wi-Fi connection

Sharing the same form factor as the V-RAPTOR X, the XE's lightweight 4 lb aluminum alloy body ensures durability without sacrificing mobility. Its advanced thermal management system maintains the camera's optimal internal temperature, preventing both overheating and overcooling.

The V-RAPTOR Z to PL with Electronic ND Filter Adapter Pack from RED lets you use cine-style ARRI PL-mount lenses with your V-RAPTOR Z mount camera and easily adjust your exposure two to seven stops. The titanium-core adapter transmits Cooke /i data and record triggering, can be shimmed, and is temperature resistant.

• This robust mount enables consistent, precise back focus whether you're using the ND or the clear filter.
• Please note that existing RED V-RAPTOR RF to PL or V-RAPTOR Z to PL adapter users should contact RED directly about purchasing just the Z to PL with ND adapter without the ribs or support brackets.
• Please note that this adapter is only compatible with the V-RAPTOR Z mount camera.

• Use the variable neutral density filter to reduce your exposure by 2 to 7 stops. Adjusting your image brightness can be done independently of your camera and lens.
• This enables more flexible exposure and depth of field control while recording video without stopping down on your lens or adjusting your shutter speed.
• The ND filter is paired with a clear filter of the same thickness so that your back focus remains the same when you don't need to use the ND.

• This lens adapter pack also includes PL support brackets.
• The brackets add rigidity, providing native mount-like support.

Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m? brightness.

A rigid hinge system enables you to apply greater pressure when positioning the Touch for reliable viewing.

A 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging.

Runs SmallHD PageOS software that provides full camera control. Features include waveform, vectorscope, histogram, false color, color picker, pixel zoom, and additional functions.

Mounts directly onto the BRAIN using the Pogo mount.

USB-C connector is used for video, data, and power.

Key Specs

Imaging
