RED DIGITAL CINEMA V-RAPTOR XE Cine Essentials Pack (Canon RF)

Roll over image to zoom in

RED DIGITAL CINEMA V-RAPTOR XE Cine Essentials Pack (Canon RF)


	₹ 3087295.0 includes GST and import duties.
	B2B customers can avail ₹ 470812.49 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	RED DIGITAL CINEMA
SKU:	7263119245397
MPN:	710-0450
UPC/HSN:	810016945925

Share this product

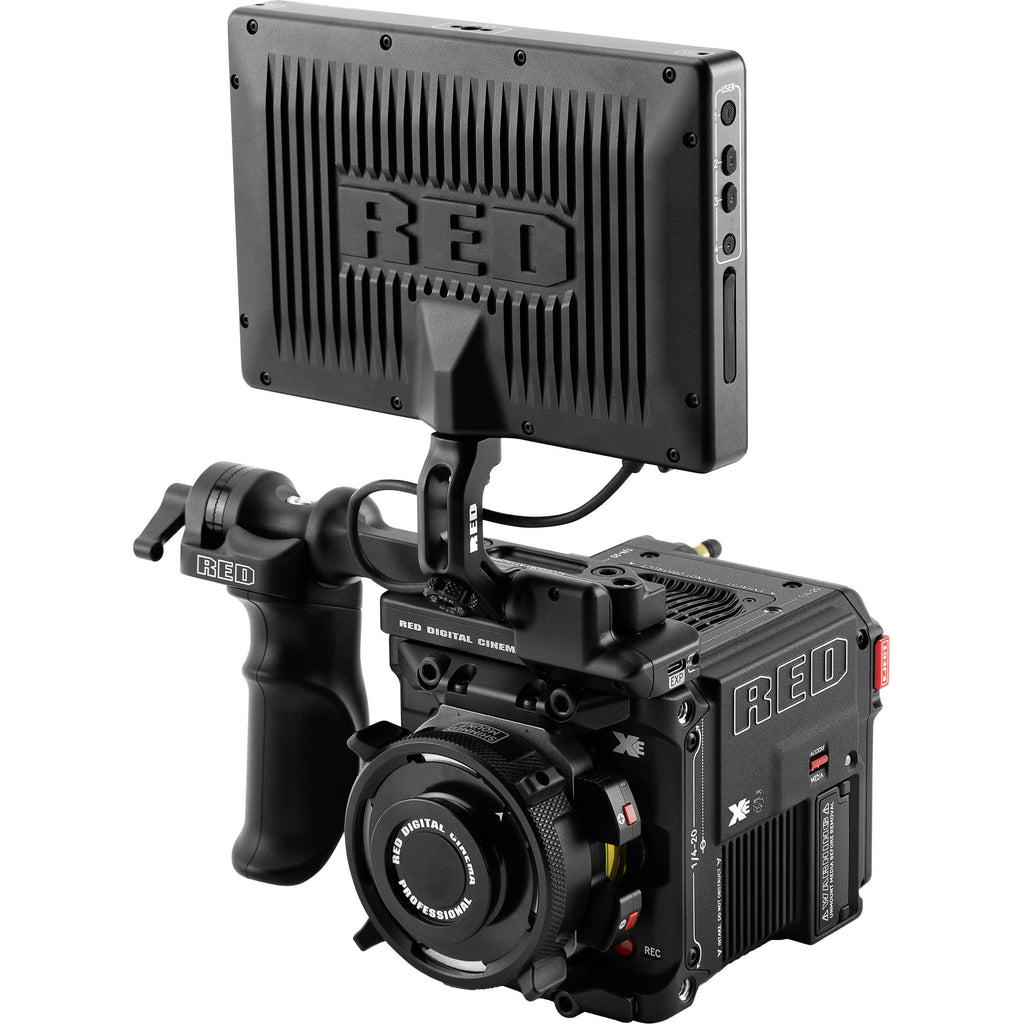

Kit Contains:

RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Canon RF)

RED DIGITAL CINEMA V-RAPTOR RF to PL Adapter with Electronic ND Filter Pack

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

RED DIGITAL CINEMA KOMODO Outrigger Handle

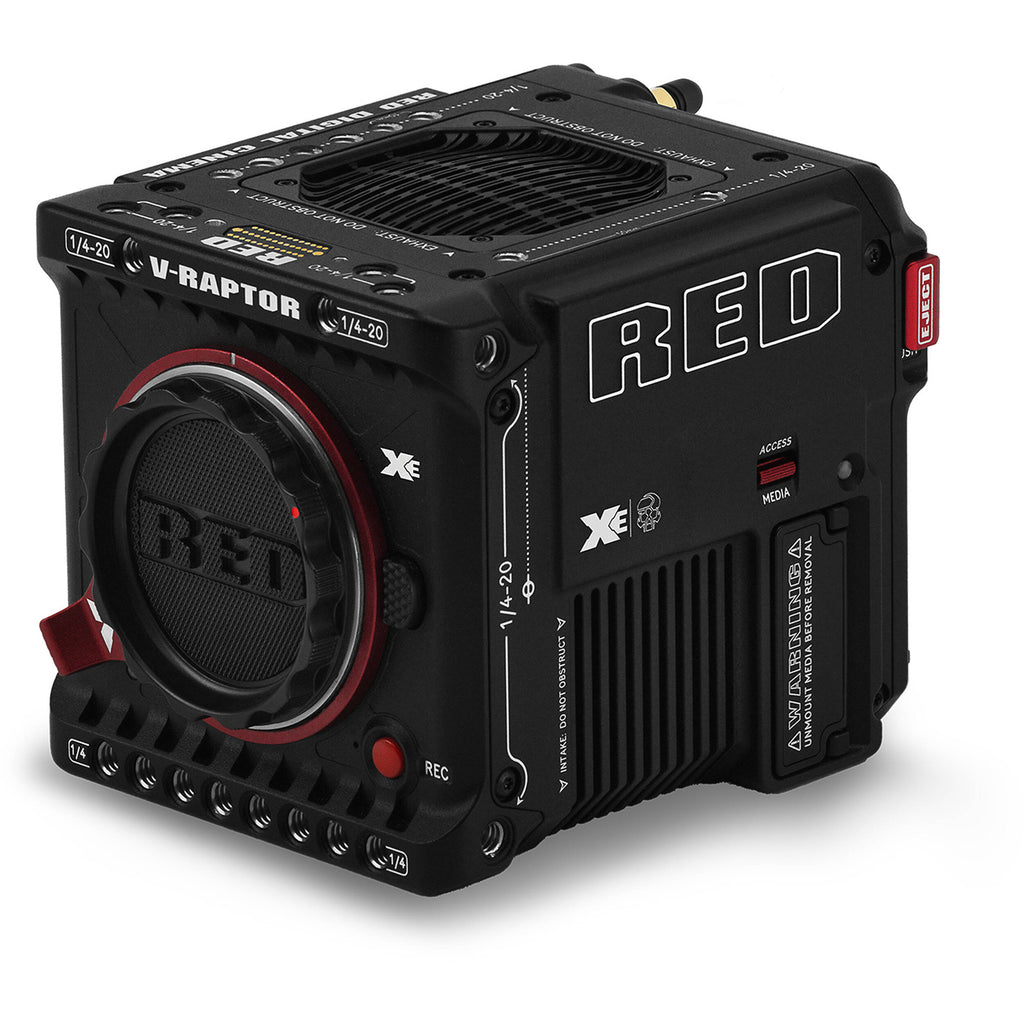

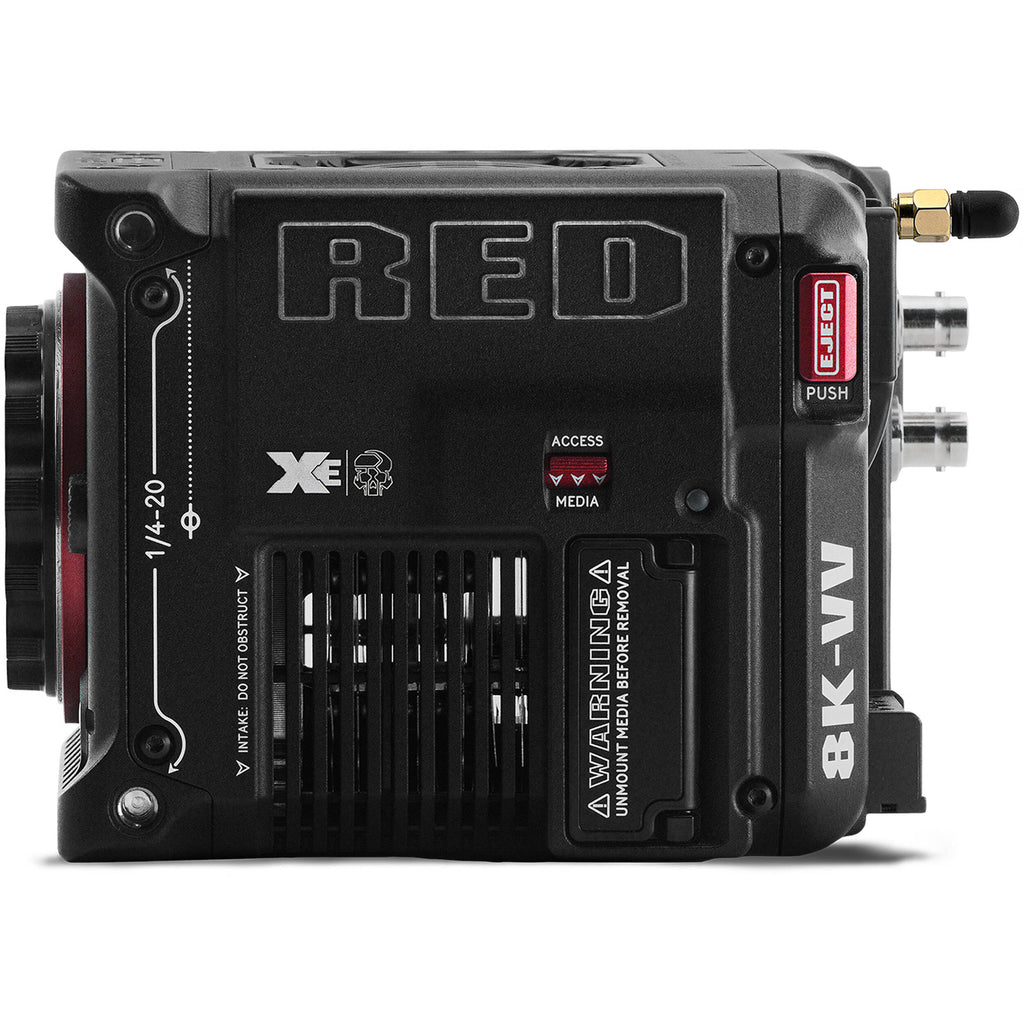

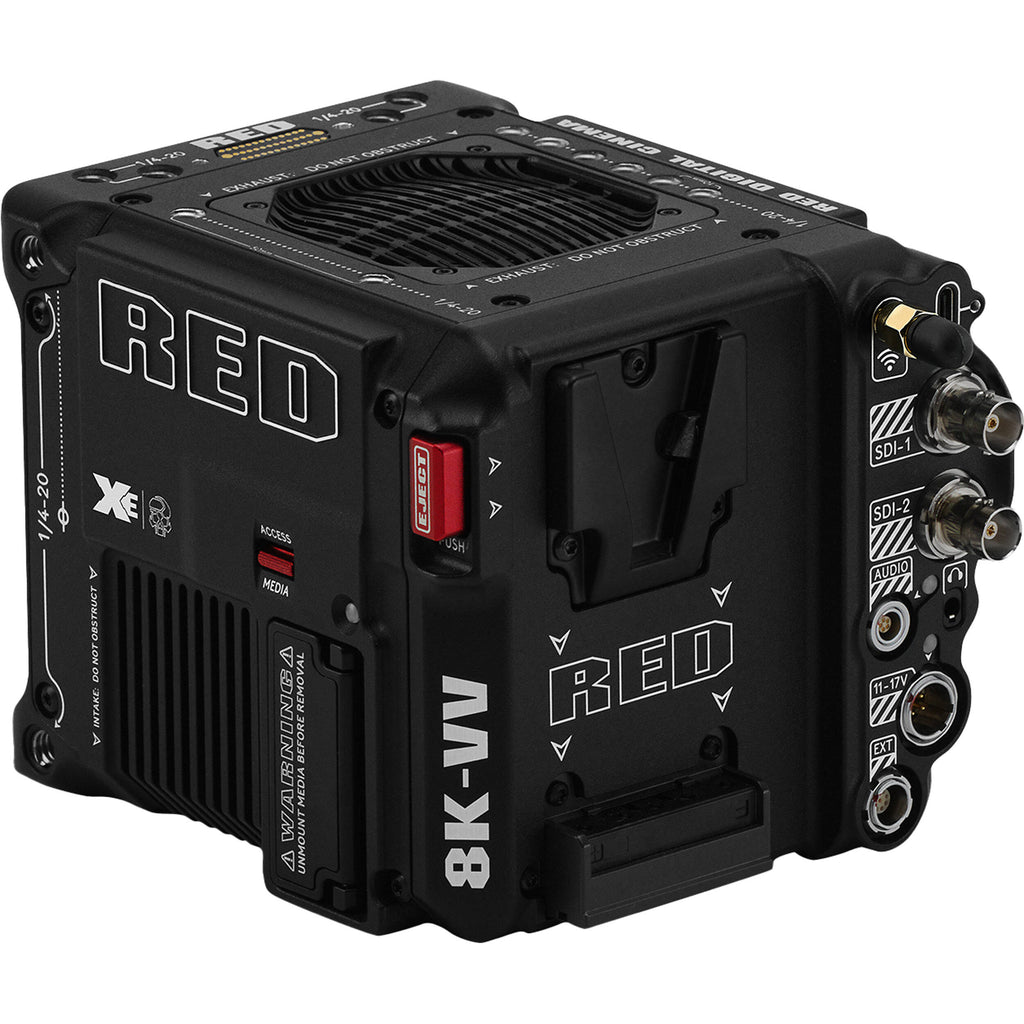

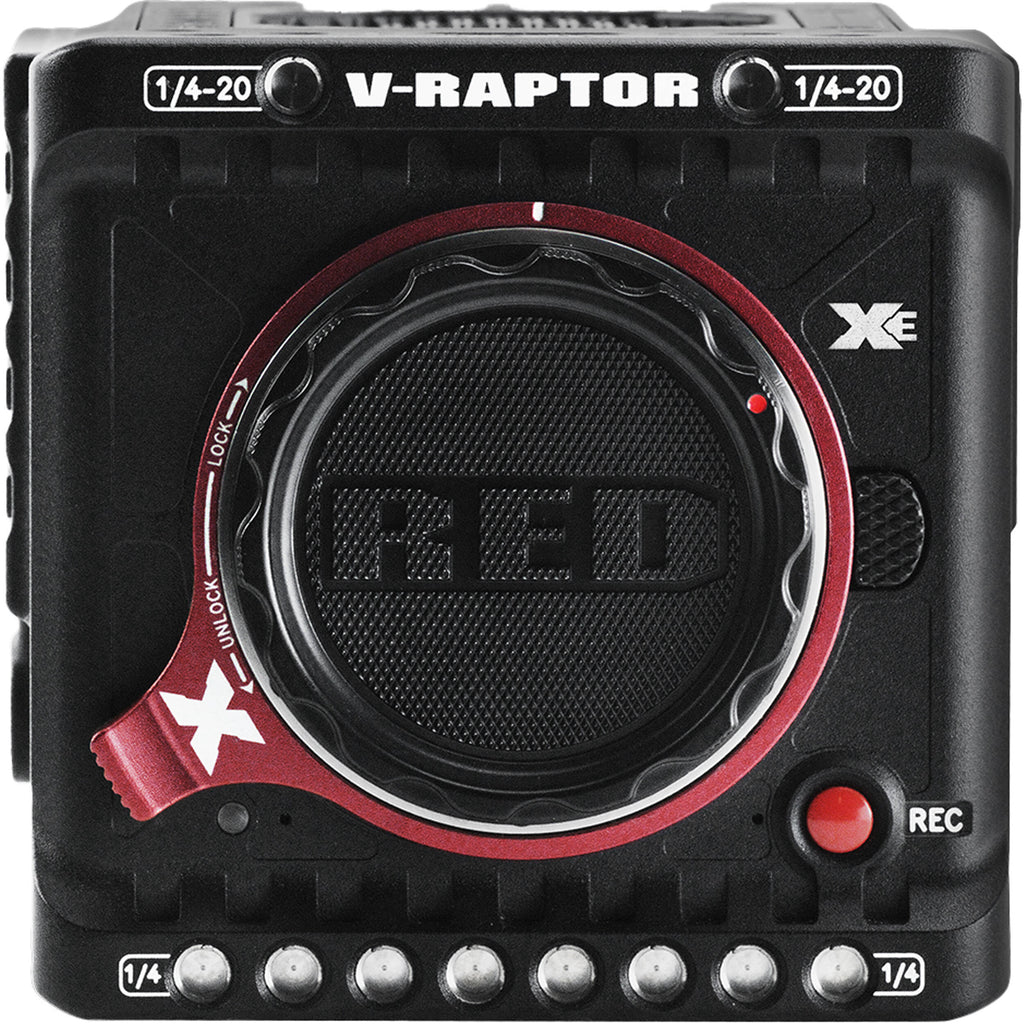

RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Canon RF)

Flagship Image Quality, Streamlined for Essentials

The V-RAPTOR XE 8K VV Camera from RED DIGITAL CINEMA delivers the 8K global shutter and compact design of the V-RAPTOR X, while focusing on the core features essential to modern filmmaking. Built on RED's DSMC3 platform, the XE provides a large-format VV sensor in a lightweight 4 lb body, capturing 8K video in up to 60 fps with 17+ stops of dynamic range. Balancing high-end performance with class-leading value, the XE omits advanced Global Vision features like Phantom Track and Extended Highlights, but retains the same image quality, workflow flexibility, and robust connectivity that define RED's V-RAPTOR line.

Filmmakers benefit from the global shutter, advanced autofocus with face detection, simultaneous ProRes proxy recording, and dual 12G-SDI outputs for discrete monitoring. Compact, rugged, and ready for a variety of rig configurations, the XE is a cost-effective solution for productions requiring RED's flagship sensor technology.

8K VV Sensor with Global Shutter

The 35.4MP large-format VV sensor features a global shutter, eliminating the artifacts produced by rolling shutters in scenes with rapid motion or flashing lights. The XE ensures distortion-free motion capture while maintaining full detail, contrast, and dynamic range across every frame. Providing a multitude of resolution and frame-rate options, the camera captures 17:9 footage up to 8192 x 4320 when utilizing its entire VV sensor.

8K up to 60 fps
6K up to 80 fps
5K up to 96 fps
4K up to 120 fps
2K up to 240 fps

Intelligent Autofocus

Powered by in-camera processing, on-sensor phase detection, and advanced face detection, the V-RAPTOR XE provides all levels of filmmakers with precise, automatic focus control in a wide range of environments.

Dynamic Range

The V-RAPTOR XE delivers 17+ stops of dynamic range, with REDCODE Raw preserving fine detail in both extreme highlights and deep shadows. With class-leading performance in low light, the XE maintains saturation in shadows while reducing fixed pattern noise.

Flexible Video Recording

Sporting a single CFexpress Type B card slot, the XE records internally to a compatible media card with data rates topping out at 800 MB/s. With support for REDCODE Raw HQ recording, the XE ensures post-production flexibility for color grading, cropping, and visual effects. Simultaneous proxy recording and alternative format options ensure smooth integration with existing workflows.

R3D format ensures maximum latitude and post-production flexibility
Simultaneous ProRes proxy recording for a streamlined editorial process
Dedicated ProRes 4444 XQ recording up to 4K120

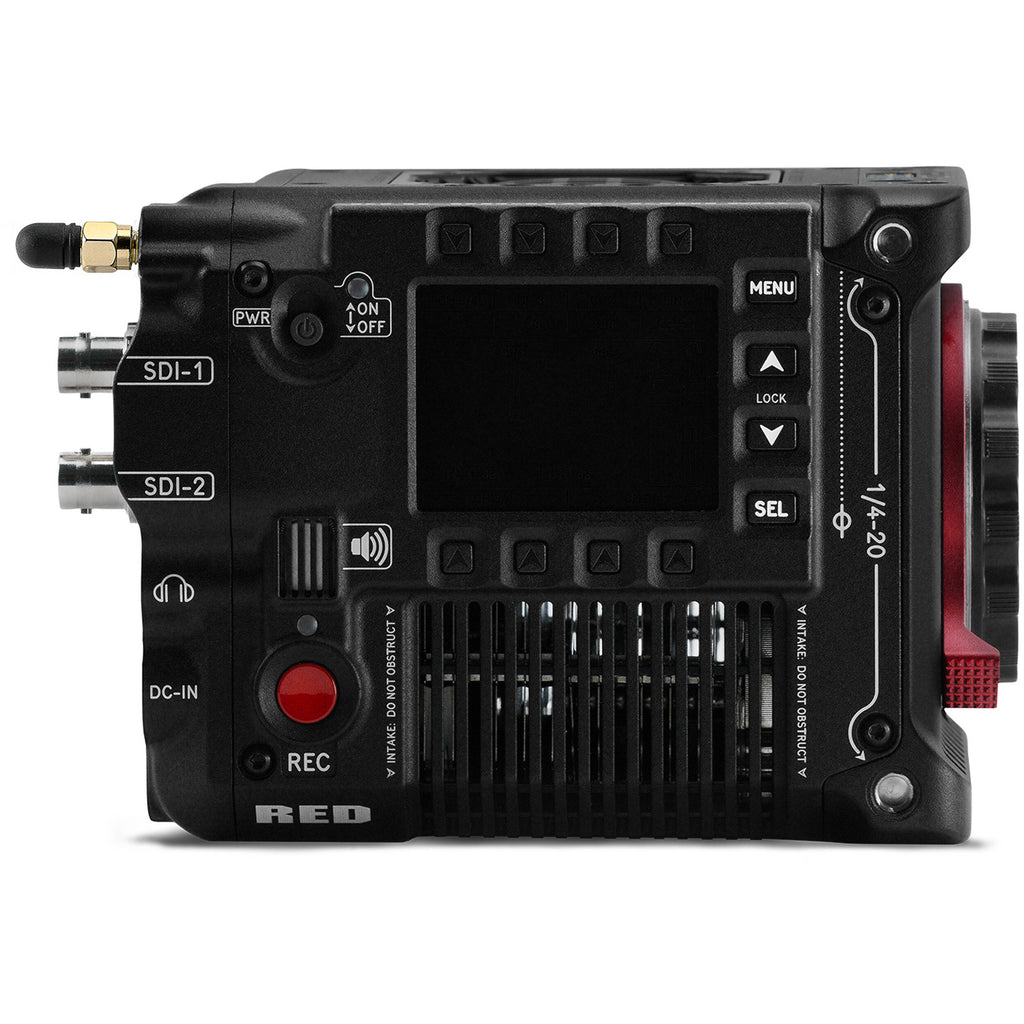

Built-In Controls and Monitoring

With multiple monitoring outputs and comprehensive on-body controls, the XE ensures efficient operation on set and in the field. Built into the right side of the camera, the control interface features a 2.4" LCD screen with easily navigable menus, providing an AC or camera operator with comprehensive control over in-camera format selection and other important functions. Dual 12G-SDI ports deliver unique monitoring views, while a USB-C port outputs data at up to 250 MB/s.

Advanced Connectivity

Supporting both wired and wireless IP connectivity, the XE allows cloud-based collaboration and app-based remote camera control. When used with RED's RF to PL Adapter with electronic ND filters, the XE allows ND strength to be continuously adjusted over Wi-Fi in fine increments of 1/100 of a stop.

Direct integration with Frame.io and AWS (Amazon Web Services)
Compatible with RED Control and RED Control Pro Apps for wireless monitoring and operation
Adjust camera settings from remote locations via Wi-Fi connection

Rugged DSMC3 Design

Sharing the same form factor as the V-RAPTOR X, the XE's lightweight 4 lb aluminum alloy body ensures durability without sacrificing mobility. Its advanced thermal management system maintains the camera's optimal internal temperature, preventing both overheating and overcooling.

UPC: 810016945925

RED DIGITAL CINEMA V-RAPTOR RF to PL Adapter with Electronic ND Filter Pack

The V-RAPTOR RF to PL Adapter with Electronic ND Filter Pack from RED DIGITAL CINEMA integrates the same precise electronic ND (neutral density) control used in the V-RAPTOR XL into a robust PL-mount solution for the RED V-RAPTOR.

Easy Exposure Control

This pack includes an RF to PL lens mount adapter, an electronic ND filter with a 2- to 7-stop range, and a clear filter to use with the mount adapter when an ND is not required. Control the ND filter via integrated buttons, DSMC3 RED Touch 7.0 LCD, RED Control, RED Control Pro, web interface, or any RCP2 compatible remote for easy exposure access in any configuration. The adapter also supports Cooke /i lens communications and ZEISS XD data pass-through.

Users who already own the RED V-RAPTOR RF to PL Adapter Pack and have the Adapter Support Brackets should contact RED directly to purchase the RF to PL Adapter with Electronic ND only.

Compatibility

RED V-RAPTOR camera

Electronic ND Filter

Includes an electronic ND filter with a 2- to 7-stop range and a clear filter for when no ND is needed.
The filter features precise control in 1/4, 1/3, or full-stop increments.
Enables you to choose the exact exposure without compromising your preferred aperture.

UPC: 810016943839

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m? brightness for high-quality imaging.

This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

Daylight Viewable

Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m? brightness.

Rigid Hinge

A rigid hinge system enables you to apply greater pressure when positioning the Touch for reliable viewing.

DCI-P3 Color Gamut

A 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging.

SmallHD Page OS

Runs SmallHD PageOS software that provides full camera control. Features include waveform, vectorscope, histogram, false color, color picker, pixel zoom, and additional functions.

Pogo Mount

Mounts directly onto the BRAIN using the Pogo mount.

USB-C Connector

USB-C connector is used for video, data, and power.

UPC: 810016944751

RED DIGITAL CINEMA KOMODO Outrigger Handle

The KOMODO Outrigger Handle from RED DIGITAL CINEMA provides flexible handling when operating your KOMODO digital cine camera. This low-profile handle is especially suited for keeping one hand on the integrated record/stop button and the other positioned for focus pulls or zooming. The KOMODO Outrigger handle features a rugged build, 360? of swivel rotation for optimal positioning, and two 1/4"-20 accessory threads. Attach it to your camera via its pogo connector or its two captive 1/4"-20 screws.

UPC: 810016941439

Items Included

RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Canon RF)

DSMC 150W AC Power Adapter
Limited 2-Year Manufacturer Warranty

RED DIGITAL CINEMA V-RAPTOR RF to PL Adapter with Electronic ND Filter Pack

Electronic ND Filter
Clear Filter
PL-Mount Shim Set
V-RAPTOR RF to PL Support Bracket Set (2)
Limited 1-Year Manufacturer Warranty

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

Rigid Hinge Arm
DSMC3 RMI Cable
Limited 1-Year Manufacturer Warranty

RED DIGITAL CINEMA KOMODO Outrigger Handle

Limited 1-Year Manufacturer Warranty

Not Included

Essential

Recording Media
Essential

Cine Lenses
Essential

Batteries

Additional Resources

Guides & Manuals

Kit Contains:

RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Canon RF)

Key Specs

Lens Mount	Canon RF
Image Sensor	40.96 x 21.6 mm (VistaVision) CMOS
Sensor Resolution	Effective: 35.4 Megapixel (8192 x 4320)
Image Stabilization	No
Internal Recording	REDCODE RAW 8192 x 4320 up to 60.00 fps 6144 x 3240 up to 80 fps 4096 x 2160 up to 120 fps 2048 x 1080 up to 240 fps Sensor Crops Video ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ* DCI 4K (4096 x 2160) up to 120 fps Sensor Crops Video ProRes 422 HQ Proxy* 2048 x 1080 up to 60.00 fps Sensor Crops Video REDCODE HQ* 8192 x 4320 up to 60.00 fps 6144 x 3240 up to 80 fps 4096 x 2160 up to 120 fps 2048 x 1080 up to 240 fps *Sensor Crops Video
Video Output	SDI/BNC 4096 x 2160 up to 60.00 fps 2048 x 1080p up to 60.00 fps
Media/Memory Card Slot	Single Slot: CFexpress Type B (CFast 2.0)
Video I/O	2x BNC (12G-SDI) Output
Mobile App Compatible	No
Battery	Micro V-Mount

Imaging

Lens Mount	Canon RF
Lens Communication	Yes
Image Sensor	40.96 x 21.6 mm (VistaVision) CMOS
Sensor Resolution	Effective: 35.4 Megapixel (8192 x 4320)
