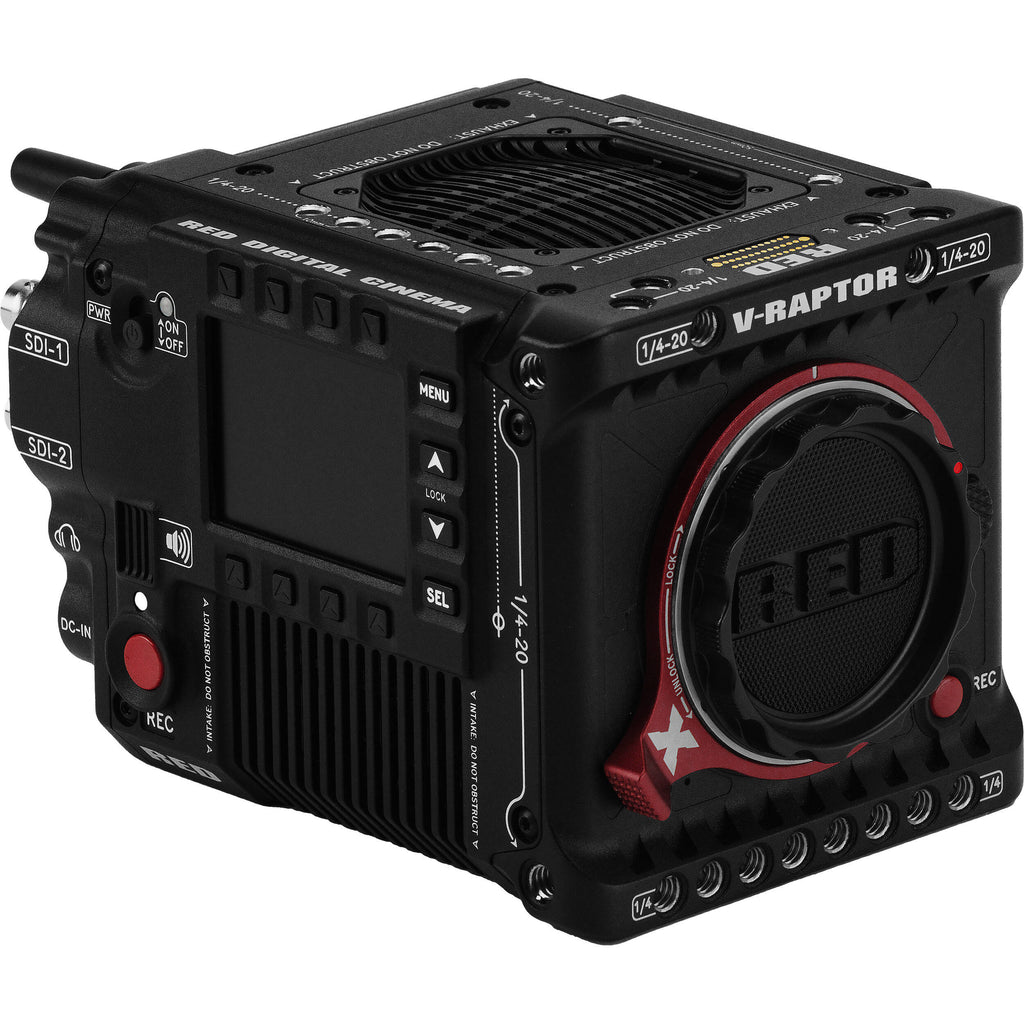

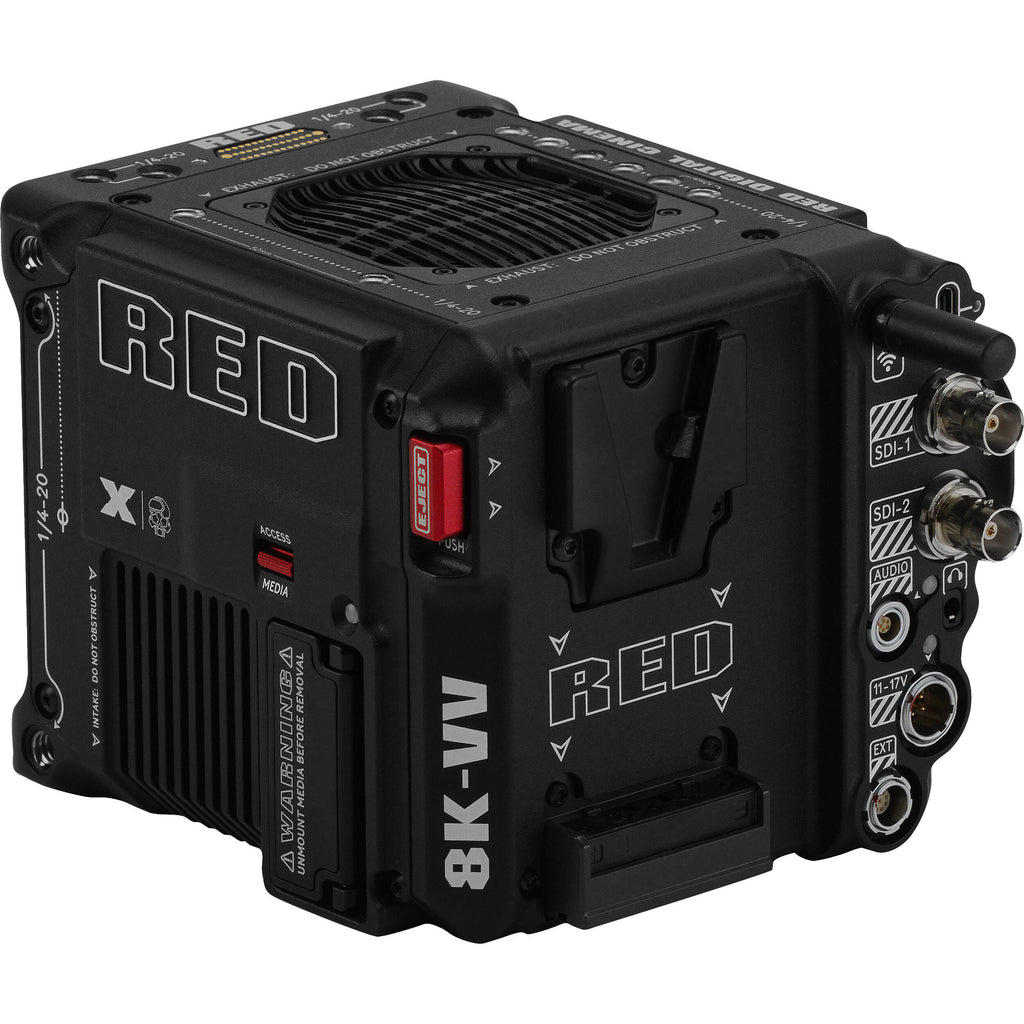

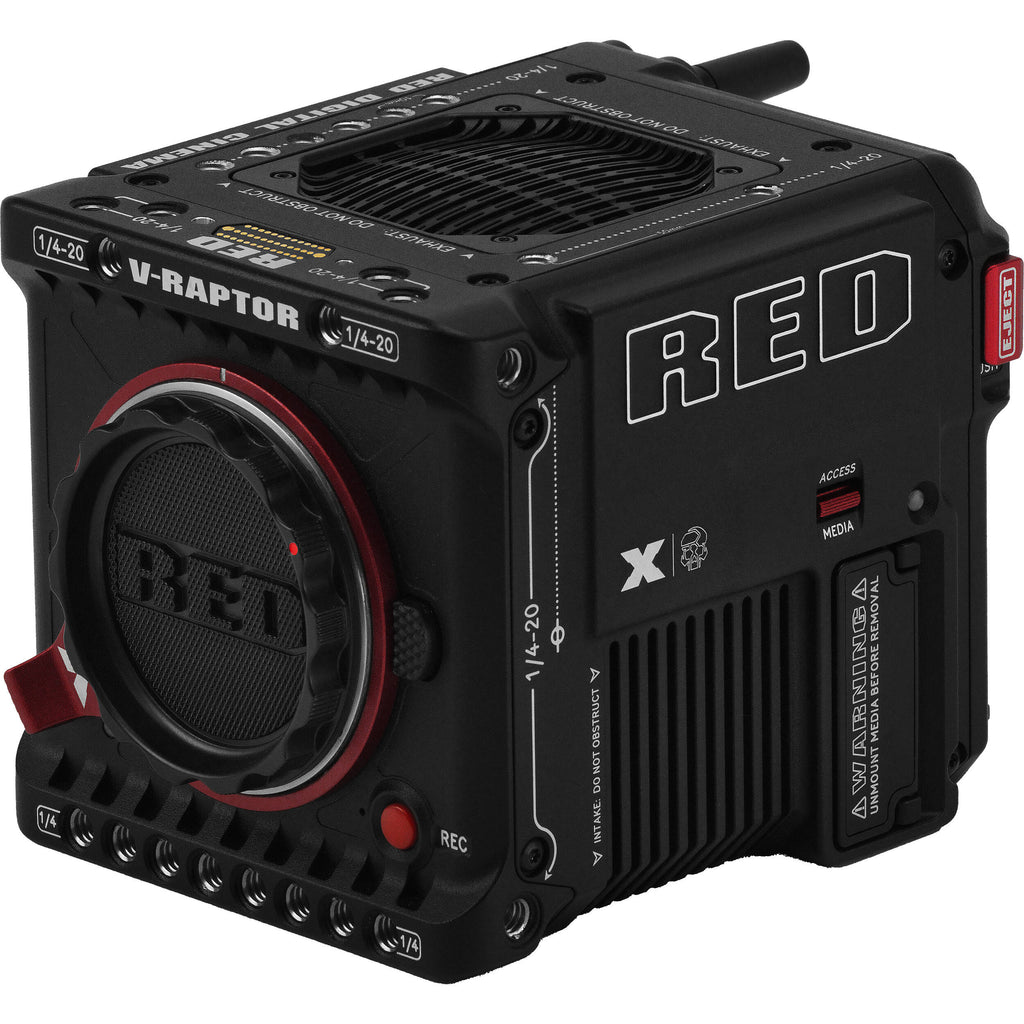

RED DIGITAL CINEMA V-RAPTOR [X] 8K VV Camera (V-Mount)

Providing the latest advancements in digital cinema, the V-RAPTOR [X] 8K VV Camera pairs the strengths of the RED DIGITAL CINEMA V-RAPTOR line with the advanced global shutter of the KOMODO camera. This new DSMC3 flagship camera is the first large-format global shutter camera and the first to offer RED's Global Vision with a suite of tools that provide unprecedented flexibility and dynamic range. The powerful, all-purpose V-RAPTOR [X] incorporates 8K resolution, crisp global shutter, optimal low-light performance, and high frame rate functions in a compact, feature-rich body weighing just over 4 lb.

This new DSMC3 flagship camera is the first large-format global shutter camera and the first to offer RED's Global Vision with a suite of tools that provide unprecedented flexibility and dynamic range. Key features shared with the original V-RAPTOR include a locking Canon RF lens mount, a single CFexpress Type B card slot that supports up to 8K120 capture, and two unique 12G-SDI monitoring outputs. The V-RAPTOR [X] 8K VV also features a redesigned sensor cavity that mitigates stray light and improves contrast, plus improved in-camera audio preamps.

In-camera processing and on-sensor, enhanced phase-detection autofocus plus all-new face detection enables the V-RAPTOR [X] to offer versatility and confidence to all levels of filmmakers.

The global shutter accurately captures your subject's motion, no matter how fast they're moving, with no distortion or Jello-like effects sometimes found with a rolling shutter. With the global shutter, you can capture every movement, flash, and burst without any compromise in image quality, dynamic range, or flexibility in post-production.

With the V-RAPTOR [X] 8K VV, RED has introduced its Global Vision suite of tools that uses the global shutter sensor to offer even greater flexibility and ease of use throughout your production process. These tools include Extended Highlights for increasing detail, producing finer HDR finishes or softer, more subtle highlight roll-offs when using SDR. Extended Highlights also offers 3+ stops of additional dynamic range, maintaining color and detail even within extreme highlights.

The 17+ stops of dynamic range in standard modes and up to 20+ with Extended Highlights enable the V-RAPTOR [X] to deliver both smooth highlight roll-off and uncompromising low-light performance.

The Phantom Track function streamlines any virtual production workflow using GhostFrame or frame remapping, capturing distinct R3D clips for each subframe slice in addition to enabling monitoring of either slice live on set over each SDI output. This enables your director and talent to work with the aid of a green screen background while the VF/X team can simultaneously view the frame without having to view or lock in that background. Phantom Track can also be used when applying dedicated ad overlays during a live broadcast.

Unmatched frame-rate performance enables V-RAPTOR [X] users to leverage creative elements like time-lapse or speed ramping or to extract ultrasharp still photos. Frame rate options include 8K, 6K, 4K, and 2K selections.

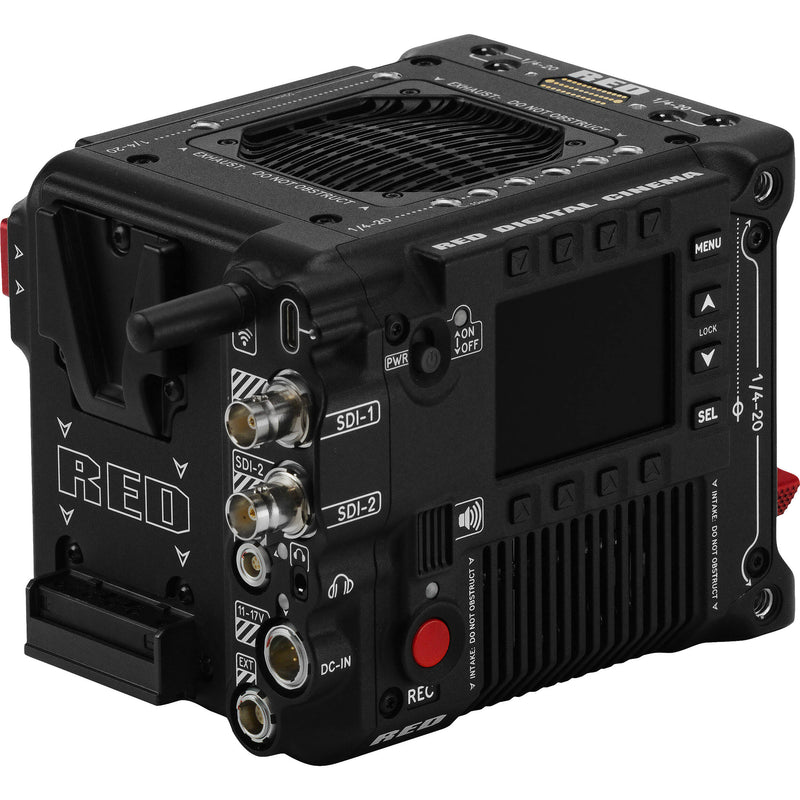

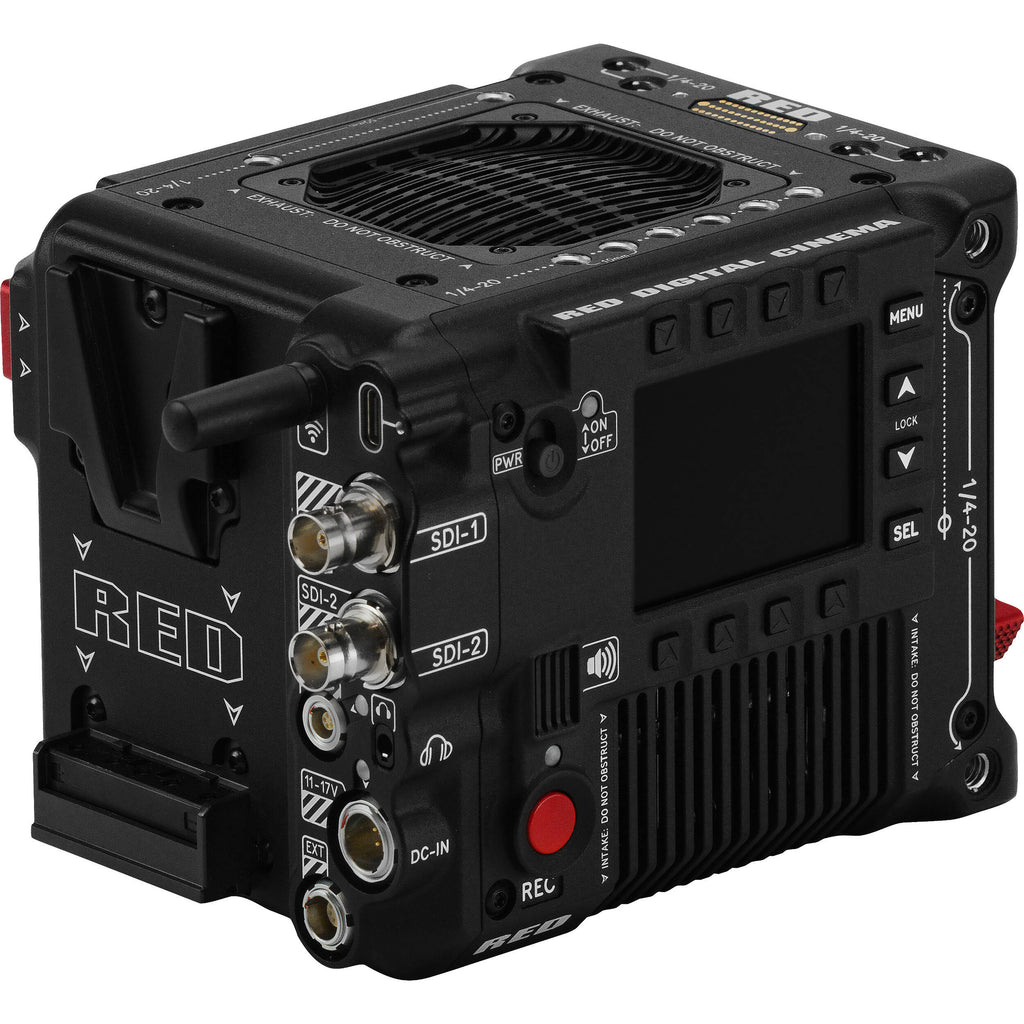

The integrated side display provides intuitive, and easily navigable, comprehensive control, including in-camera format selections, customized buttons, and more.

The V-RAPTOR [X] 8K VV uses a DSMC3 platform to offer advanced connectivity solutions like remote control, remote monitoring, in-camera Frame.io integrations, AWS (Amazon Web Services) direct upload, the RED Connect module for live 8K R3D video over IP or live 4K via SMPTE ST 2110, and more. These enhanced features put the V-RAPTOR [X] at the forefront of technology used for virtual production.

Connect the V-RAPTOR [X] using fiber cable and the RED CONNECT module to live stream 8K full-resolution, cinematic video over an IP network. Use the RED Control Pro iOS/Android app and the all-new RED CONNECT technology to unlock the V-RAPTOR [X]'s capabilities.

Newly engineered audio hardware provides cleaner, clearer audio when using external microphones with the V-RAPTOR [X].

Designed with water and dust-resistant materials in critical areas of its body, the V-RAPTOR [X] is suitable for a wide variety of environments. However, it is not waterproof and should be handled as you would any high-end electronics.

RED DIGITAL CINEMA V-RAPTOR XSpecs

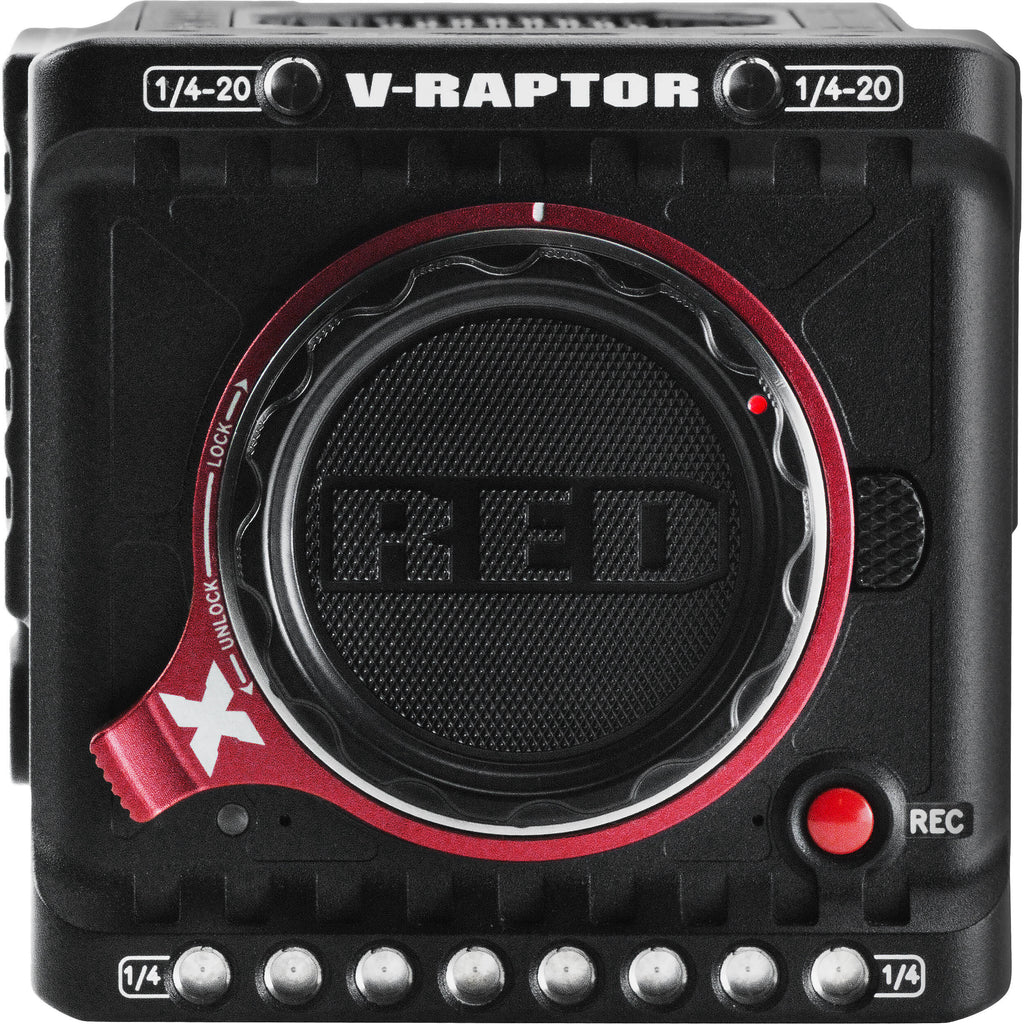

Lens Mount	Canon RF
Sensor Resolution	Effective: 35.4 Megapixel (8192 x 4320)
Image Sensor	40.96 x 21.6 mm (Full-Frame) CMOS
Image Stabilization	No
Internal Recording Modes	REDCODE RAW 8192 x 4320 up to 120 fps 7168 x 3780 7168 x 3780 up to 140 fps 8192 x 3456 up to 150 fps 6144 x 3240 up to 160 fps 7168 x 3024 up to 175 fps 5120 x 2700 up to 192 fps 6144 x 2592 up to 200 fps 5120 x 2160 up to 240 fps 4096 x 2160 up to 240 fps 4096 x 1728 up to 300 fps 3072 x 1620 up to 320 fps 3072 x 1296 up to 400 fps 2048 x 1080 up to 480 fps 2048 x 864 up to 600 fps ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ DCI 4K (4096 x 2160) up to 120 fps ProRes 422 HQ Proxy 2048 x 1080 up to 60.00 fps REDCODE HQ 8192 x 4320 up to 60.00 fps 7168 x 3780 6144 x 3240 up to 96 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE LQ 8192 x 4320 up to 120 fps 7168 x 3780 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE MQ 8192 x 4320 up to 59.94 fps 7168 x 3780 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps
External Recording Modes	SDI/BNC 4096 x 2160 up to 60.00 fps 2048 x 1080p up to 60.00 fps
Media/Memory Card Slot	Single Slot: CFexpress Type B (CFast 2.0)

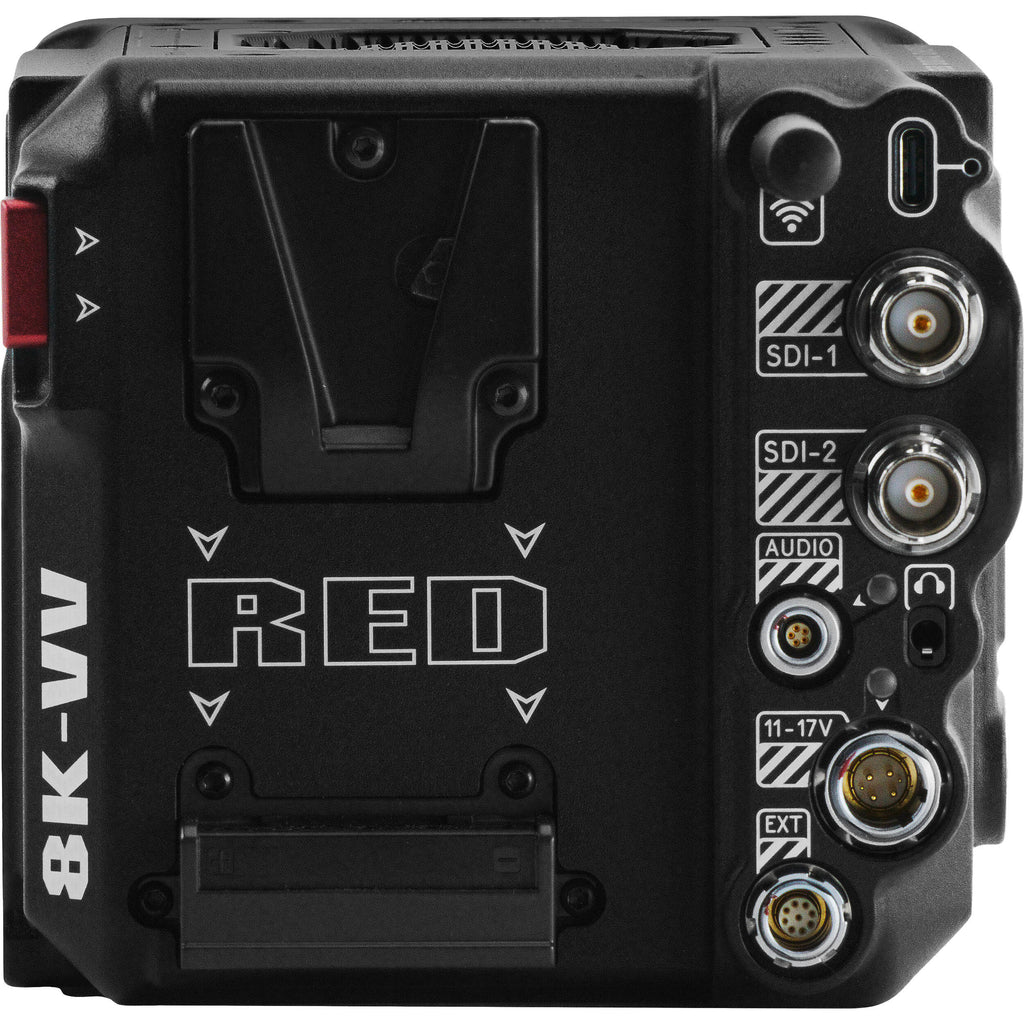

Video I/O	2x BNC (12G-SDI) Output
Mobile App Compatible	No
Battery Type	Micro V-Mount

Lens Mount	Canon RF
Lens Communication	Yes
Sensor Resolution	Effective: 35.4 Megapixel (8192 x 4320)
Image Sensor	40.96 x 21.6 mm (Full-Frame) CMOS
Image Stabilization	No
Built-In ND Filter	No
Capture Type	Stills & Video

Shutter Type	Electronic Global Shutter
Advertised Dynamic Range	17 Stops

Internal Recording Modes	REDCODE RAW 8192 x 4320 up to 120 fps 7168 x 3780 7168 x 3780 up to 140 fps 8192 x 3456 up to 150 fps 6144 x 3240 up to 160 fps 7168 x 3024 up to 175 fps 5120 x 2700 up to 192 fps 6144 x 2592 up to 200 fps 5120 x 2160 up to 240 fps 4096 x 2160 up to 240 fps 4096 x 1728 up to 300 fps 3072 x 1620 up to 320 fps 3072 x 1296 up to 400 fps 2048 x 1080 up to 480 fps 2048 x 864 up to 600 fps ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ DCI 4K (4096 x 2160) up to 120 fps ProRes 422 HQ Proxy 2048 x 1080 up to 60.00 fps REDCODE HQ 8192 x 4320 up to 60.00 fps 7168 x 3780 6144 x 3240 up to 96 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE LQ 8192 x 4320 up to 120 fps 7168 x 3780 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE MQ 8192 x 4320 up to 59.94 fps 7168 x 3780 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps
External Recording Modes	SDI/BNC 4096 x 2160 up to 60.00 fps 2048 x 1080p up to 60.00 fps
Recording Sensor Crop	Crops to Output Resolution in All Recording Modes
Fast-/Slow-Motion Support	Yes
Gamma Curve	RED IPP2
Built-In Microphone	Mono
Audio Recording	2-Channel 24-Bit 48 kHz
IP Streaming	Yes

Media/Memory Card Slot	Single Slot: CFexpress Type B (CFast 2.0)
Video I/O	2x BNC (12G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
Power I/O	1x LEMO 6-Pin (11 to 17VDC) Input
Other I/O	1x USB-C Control/Data/Video 1x 9-Pin (Genlock, RS-232) Control/Data Input/Output 1x 9-Pin (Timecode)
Wireless	2.4 / 5 GHz Wi-Fi Video Output
Mobile App Compatible	No
Global Positioning (GPS, GLONASS, etc.)	No

Type	Optional, Not Included

Focus Mode

Automatic, Manual Focus

Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 122°F / -20 to 50°C up to 85% Humidity
Battery Type	Micro V-Mount
Shoe Mount	No
Tripod Mounting Thread	1/4"-20 Female (Bottom) 3/8"-16 Female (Bottom)
Accessory Mounting Thread	28x 1/4"-20
Material of Construction	Aluminum
Dimensions (W x H x D)	5.89 x 4.5 x 4.3" / 149.63 x 115.5 x 108 mm
Weight	4 lb / 1.8 kg (Body Only)
