Description
RED DIGITAL CINEMA 720-0060 Overview

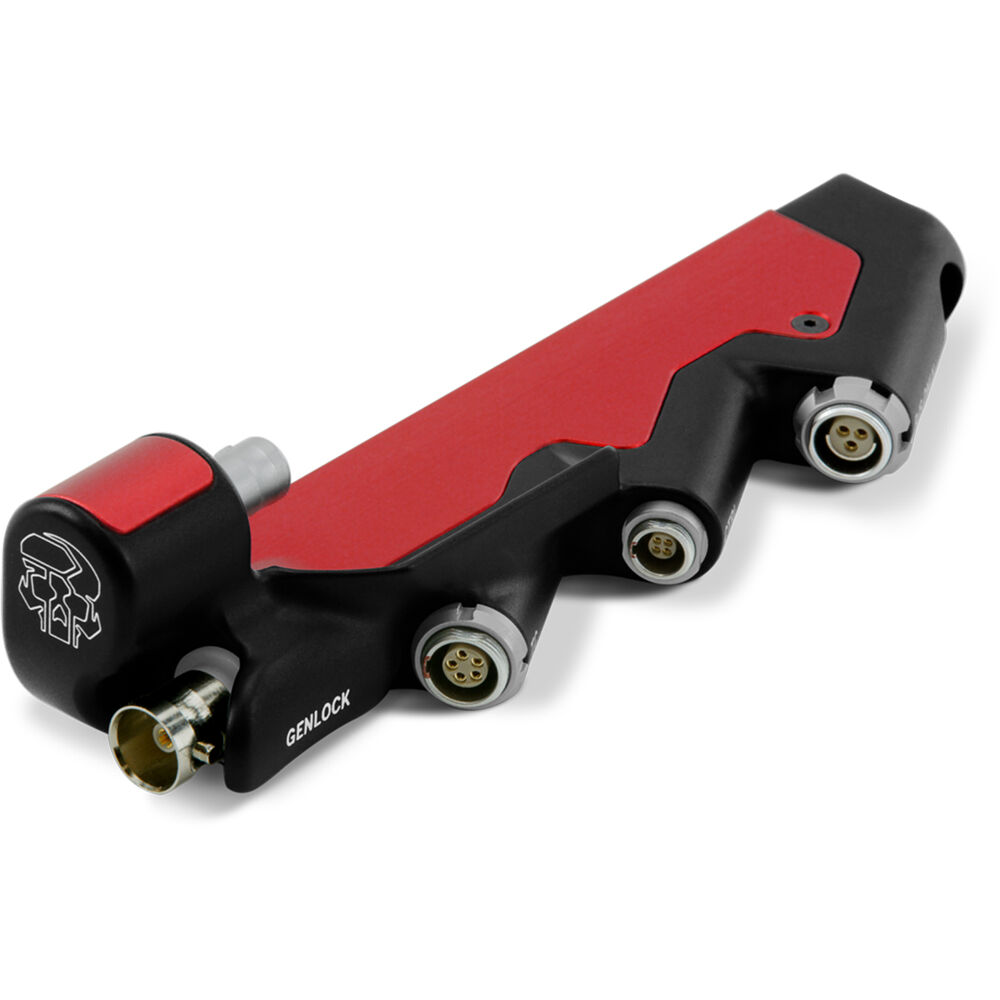

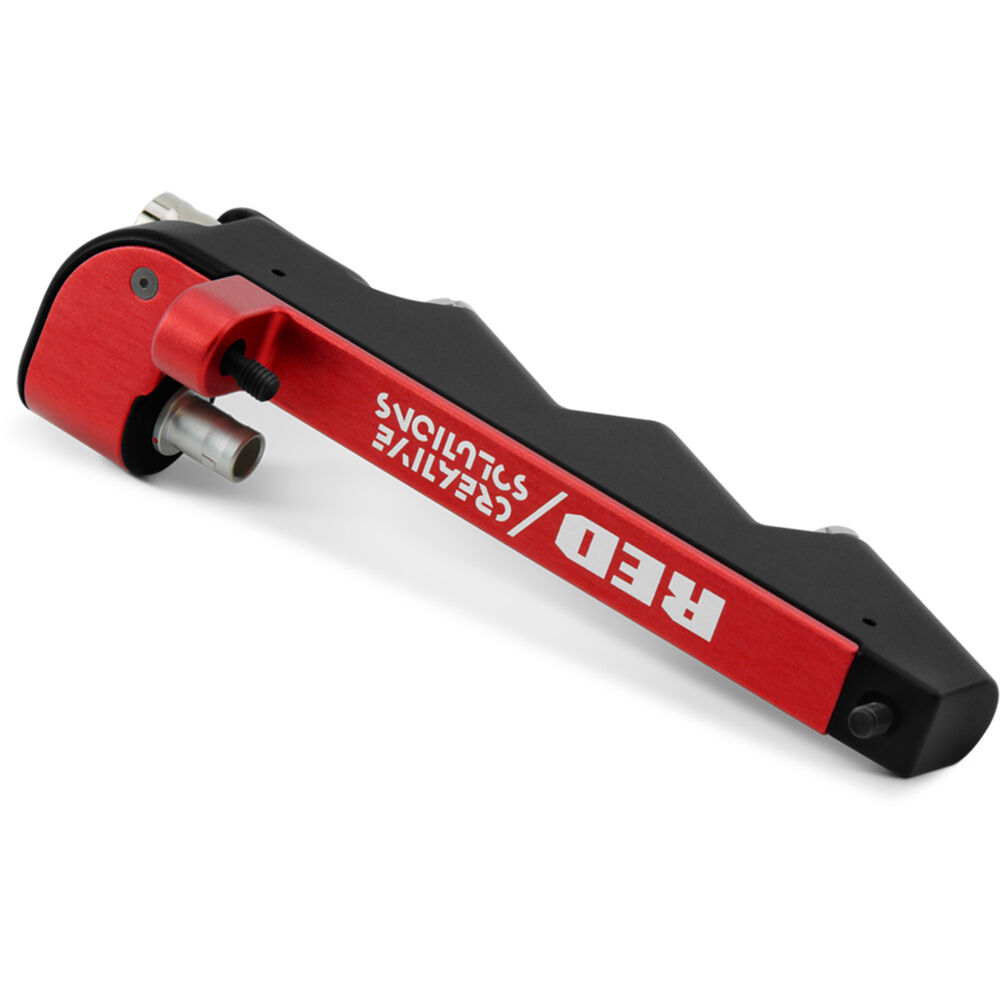

Mount the RED V-RAPTOR Expander Blade to your V-Raptor camera to gain video, power, and communication ports, enabling a wide choice in how you configure your camera for professional applications. The Expander Blade attaches to your camera via the camera's 9-pin EXT port and is supported by the included ARCA plate.
Once attached, the Expander plate provides a BNC connector (Genlock video), 5-pin connector for timecode, 4-pin connector for RED CTRL, and 3-pin Fischer for Run/Stop. Please note that the 3-pin Run/Stop is only for trigger, and it does not supply power.
Note:
The V-RAPTOR Expander Module is for DSMC3 cameras only, and it is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
UPC: 810016942504
In the Box
- RED DIGITAL CINEMA V-RAPTOR Expander Blade
- Arca Plate
- Limited 1-Year Manufacturer Warranty
Firmware Updates
v1.5.0beta, Mar '23
RED DIGITAL CINEMA 720-0060 Specs
General
| Compatibility | RED DSMC3 V-RAPTOR |
Power
| Power Source | Camera |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
Physical
| Mounting | Multiple x ARCA |
| Dimensions | 5.2 x 1.9 x 1.3" / 131.5 x 47.5 x 32.5 mm (Expander Blade) 4.6 x 2 x 0.8" / 117 x 50 x 20 mm (ARCA Plate) |
| Weight | 3.48 oz / 98.75 g (Expander Blade) 9.3 oz / 262.9 g (Expander Plate and ARCA Plate) |
Packaging Info
| Package Weight | 1.43 lb |
| Box Dimensions (LxWxH) | 8.7 x 7.9 x 2.3" |
