Description
RED DIGITAL CINEMA Komodo X Overview
By Photo's
Jennifer Hahn
RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black)
RED further advances its KOMODO line with the release of the black
KOMODO-X 6K, a digital cinema camera featuring faster frame rates, a redesigned S35 sensor, and an updated form including advanced video and audio interfaces. With built-in Wi-Fi and a USB-C connector, the KOMODO-X provides a powerful platform for smooth professional capture, multicamera setups, and IP-based workflows, including live streaming. The KOMODO-X will be complemented by pre-bundled packs and additional accessories such as RED Pro I/O V-Mount and Gold Mount Modules.
Next-Gen KOMODO Sensor
While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.
Compact KOMODO Form
The KOMODO-X 6K camera melds select DSMC3 features with the notably ultracompact KOMODO form. The KOMODO-X is compatible with the upcoming PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use and it has a built-in micro plate that enables the direct mounting use of Micro V-mount batteries without the need for an adapter. It also incorporates a full-size, 6-pin 11-17VDC power input.
Canon RF Mount
- The KOMODO-X comes with a reinforced, locking Canon RF lens mount, offering RED's toolless lens-mount feature for compatibility with a wide range of lenses.
- To use ARRI PL-mount lenses, use the KOMODO-X with the RED RF to PL adapter with electronic ND filter.
Integrated LCD
When working in close quarters or in compact setups, users can preview their images and apply simplified controls via the integrated 2.9" LCD. Pair the KOMODO-X with the daylight-viewable, high-resolution DSMC3 7" Touch LCD offers more precise monitoring and full control in a cable-free, decluttered form.
Live Streaming and Expanded In/Out
The KOMODO-X's expanded interface includes:
- 12G-SDI video output up to 4K60p.
- A USB-C port with Ethernet offload capabilities.
- Built-in Wi-Fi for 1080p IP live streaming for web applications and in-app monitoring.
CFexpress Type B
- The KOMODO-X has a single media slot for use with a high-capacity, fast CFexpress type B card.
- Record up to 17 hours using a 4TB CFexpress type B card.
- Offload data up to 3x faster than CFast media.
Advanced Connectivity
- With a USB-C interface and an integrated Wi-Fi function, the KOMODO-X shines at streamlined IP workflows like Virtual Production and live broadcasting. Use it with the RED Control or Control Pro apps to avail yourself of not only remote camera control but FTP media off-loading and in-camera Cloud uploading.
- Add a RED Connect license to broadcast up to 6K live images over IP directly from the camera.
- Multicamera and LED volume shooters will appreciate the KOMODO-X's frame-accurate PTP or trilevel genlock syncing with on-the-fly offset ability.
Audio Interface
Improved audio options include a locking, phantom-powered 5-pin connector that can be used with a 3.5mm adapter and KOMODO microphones or with a dual XLR adapter and a wide array of microphones.
RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
Certified for RED V-RAPTOR and KOMODO-X camera systems, the
1TB PRO CFexpress 2.0 Type B Memory Card from
RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate capture. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 1TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 1785 MB/s.
Durable Angelbird Build
Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
Note:
This RED PRO CFexpress card is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
Compatibility
- RED V-RAPTOR 8K VV cinema camera
- RED KOMODO-X cinema camera
- RED CFexpress card reader
General Features
- 1TB capacity
- Max read/write speed: 1785 MB/s
- CFexpress 2.0 Type B
- Produces a stable stream
Performance
- For photos, HD videos, and raw 4K to 12K resolutions
- Y2 processor designed for raw video and photo content
- Adaptive Power Management helps preserve battery life and card endurance
- Host power loss protection
- Sticker-free design prevents media slot jams
- Mean Time Between Failures of up to 2.4 million hours
- Temperature sensor, TRIM, ECC, EMS protection, built-in cache, and SMART
Overheating Protection
- With Angelbird's adaptive thermal management system, you can feel confident that your data is protected from the threat of potential damage due to camera overheating during long shoots.
- Advanced thermal management helps protect the card, camera, and stored content.
AV Pro Line Offers Quality and Performance
- The AV Pro product line pushes the limits of speed and performance in the safest possible way. All AV Pro media solutions consider the real-world media needs of the professional creative and feature Stable Stream performance technology, which is ideal for high-definition, lossless (drop-fee) video recording and smooth data processing.
- The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections, such as shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.
Free Professional Data Recovery Service
Angelbird offers free professional data recovery service on all its products. In lieu of a self-service software download, Angelbird provides a staff of professionals who will evaluate the issue and safely attempt a secure data-recovery in their lab along with complementary express shipping. This service covers media that has encountered physical damage and/or software issues such as data or file corruption. Furthermore, Angelbird extends a non-disclosure agreement to their customers to ensure that the privacy and confidentiality of their content is also protected.
RED DIGITAL CINEMA CFexpress Card Reader
The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.
Compatibility
RED PRO 660GB CFexpress card
UPC: 812937024666

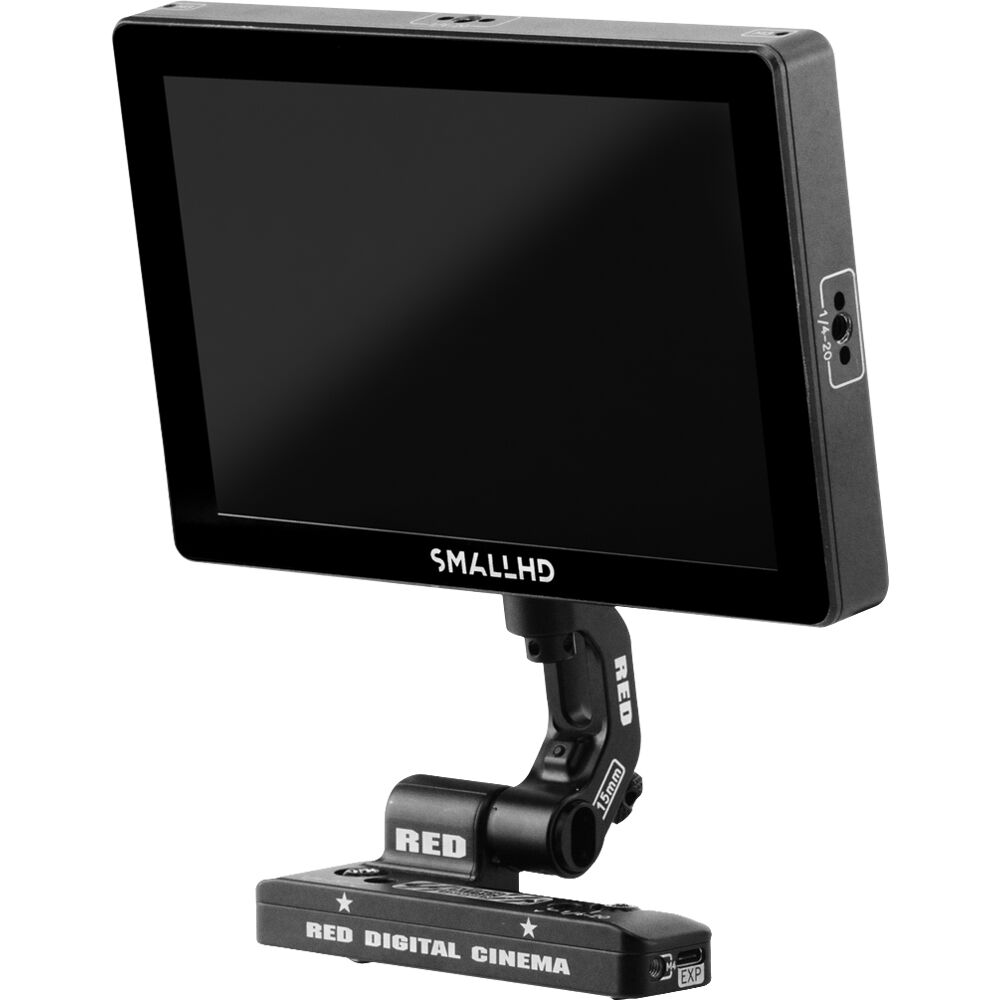

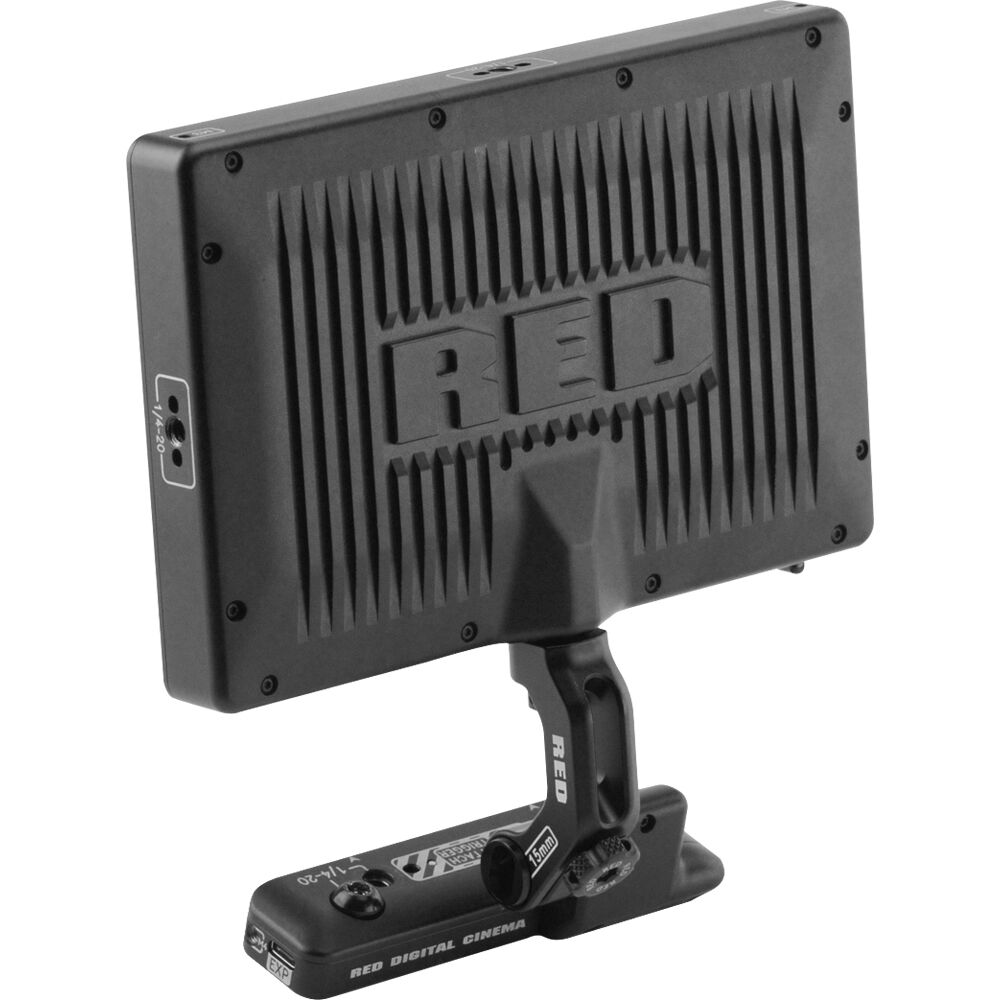

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge
Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.
This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
Daylight Viewable
Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m² brightness.
Rigid Hinge
A rigid hinge system enables you to apply greater pressure when positioning the Touch for reliable viewing.
DCI-P3 Color Gamut
A 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging.
SmallHD Page OS
Runs SmallHD PageOS software that provides full camera control. Features include waveform, vectorscope, histogram, false color, color picker, pixel zoom, and additional functions.
Pogo Mount
Mounts directly onto the BRAIN using the Pogo mount.
USB-C Connector
USB-C connector is used for video, data, and power.
UPC: 810016944751

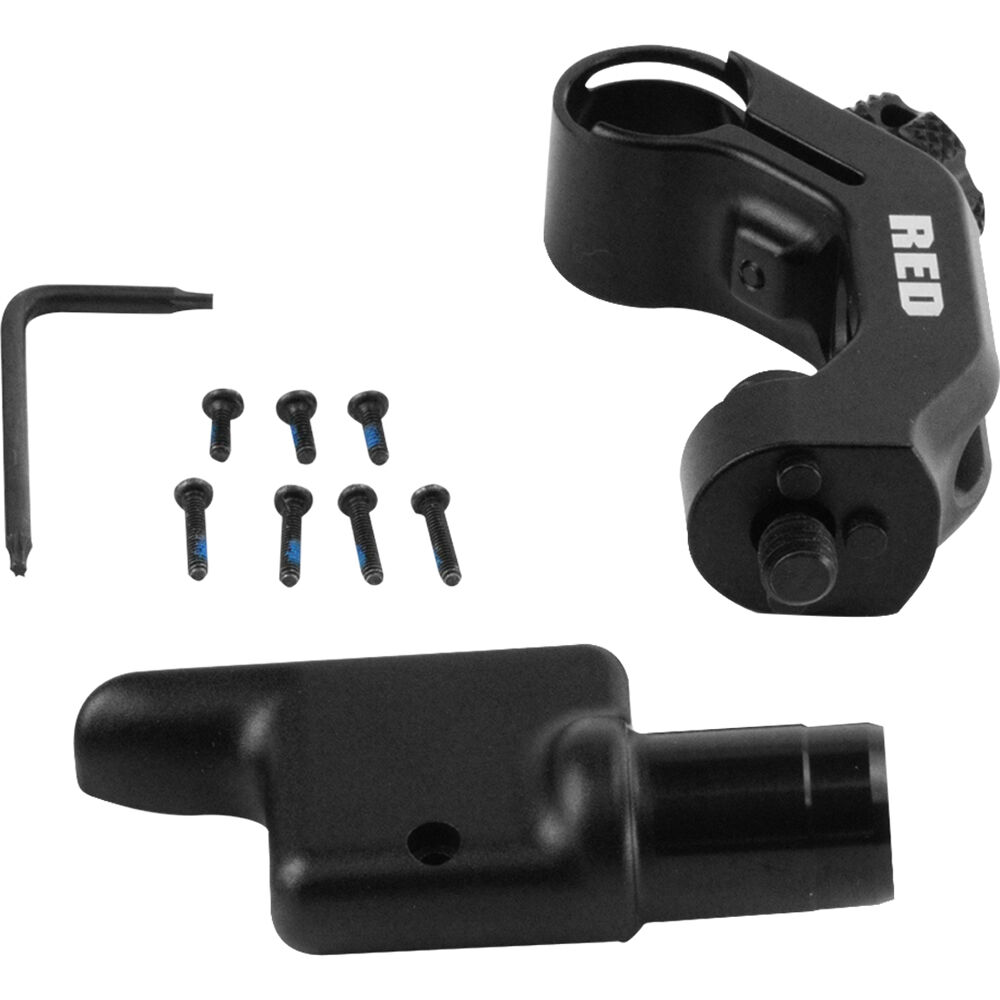

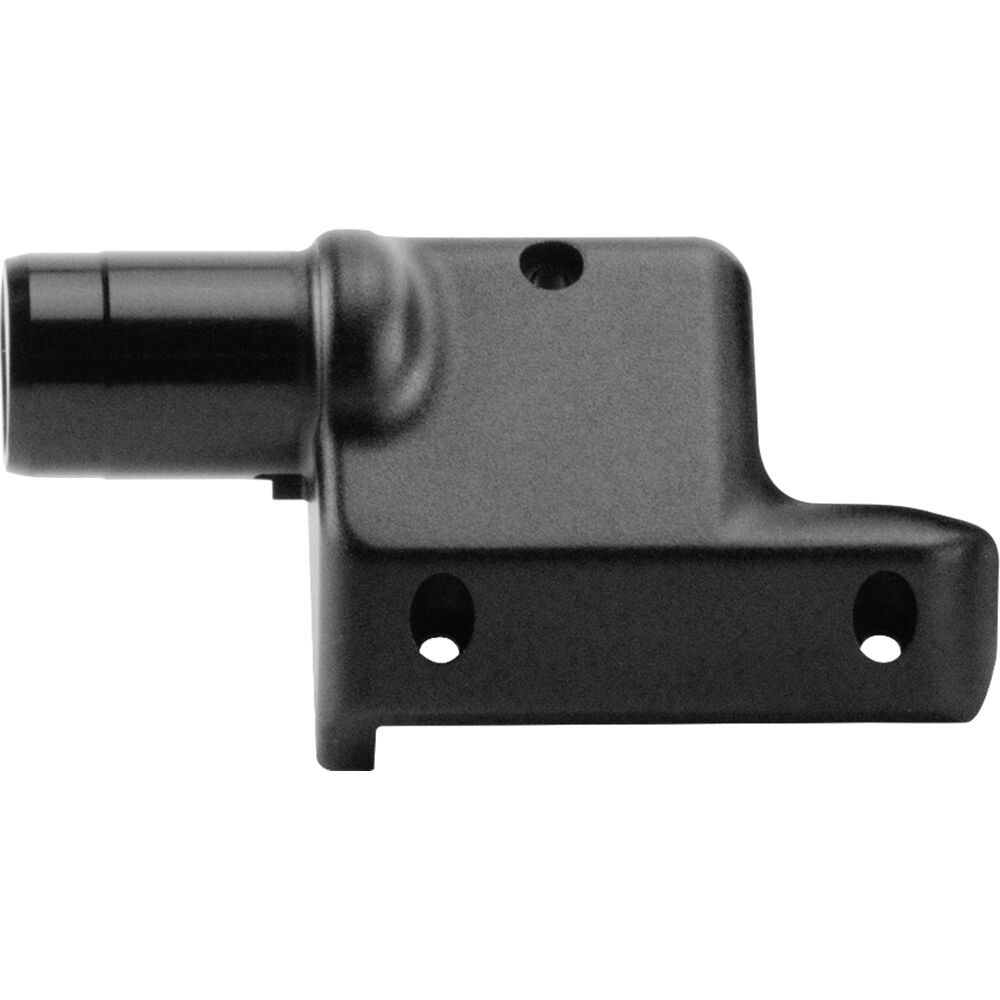

RED DIGITAL CINEMA Compact Top Handle for KOMODO-X or V-RAPTOR/XL
Use the
RED Compact Top Handle to add a comfortable grip for carrying or operating your KOMODO-X, V-RAPTOR, or V-RAPTOR XL camera. This modular, 3-piece handle features Bocote wood inlays, a 15mm rod monitor mount, and a run/stop trigger control. Constructed from a machined aluminum alloy, it also provides multiple 1/4"-20 and 3/8"-16 anti-twist threads for attaching accessories.
Compatibility
RED
- KOMODO-X
- V-RAPTOR
- V-RAPTOR XL
Modular Design
- The modular design enables you to set the handle up as best suits your rig or specific shot.
- Main section with a run/stop button, 1" front piece, 3" back piece, and a 15mm rod monitor mount.
Ergonomic Design
The handle is constructed from a durable aluminum alloy with Bocote wood inlays for added comfort.
RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.
Note:
The DSMC3 RED 5-pin to dual XLR 3-pin adapter is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
UPC: 810016942511
RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X & V-RAPTOR (Gold Mount)
This
RED PRO I/O Module from
RED DIGITAL CINEMA provides a Gold mount battery plate and additional power and communication interfaces for your KOMODO-X 6K digital cinema camera. The Gold mount module mounts directly to the KOMODO-X camera's Micro-V-mount plate and 9-pin EXT port.
Compatibility
- RED KOMODO-X cinema camera
Expanded Interface
- Pro video connectors include timecode in, genlock, and 4-pin control interfaces.
- The module also provides one DC power input, one regulated 24V R/S port, and two unregulated 12V AUX ports.
Status Screen
- The operator-side screen displays key voltage and battery percentage information.
- A switch enables you to cut power to the module when you want to leave a battery on for an extended length of time.

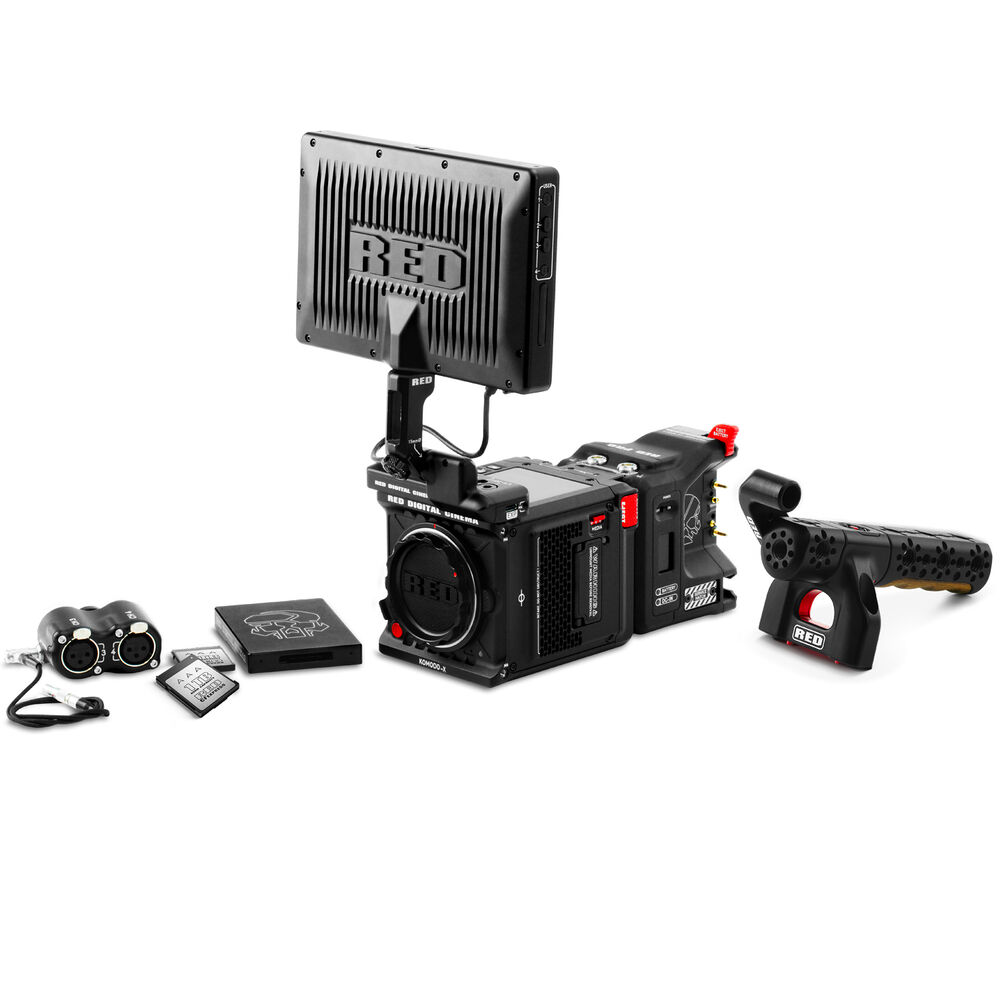

Items Included
- RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black)
- AC Adapter
- Limited 1-Year Manufacturer Warranty
- 2 x RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
- Lifetime Data Protection
- Limited 3-Year Warranty (must be activated with Angelbird within 30 days of purchase)
- Limited 3-Year Manufacturer Warranty (must be activated with Angelbird within 30 days of purchase)
- RED DIGITAL CINEMA CFexpress Card Reader
- USB Type-C 3.2 Cable
- USB Type-A to Type-C Adapter
- Limited 1-Year Manufacturer Warranty
- RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

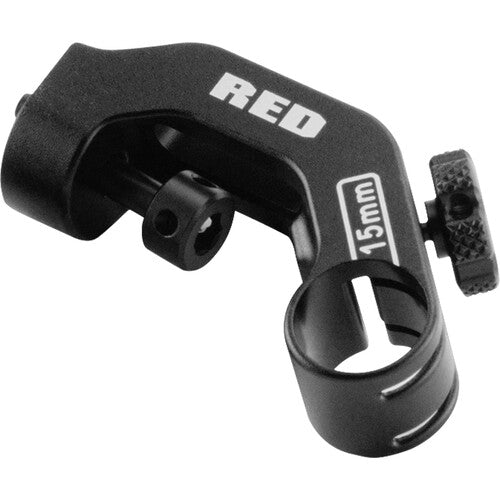

- Rigid Hinge Arm
- DSMC3 RMI Cable
- Limited 1-Year Manufacturer Warranty
- RED DIGITAL CINEMA Compact Top Handle for KOMODO-X or V-RAPTOR/XL
- Front Piece (1")
- Rear Piece (3")
- 15mm Rod Monitor Mount
- 2 x 1/4"-20 Captive Screw
- Limited 1-Year Manufacturer Warranty
- RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
- Right-Angle Mounting Bracket
- 2 x 1/4"-20 Mounting Screw
- Limited 1-Year Manufacturer Warranty
- RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X & V-RAPTOR (Gold Mount)
- Limited 1-Year Manufacturer Warranty
Not Included
- Essential Batteries
- Essential Cine Lenses
Additional Resources
Guides & Manuals
