Description
Rean RT3MP Overview

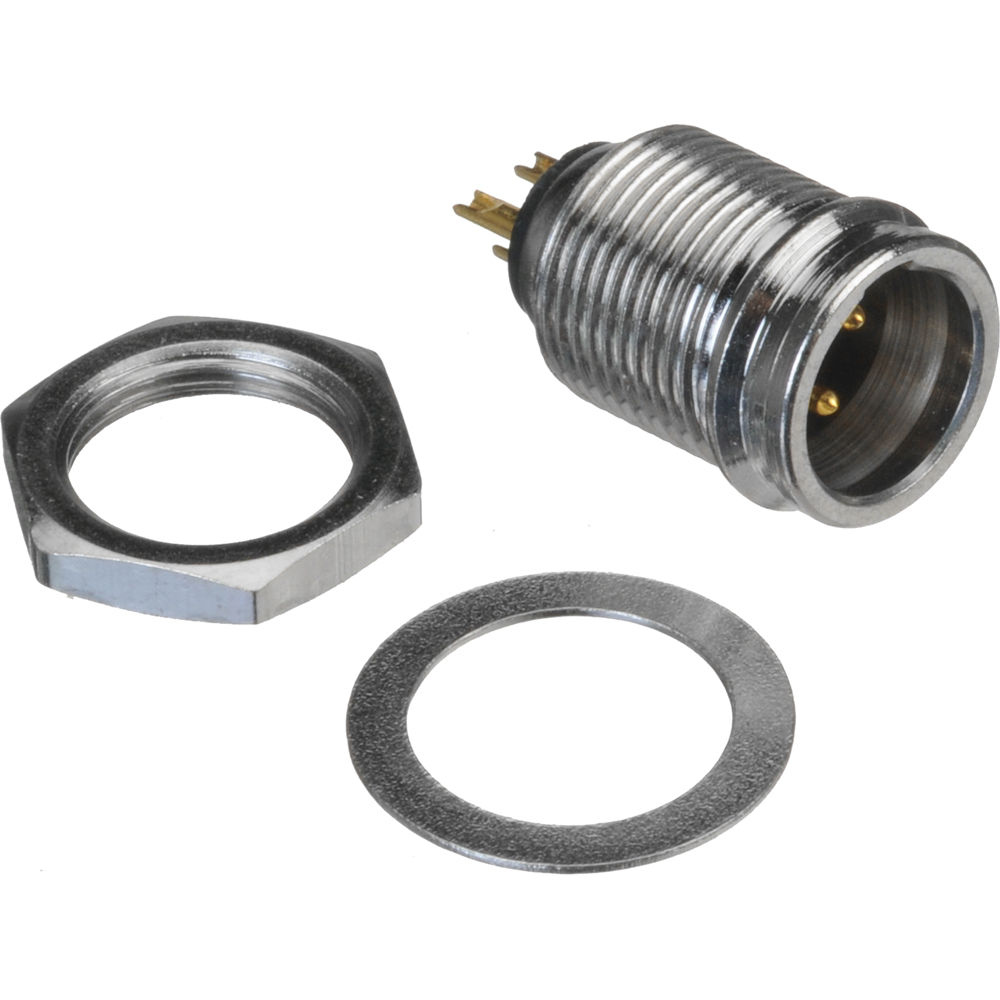

The RT3MP TINY from Rean is a chassis connector with a 3-pole mini XLR male connection point. With its front-mountable design, the chassis connector provides a water-resistant connection when mating with the RTFC-B-W. The system is shielded for noise immunity and EMI protection, while the housing is constructed of nickel. Its contacts are gold-plated.
Items Included
- Rean RT3MP 3-Pole TINY XLR Male Chassis Connector
- Limited 180-Day Manufacturer Warranty
Additional Resources
No additional resources available
Rean RT3MP Specs
| Gender |
Male
|
| Electrical |
|
| Contact Resistance |
<10 MOhms (inner)
|
| Dielectric Strength |
>0.5 kVDC
|
| Insulation Resistance |
>1 GOhms
|
| Rated Current |
<5 A
|
| Mechanical |
|
| Lifetime |
>5,000 mating cycles
|
| Maximum Panel Thickness |
0.23" / 6 mm
|
| Wire Size |
0.22 mm²
24 AWG |
| Wiring |
Solder contacts
|
| Material |
|
| Contact Plating |
Au
|
| Contacts |
Brass (CuZn39Pb3)
|
| Insert |
PA 6.6 30 % GF
|
| Shell |
Housing Material: ZnAl4Cu1
|
| Shell Plating |
Nickel
|
Environmental
| Solderability |
Complies with IEC 68-2-20
|
| Temperature Range |
-22 to 185°F / -30 to 85°C
|
| Dimensions |
0.5 x 0.8" / 12 x 20.5 mm
|
Packaging Info
| Package Weight |
0.015 lb
|
| Box Dimensions (LxWxH) |
4.35 x 2.55 x 0.75"
|
