Description

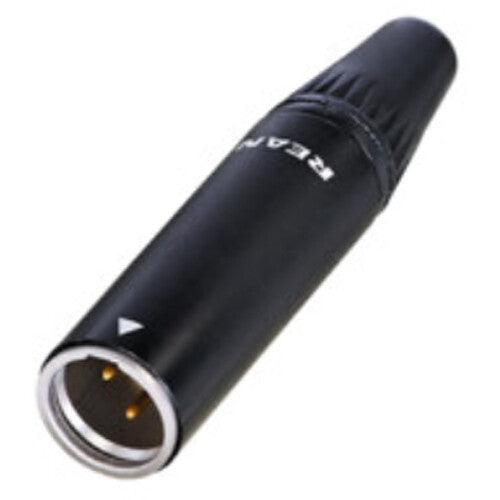

Rean RT3MC-B Overview
The RT3MC-B TINY from Rean is a cable connector with a 3-pole mini XLR male connection point. It's easy to assemble and offers a simple locking mechanism for an added measure of connective security. It also boasts high-noise immunity and EMI protection due to its shielded construction. The RT3MC-B utilizes a black metal shell and gold-plated nickel contacts. Keyed insert and strain relief helps you avoid improper rotation with the cable you're using in conjunction with this connector.
Items Included
- Rean RT3MC-B 3-Pole TINY XLR Female Cable Connector
- Limited 180-Day Manufacturer Warranty
Additional Resources
No additional resources available
Rean RT3MC-B Specs
| Gender |
Female
|
Electrical
| Contact Resistance |
<10 MOhms (Inner)
|
| Dielectric Strength |
>0.5 kVDC
|
| Insulation Resistance |
>1 GOhms
|
| Rated Current |
<5 A
|
Mechanical
| Cable O.D. |
0.08 to 0.16" / 2 to 4.0 mm
|
| Lifetime |
>5000 mating cycles
|
| Wire Size |
0.22 mm²
24 AWG |
| Wiring |
Solder Contacts
|
Material
| Bushing |
ABS / TPU
|
| Contact Plating |
Au
|
| Contacts |
Bronze (CuSn6)
|
| Insert |
PA 6.6 30% GF
|
| Shell |
Zinc Die-Cast (ZnAl4Cu1)
|
| Shell Plating |
Black
|
| Strain Relief |
POM
|
Environmental
| Solderability |
Complies with IEC 68-2-20
|
| Temperature Range |
-22 to 185°F / -30 to 85°C
|
| Dimensions |
0.4 x 1.9" / 10.7 x 47.5 mm
|
Packaging Info
| Package Weight |
0.023 lb
|
| Box Dimensions (LxWxH) |
5.15 x 1.4 x 0.6"
|
