Description
- 25/70/100V

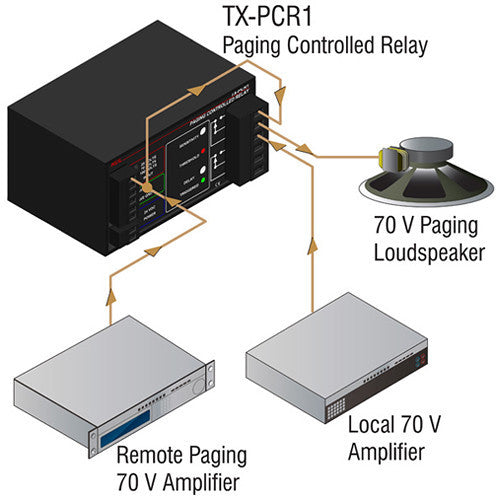

The RDL TX-PCR1 Paging Controlled Relay is ideal for local speaker muting during an area page and can be used for controlled switching of constant-voltage audio sources. The detachable terminal block has inputs for 25, 70, or 100V systems. The Slave output can be used to control other modules or the DPDT relay can switch speaker loads.
- Switches between 25, 70 and 100V inputs
- 25V input can also accept 8? loads up to 75W
- Front panel trimmer controls for sensitivity and delay release
- 8A DPDT relay contacts for switching speaker loads
UPC: 813721016256
In the Box

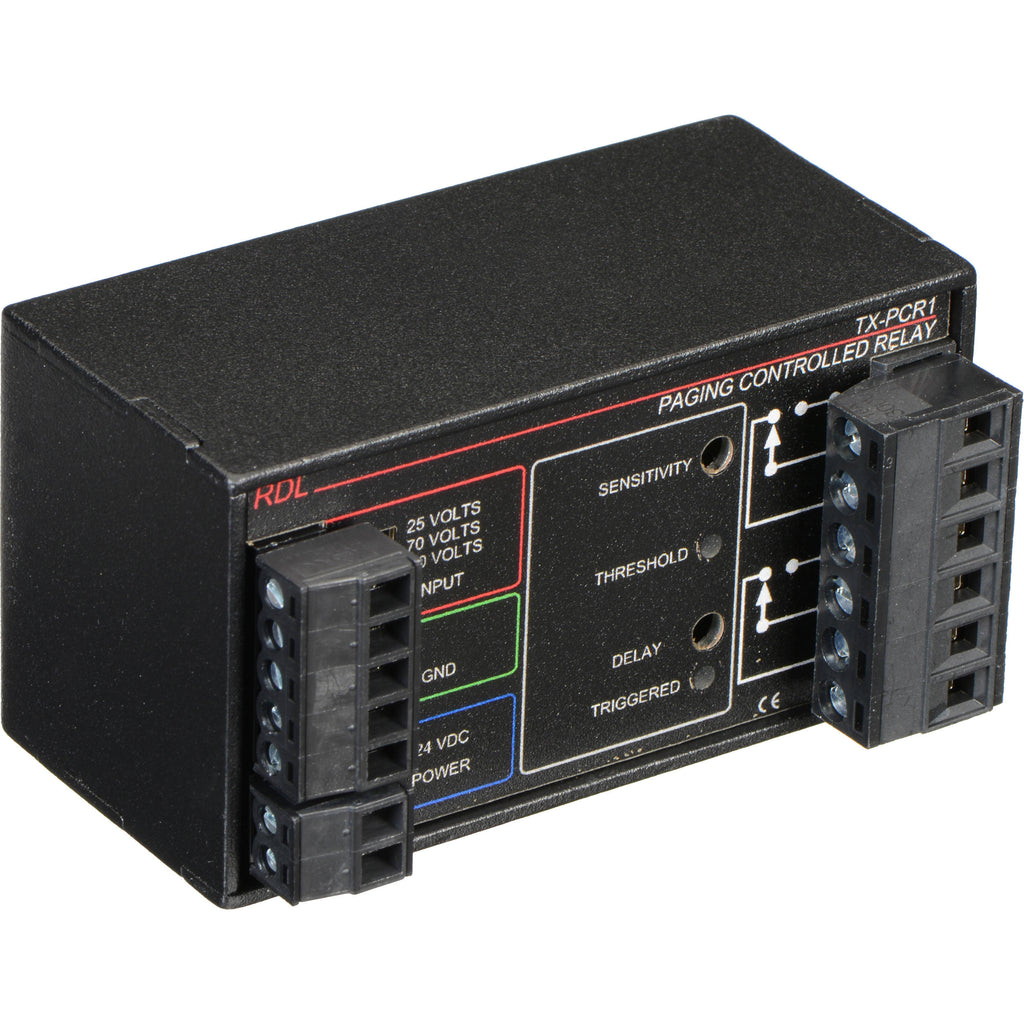

RDL TX-PCR1 Paging Controlled Relay
- 3-Year Warranty
| Inputs | Detachable Terminal Block |
| Power Requirements | 24-33VDC@60mA |
| Packaging Info | |
|---|---|
| Package Weight | 0.45 lb |
| Box Dimensions (LxWxH) | 4.1 x 2.1 x 2.0" |
