Description
- 4 and 8 Ohm Operation
- 40 Watts
- Built-in Compressor Limiter
- Gold Platted RCA Jacks

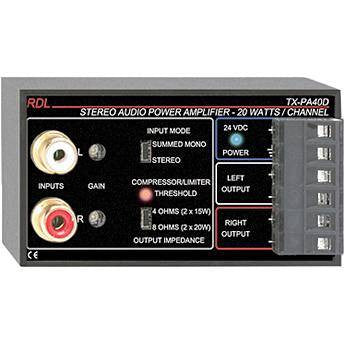

The RDL TX-PA40D 40 Watt Stereo Amplifier is a compact, yet powerful solution for driving 4 or 8 ohm speakers. The TX-PA40D is well suited for applications where fixed amplification is needed, and variable gain is provided from the source. For example, the TX-PA40D may be used as a fixed amplifier for a projector, mixer or tuner. There is a built-in compressor limiter that provides up to 20dB of gain reduction to avoid distortion and peaking. Additional features include gold, plated RCA connections, mono summing switch Power and Clip LED metering.
- Stereo Audio Power Amplifier
- 20 Watts RMS per Channel into 8 ohms - 40 Watts Total
- 15 Watts RMS per Channel into 4 ohms - 30 Watts Total
- Left and Right Unbalanced Phono Jack Inputs
- Switch-Selectable Stereo or Mono Operation
- Studio Quality, Aurally Transparent Compressor/Limiter
- Compressor/Limiter Controls Clipping
- Compressor Produces Maximized Average Output Power
- Compression Enabled Using Input Level Adjustments
- LED to Indicate Audio Compression Threshold
- Outputs Drive 4 or 8 Ohm Speakers
- High-Efficiency Class D Operation
- Thermal and Short-Circuit Protection
- TX-PA40D includes North American Cord; TX-PA40DE excludes Power Cord
UPC: 813721016249
In the Box
RDL TX-PA40D - 40 Watt Stereo Amplifier
- Power Supply Cord
- 1 Year Warranty
| Inputs | Line level (-10dBV nominal unbalanced), left and right |
| Input Impedance | 10k Ohm balanced |
| Gain | Single turn, one per channel |
| Input Level | Minimum Input Levels: -18dBV (to cross compressor threshold) Maximum Input Levels: +15dBV |
| Frequency Response | 20Hz to 20kHz (+/- 1dB, 4 or 8 Ohms) |
| THD & Noise | < 0.1% (1kHz, 1W, 4 or 8 Ohms); < 1% (50Hz to 20kHz, 8 Ohms)* *measured at compressor threshold level equaling 12 W RMS (8 Ohms) output power |
| Compressor | Threshold nominally 2dB below rated output, automatically adjusting attack and release times |
| Crosstalk | Better than 60dB (1kHz, no compression) |
| Noise | < 75dB (below 20W RMS) |
| Switches | Slide switches: Output Impedance 4 Ohms or 8 Ohms; Input Mode Summed Mono or Stereo |
| Output Power | 20W RMS into 8 ohms per channel, 40W RMS total; 15W RMS into 4 ohms per channel, 30W RMS total |
| Indicators | Red LED: Threshold LED indicates compressor activity Blue LED: Power on |
| Power Supply | Input: 100 to 240VAC, 50 to 60Hz, 1.5 A, IEC C14; Output to module: 24VDC |
| Packaging Info | |
|---|---|
| Package Weight | 1.35 lb |
| Box Dimensions (LxWxH) | 6.0 x 5.2 x 2.6" |
