Description

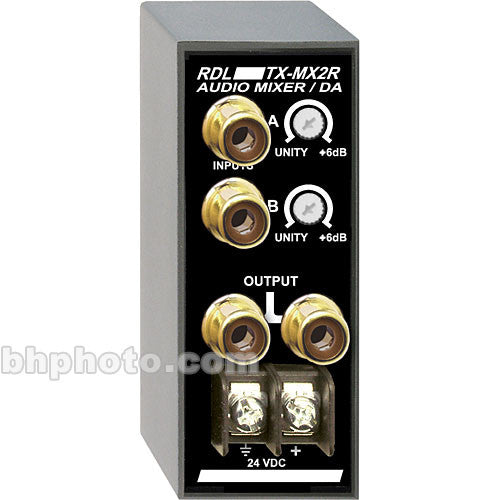

RDL TX-MX2R Overview
The RDL TX-MX2R is a compact, high-quality unit that offers active, isolated mixing of two unbalanced line-level audio sources and output to one or two unbalanced destinations. The unit may be used to send a stereo signal to two mono outputs or to mix 2 separate mono inputs into a single output. The internal circuit is an active summing amplifier, while the output driver provides two separate, identical signals, which allows the TX-MX2R to be used as a two-output distribution amplifier in addition to its mixing capabilities.
All inputs and outputs are high-quality RCA connectors. The inputs have individual gain controls that are adjustable up to 6 dB. The unit may be operated at any power supply voltage from 12 Vdc to 33 Vdc, with a normal operating voltage of 24 Vdc. The TX-MX2R may be used in conjunction with other RDL products in a system or on a stand-alone basis.
In the Box
- RDL TX-MX2R - Audio Mixer/Distribution Amplifier
- Limited 3-Year Manufacturer Warranty
Not in the Box
- Essential Batteries & Power (Not Included)
RDL TX-MX2R Specs
| Inputs |
2 x RCA (Unbalanced, Line-Level)
|
| Input Sensitivity |
-10 dBV
|
| Input Impedance |
10 k ohms
|
| Outputs |
2 x RCA (Unbalanced, Line-Level)
|
| Noise |
< -75 dB (Referenced to -10 dBV)
|
| THD + N |
< 0.05% (0.01% Typical)
|
| Frequency Response |
25Hz - 45kHz (+/- 0.5 dB)
15Hz - 70kHz (+/- 1 dB) |
| Gain |
Unity to +6dB Nominal (Per Channel)
|
| IMD |
0.01% Typical
|
| Headroom |
> 27dB (24 Vdc Supply)
> 18dB (12 Vdc Supply) |
| Power Requirements |
12 - 33 Vdc @ 10 mA (Ground-Referenced)
|
| Dimensions |
3 x 1.2 x 1.4" (76 x 30 x 36 mm)
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.2 lb
|
| Box Dimensions (LxWxH) |
4.1 x 2.1 x 2.1"
|
