RDL TXAFC1F Overview
- 1Description
- 2Pro to Consumer Level Conversion
- 3Versatile Mounting Options
- 4Studio Quality Audio

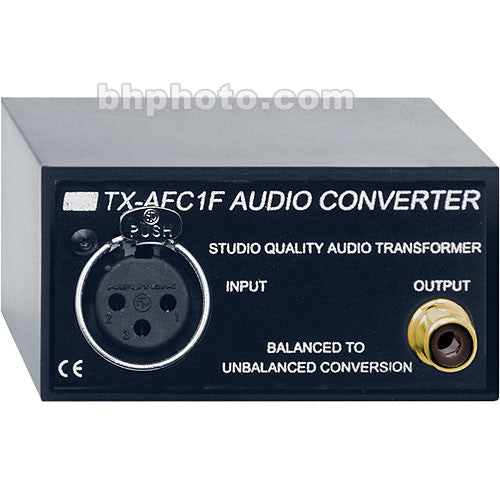

The RDL TX-AFC1F Audio Format Converter Bal-Unbal delivers wideband audio, ultra-low distortion, audio clarity and headroom common to studio equipment in a module suited to both studio and general-purpose audio installations. It is a single-channel (mono) module featuring a female XLR balanced input and phono jack unbalanced output. The TX-AFC1F bridges the input signal and is optimized to feed a 10 k Ohm load.
Pro to Consumer Level Conversion
The TX-AFC1F is the ideal choice in many applications requiring studio-quality transformer coupling between a balanced audio source and unbalanced equipment.
Versatile Mounting Options
The durable adhesives provided with the TX-AFC1F permit permanent or removable mounting. The TX-AFC1F may be rack or surface mounted and its compact size permits mounting in a variety of spaces. The location of the input/output jacks permits high-density mounting against flat surfaces while maintaining accessibility to the connectors.
Studio Quality Audio
A studio-quality audio transformer provides format conversion and galvanic isolation. The TX-AFC1F delivers the wideband audio, ultra-low distortion, audio clarity and headroom common to studio equipment in a module suited to both studio and general-purpose audio installations.
UPC: 813721016089
In the Box
- RDL TX-AFC1F Audio Format Converter Bal-Unbal
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Pro to Consumer Level Conversion
- Versatile Mounting Options
- Studio Quality Audio
RDL TXAFC1F Specs
| Frequency Response | 20 Hz to 20 kHz (+/- 0.1 dB) |
| THD (Main Outputs) | <0.06% (50 Hz to 20 kHz, +4 dBu input); 0.0015% (Typ. 1 kHz, +4 dBu input); 0.125% (Typ. 20 Hz, +4 dBu input) |
| Input Connector | 1 x XLR |
| Output Connector | 1 x RCA |
| Input Impedance | +4 dBu; +22 dBu maximum |
| Output Impedance | -10 dBV |
| Voltage Loss | Not Specified by Manufacturer |
| Maximum Input Level | +22 dBu |
| Dimensions | 3.0 x 1.6 x 1.6" (in.) (7.6 x 3.9 x 4.1 cm) |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.95 lb |
| Box Dimensions (LxWxH) | 4.2 x 2.1 x 2" |
