Description
RDL TP-HA1A Overview
- 1Description
- 2Mount to any Flat Surface
- 3Automatic Resetting Fuse
- 4Durable All-Metal Construction

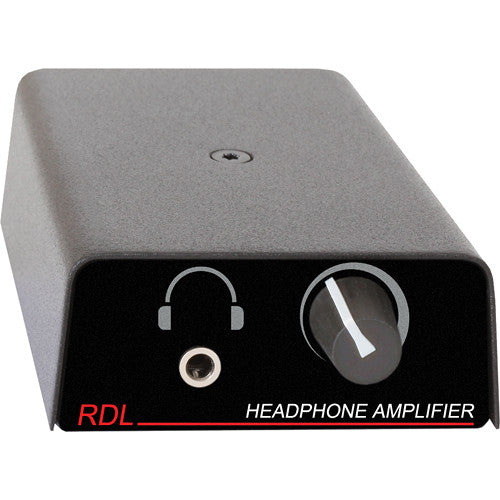

The RDL TP-HA1A Format-A Stereo Headphone Amplifier is designed to allow someone to listen to music via headphones over an RDL Format-A sender system. The amplifier features two RJ45 ports, either of which can receive both the power and the audio signal to the amplifier. The second RJ45 port can be used to connect additional headphone amplifiers or another Format-A receiver into the system. The headphone amplifier is designed for distributed audio applications, such as providing hotel guests with a bedside amplifier for listening to music. A single user-controllable volume knob allows you to adjust the volume of the signal sent to the 1/8" headphone jack.
Mount to any Flat Surface
The amplifier is designed so that it may be easily mounted to any flat surface, making it a convenient solution for a variety of distributed audio applications
Automatic Resetting Fuse
In the event of an overload, the device's internal fuse will automatically reset to normal operation
Durable All-Metal Construction
The amplifier is housed in a 100% metal enclosure
UPC: 813721013989
In the Box
- RDL TP-HA1A Format-A Stereo Headphone Amplifier
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Mount to any Flat Surface
- Automatic Resetting Fuse
- Durable All-Metal Construction
RDL TP-HA1A Specs
| Form Factor | Tabletop |
| Number of Headphone Channels | Single Channel |
| Headphone Output Power | 25 mW per Side into 100 Ohms |
Connectivity
| Analog Audio I/O | 1/8" / 3.5 mm TRS Headphone Output |
| Network I/O | 2 x RJ45 Ethernet |
Performance
| Frequency Response | 10 Hz to 40 kHz ±1 dB (100-Ohm Load) |
| THD+N | < 0.01% (1 kHz, 10 mW) |
| Noise | < -90 dB (Max Gain) |
| Crosstalk | < -85 dB (1 kHz) < -70 dB (20 Hz to 20 kHz) |
Power
| Power Requirements | PoE |
| DC Input Power | 24 VDC at 30mA |
Physical
| Dimensions | 3.9 x 2.57 x 1.13" / 9.92 x 6.53 x 2.87 cm |
| Weight | 0.5 lb / 0.2 kg |
Packaging Info
| Package Weight | 0.51 lb |
| Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
