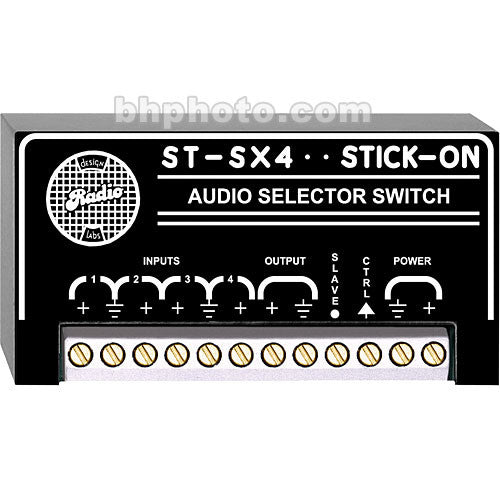

The RDL ST-SX4 is a four-input, single-output audio switcher in RDL's "Stick-On" line of products. It will send any one of the four unbalanced audio signals to the unbalanced output, or all of the sources may be switched off. A single input terminal provides control of the unit.

The desired input is switched on when connection of a specific resistance is made between the "Ctrl" input and the ground. The required resistors are included with the ST-SX4. The unit may be controlled by the RC4-ST remote control from RDL.

Solid-state audio input switcher
Compact housing
Four unbalanced inputs and one unbalanced output
Slave capability for stereo applications
Remote switching from a single control pair
UPC: 813721011206
In the Box
RDL ST-SX4 - 4-Input Audio Switcher
  • Resistor Pack
  • 3 Year Limited Warranty
Input and Output Level -10 dBV
Gain Unity
Headroom 23dB
THD + N < 0.1% (Typical 0.05%)
Frequency Response 15Hz to 40kHz (+/- 0.5dB)
Input Impedance 100 k ohms (Unbalanced)
Output Impedance < 50 ohms (Unbalanced)
Crosstalk Below Noise Floor
Off Attenuation > 85dB @ 1kHz
> 80dB @ 10kHz
> 75dB @ 20kHz
Residual Noise < -70dB (Referred to -10dBV)
Control Input Resistance 10 k ohms (Pull-up to +15 VDC)
Control Input Single Terminal to be Connected to:
None: 0 ohms (Short to Ground) 1: 2.7 k ohms 2: 6.8 k ohms 3: 22 k ohms 4: None
Power Requirements 24 to 33 VDC @ 40mA (Ground-Referenced)
Packaging Info
Package Weight 0.1 lb
Box Dimensions (LxWxH) 4.1 x 2.1 x 2.1"
