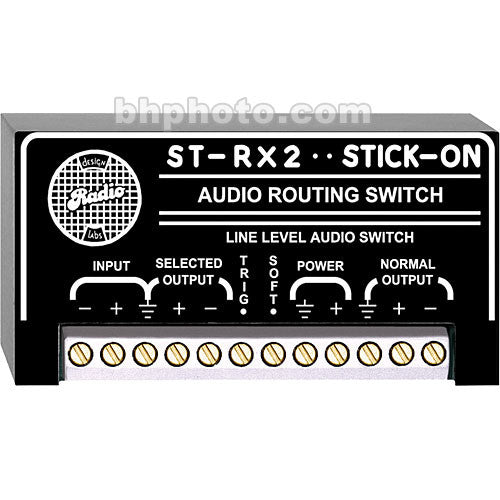

RDL ST-RX2 - 1x2 Audio Routing Switch

₹ 12,755.00

Price is inclusive of GST and Import duty charges

Buy on EMI starting at 618/month

Buy Now, Pay Later. 0% interest, choose LazyPay during checkout(for selected customers only).

SKU: 9007417040

Brand: Rdl

MPN: ST-RX2

UPC: 813721011794

Estimated Delivery Date

Ask a question about product

100% Original Products

Tanotis imports genuine branded products from worldwide

100% Secure Payment

Tanotis partners with Payumoney for secure payments

Priority Shipping

Priority Delivery within India across 80000+ pincodes

GST Invoice on all purchases

All products are shipped with GST bills, you will be eligible to take input credit.

Bulk Discounts

Quantity Price
2 Rs.12499.9
3-5 Rs.12372.35
5-10 Rs.12117.25
10+ Rs.11862.15

Bulk discount will be automatically applied during checkout based on quantity.

The ST-RX2 is a one-in, two-out line-level routing switch and a part of the "Stick-On" line from RDL . Anywhere you need to send an audio signal to one of two destinations, the ST-RX2 is an ideal companion. It offers solid-state switching to route the signal to one of the balanced outputs with an off attenuation better than 80dB at all frequencies; no relays or mechanical devices are used.

The ST-RX2 uses soft switching to eliminate any clicks or pops. The unit can be controlled by almost any source from switches to logic circuits thanks to its minimal required control current. It may also be controlled by the RC2-ST, RT2 or RUC-4 remote controls from RDL.

Routes a line-level source to one of two destinations
Compact form factor
Silent audio switching
Balanced or unbalanced routing
Switching by open-collector logic
UPC: 813721011794
In the Box
RDL ST-RX2 - 1x2 Audio Routing Switch
  • 3 Year Limited Warranty
Switching Time Normal Output Off: 10 us (Fast) 5 ms (Soft)
Normal Output On: 15 us (Fast) 70 ms (Soft)
Select Output Off: 15 us (Fast) 10 ms (Soft)
Select Output On: 20 us (Fast) 35 ms (Soft)
Control Signal "Trig" Terminal Must be Externally Connected to Ground
Control Current 0.5mA
Headroom > 18dB (Above +4 dBu)
THD + N < 0.03% (1kHz)
Common Mode Rejection Ratio > 45dB (100Hz)
Frequency Response 15Hz to 20kHz (+/- 0.5dB into 10 k ohms Bridging Input) 30Hz to 20kHz (+/- 0.5dB into 600 ohms)
Noise < -85dB (Below +4 dBu Unweighted)
-90dB (Typical)
On Gain Unity (Balanced Input and Output)
Off Attenuation > 80dB (Either Output)
> 95dB at 1kHz
Indicators 2 x Output LEDs
Power Requirements 24 to 33 VDC @ 40mA (Ground-Referenced)
Dimensions (HxWxD) 1.55 x 3 x 0.65" (39 x 76 x 17 mm)
Packaging Info
Package Weight 0.2 lb
Box Dimensions (LxWxH) 16.0 x 11.6 x 2.9"
