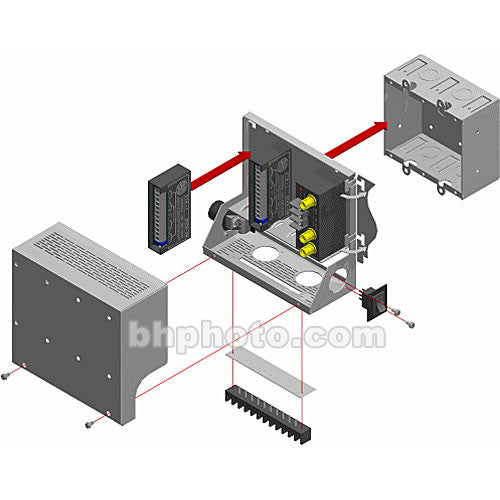

The SR-4 Stick-On Series Mounting Rack from RDL is a kit that allows you to mount Stick-On modules to a backboard, wall, or nearly any other flat surface. The unit will accommodate (4) Stick-On power amplifiers or (7) standard Stick-On modules. TX modules may also be used with this unit.
The kit provides ample space for wire harnessing and hole plugs are included to cover wiring holes. Four total entry ports, two on the bottom and one on each side, provide access for cabling or the ability to mount AMS accessories. Two rear mounting holes align with the RDL WB-2U universal wall box or a U.S. electrical box for wall-mount installations that require rear wire entry.
Mounting Kit for Stick-On Modules & TX Series
Use this kit to mount your Stick-On modules or TX Series products to a backboard or virtually any flat surface.
Numerous knockouts and hole plugs are provided to allow you to better organize and manage cabling.
This unit is designed to accommodate up to (4) Stick-On power amplifiers, (7) standard Stick-On modules, or TX modules (dependent upon the type of modules).
This unit features two rear mounting holes that align with the RDL WB-2U universal wall box or a U.S. electrical box for wall-mount installations.
In the Box
- RDL SR-4 Stick-On Series Mounting Rack
- Mounting Kit
- Assembly Hardware
- Limited 3-Year Manufacturer Warranty (Parts and Labor)
Table of Contents
- Description
- Mounting Kit for Stick-On Modules & TX Series
- Cable Management
- Capacity
- Wall-Box Mounting
RDL SR-4 Specs
| Construction |
18-gauge steel |
| Finish |
Black |
| Dimensions |
5.38 x 2.58 x 5.75" (13.67 x 6.55 x 14.61cm) |
