Description

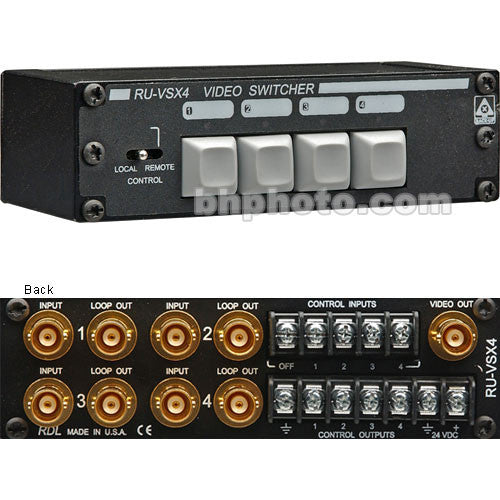

The RDL RU-VSX4 is a compact, 4x1 vertical interval composite video switcher. It offers looping connectors for all inputs, remote capabilities and features synchronization with RDL audio switchers.
- Gold Connectors
- The RU-VS4X4 offers Gold Plated BNC connectors for excellent continuity of connection.
- Synchronization
- Screw type connection to RC-4RU allows synchronizing of audio and video signal switching.
- Looping
- Each input has a loop out terminator connection to pass an unamplified signal.
UPC: 813721012838
In the Box
RDL RU-VSX4 4x1 Vertical Interval Video Switcher - BNC, Looping Inputs
- 3-Year Warranty
| Input | Composite Video x4: Looping, Unity @ 75 ohms, on BNC connectors Remote: Closure to ground, on screw-type terminals |
| Output | Composite Video: 0.5 to 1 Vpp @ 75 ohms, on a BNC connector |
| Switch Type | Vertical Interval Front Panel Remote via closure to ground |
| Video Bandwidth | 10 MHz |
| Differential Gain | 0.1% |
| Differential Phase | 0.3� |
| Video Signal-to-Noise Ratio | Not Specified by Manufacturer |
| Control | Front Panel Selection Closure to Ground Remote |
| Power Source | 24 to 33 VDC |
| Dimensions (WxDxH) | 1.7 x 5.8 x 2.5" (4.3 x 15.0 x 6.4 cm) |
| Weight | Not Specified by Manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 6.9 x 3.9 x 2.3" |
