Description

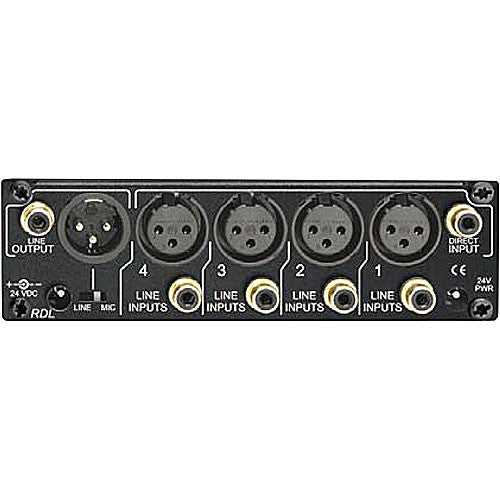

The RDL RU-MX4L is a rugged, compact four-channel audio mixer with an XLR and an RCA line input per channel. Outputs include a switchable balanced XLR mic/line output, as well as an unbalanced RCA jack that may be used to link another RU-MXR or RU-MX4L.

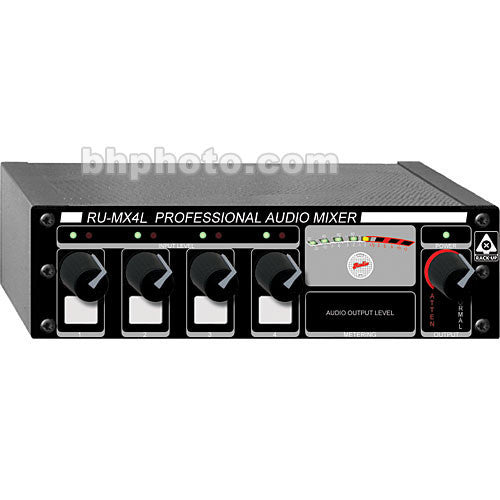

The mixer features level control on all inputs and individually switched +24V phantom power. The front panel provides peak LED meters and a VU meter that shows a level read of the mixer's output. The compact RU-MX4L is ideal for small sound reinforcement, public address systems or mixer expansion applications.
- Four Line Input Channels
- Each channel features a balanced XLR line input and an unbalanced RCA line input.
- Flexible Output Section
- The outputs consist of a mic / line selectable XLR connector, and an unbalanced RCA output that may be used for linking multiple mixers.
- Phantom Power
- All inputs feature individually selectable +24V Phantom Power.
UPC: 813721013071
| Input Connections | Line - Balanced XLR x4 Line - Unbalanced RCA Phono x4 |
| Output Connectors | Microphone/Line (Selectable) - Balanced XLR x1 Line - Line - Unbalanced RCA Phono x1 |
| Max Input/Output Gain | Mic: Off to 62dB gain (PHANTOM OFF ONHI gain); Off to 46dB gain (PHANTOM ON LO gain); Line: Off to 27dB gain |
| Signal-to-Noise Ratio | Mic: < 0.1% (80Hz to 20kHz) Line: < 0.02% |
| Phantom Power | +24V |
| AC Power Requirements | GROUND-REFERENCED 24VDC @ 150mA |
| Dimensions | 1.7 x 5.8 x 4.8" (4.3 x 15.0 x 12.2cm) (HxWxD) |
| Weight | Not Specified by Manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 7.0 x 6.5 x 2.5" |
In the Box
RDL RU-MX4L Four Channel Pro Audio Line Mixer (Line Level Only)
- 3 Year Warranty
