| ₹ 26625.0 includes GST and import duties. | |
| B2B customers can avail ₹ 4060.31 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

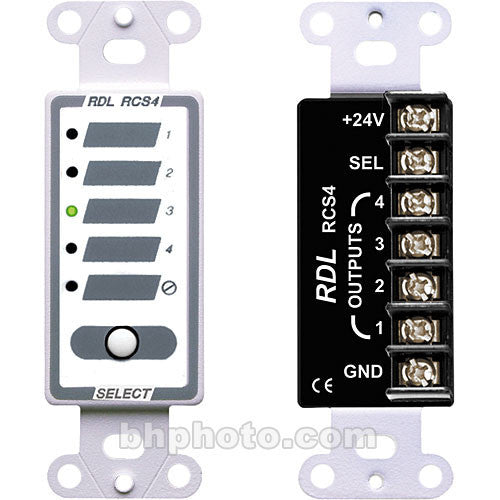

The RCS4 from RDL is a remote channel selector designed to interface with RDL control modules such as the RU-SX4A audio selector. The momentary push-button of the RCS4 sends a stepping signal back to the control module, causing it to advance sequentially to the next input. The audio is muted during stepping to prevent small audio "bursts". The RCS4 has a durable steel construction making it suitable for any professional audio application.
- Compatible with multiple RDL control modules
- LEDs indicate selected channel
- Multiple units may be connected to a single control module
- Durable steel construction and professional appearance
- Full-size rear-panel barrier block connector
In the Box
RDL RCS4 - Remote Channel Selector (4 Channel)
- 3 Year Limited Warranty
| Inputs | 4 x Screw Terminals for Direct Connection to RDL Selector Module 1 x +24V Screw Terminal 1 x Ground Screw Terminal |
| Output | 1 x Select Screw Terminal, Push-Button Actuated (15 VDC @ 5 mA) |
| Indicators | 4 x Green LEDs 1 x Red LED |
| Power Requirements | 24 - 33 VDC @ 25 mA (Ground-Referenced) |
| Dimensions (WxDxH) | 1.3 x 1.6 x 4.1" (33 x 41 x 104 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.5 lb |
| Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 26092.5 |
| 3-5 | ₹ 25826.25 |
| 5-10 | ₹ 25293.75 |
| 10+ | ₹ 24761.25 |
Bulk discount will be automatically applied during checkout based on quantity.
