Description
- Constant Voltage: 25V, 70V or 100V
- Suited for Commercial Audio Installation
- Single Zone Configuration
- 35 Watts
- One Audio Input
- Adds Additional Zone to RDL HD Systems
- Energy Efficient

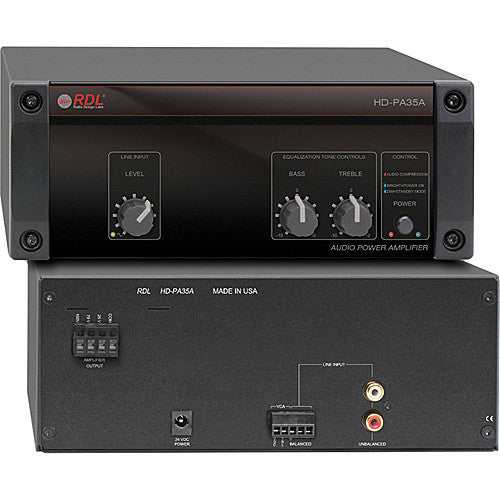

The RDL HD-PA35A 35 Watt Remote Mixer Amplifier is a versatile audio amplifier, mixer and paging system targeted for background music, call on-hold music, and commercial audio applications. The single Zone amplifier delivers 35 watts and a single input with balanced stereo summing, and unbalanced RCA connectors.
The unit is built to high energy efficiency standards and is more than ideally suited for commercial retail, offices, warehouses, restaurants, bars, and various other environments that require a versatile and efficient audio paging amplifier.
- 25V, 70V or 100V constant voltage operation
- One input with front-panel volume control
- Bass and Treble tone controls
- Designed as a single zone amplifier
- Master volume VCA controlled with remote adjustment capability
- Amplifier output on detachable terminal block
- Unbalanced summing inputs on RCA jacks
- Includes power supply
- High-efficiency Class D operation
In the Box
RDL HD-PA35A 35 Watt Power Amplifier
- Power Supply
- 3-Year Limited Warranty
| Amplifier | Rated Power: 35W RMS |
| Audio Inputs | Unbalanced stereo summing input on RCA jacks |
| Maximum Input Level | + 9dBV (+15.5 dBV, one input); (for 1% THD+N at output) |
| Phantom Power | 24VDC (IEC 1938: 1996-12), switch-selectable for the mic input |
| Power | 100 to 240 VAC, 50-60 Hz, 50 W; 24 VDC output to amplifier chassis |
| Input Level | -15 dBV (180 mV), (to cross compressor threshold equaling 23 W amplified output, both input jacks driven) |
| Noise | < -75 dB (max gain) |
| THD | < 0.5% (1 kHz at compressor threshold, main amp output) |
| Compressor | Threshold 2 dB below rated output, automatically adjusting attack and release times |
| Frequency Response | � 3dB: 50Hz to 18kHz |
| Tone Controls | �10 dB @ 10 kHz, �9 dB @ 100 Hz (front-panel) with center detent |
| Indicators | Front-panel: Signal present (green), Compressor activity (red), Power (bright=on, dim=standby, blue) |
| Controls | VCA: Output level, 0 to 10 Vdc control, RJ45 (compatible with RDL VCA wall controls) Front-panel controls (4): Input, EQ (2, bass and treble), Power (momentary pushbutton, toggle on/standby) Rear-panel controls (4): Sleep (standby) mode delay (4 binary switches) |
| Temperature | 32 to 122� F Maximum; 68� F Recommended (0 to 50� C Maximum; 20� C Recommended) |
| Dimensions (HxWxD) | 3.5 x 8.5 x 6.75" (8.89 x 21.6 x 17.1cm) |
| Weight | 6 lb. (2.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 6.995 lb |
| Box Dimensions (LxWxH) | 10.75 x 9.125 x 3.938" |
