Description

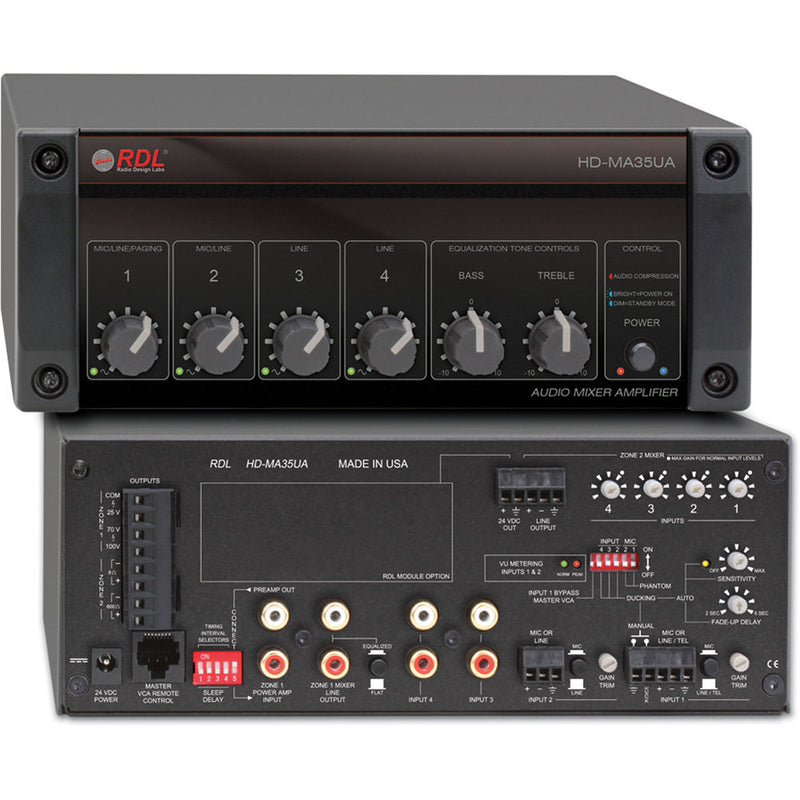

The HD-MA35UA 35-Watt Mixer Amplifier from RDL features dual-zoned amplifier outputs and is designed for use in applications requiring background music with paging or music-on-hold functionality. The unit has 4 audio inputs, each with independent volume controls, including 2 mic- or line-level inputs on terminal blocks and 2 stereo RCA line inputs that are each summed to mono. The HD-MA35UA has two output power amplifier zones, 35 watts (Zone 1) and 4 watts (Zone 2), and are driven from high-efficiency Class D amplifier stages. The mixer and amplifier sections all normally shut down (standby "sleep" model) when audio is absent, and automatically turn on when needed.
The HD-MA35UA features 2 mixers. Its Zone 1 mixer provides 35 watts of amplifier output for background music use, while the Zone 2 mixer has 4 watts of output on a 600 ohm connection for music-on-hold scenarios and/or background music in a small zone equipped with an 8 ohm speaker. Additionally, a line-level output allows for connectivity to a separate power amplifier. This unit comes with a USA power supply.
- Four inputs with individual front-panel volume controls
- Bass and Treble tone controls
- Designed for background music with paging and music-on-hold
- Master volume VCA controlled with remote adjustment capability
- Manual or automatic (VOX) priority ducking
- Balanced inputs and amplified outputs on detachable terminal blocks
- Unbalanced inputs and outputs on RCA jacks
- Includes power supply
- Automatic sleep mode for energy savings
- Analog compressor/limiter for Zone 1
UPC: 813721010711
In the Box
RDL HD-MA35UA 35-Watt Remote Mixer Amplifier (USA Power Supply)
- PS-24V2A 24VDC Switching Power Supply with North American Cord
- Limited 3-Year Warranty
| Zones | Amplifier Zones: Zone 1 (Main): 35 W RMS, front-panel mixer (user controls) Zone 2: 4 W RMS (8 ?), rear-panel mixer (trimmers) |
| Audio Inputs | 2x balanced, mic or line switch selectable on terminal blocks 2x unbalanced stereo summing inputs on RCA jacks 1x unbalanced amp in on RCA jack |
| Gain Adjustment | Inputs 1 and 2: Rear-panel single-turn trimmer |
| Maximum Input Level | Mic Inputs: -9 dBu Balanced line inputs: + 20 dBu Unbalanced Inputs: + 5 dBV (+11 dBV, one input), (for 1% THD+N at output) |
| Phantom Power | 24 VDC (IEC 61938: 2013), switch-selectable for each mic input |
| Ducking | Ducking/Muting Actuation: Automatic (Input 1 VOX: rear-panel adjustable signal threshold with LED indicator) or Manual (contact closure to ground) Ducking/Muting Release Delay: Rear-panel single-turn trimmer, adjustable 2 to 6 seconds Ducking/Muting: Switch-selectable for inputs 2, 3 and/or 4, 25 dB ducking attenuation, nominal |
| Effects Loop | Unbalanced RCA jacks (preamp output from main mixer, input to power amplifier) |
| Power Output | External RDL Module Power Output: 24 VDC, 100 mA maximum, ground-referenced |
| Input Level | To Cross Compressor Threshold Equaling 23 W Amplified Output: Mic Inputs: -50 dBu (2.5 mV), (front panel and rear trimmer at max.) Balanced Line Inputs: -21 dBu (70 mV), (front panel and rear trimmer at max.) Unbalanced Inputs: -15 dBV (180 mV), (front panel and rear trimmer at max., both inputs driven) |
| Noise | Line or Amplified Outputs: Mic or Balanced Line Inputs: -70 dB (below compressor threshold at max gain) Unbalanced Inputs: <-75 dB (max gain) |
| THD + N | < 0.5% (1 kHz at compressor threshold, main amp output); < 0.1% (line output, main) |
| CMRR | Microphone Inputs: > 50 dB (50 Hz to 120 Hz) Balanced Line Inputs: > 80 dB (50 Hz to 120 Hz, transformer-coupled input) |
| Compressor | Threshold 2 dB below rated output, automatically adjusting attack and release times |
| Frequency Response | Mixer: Mic to line output: �1.5 dB (40 Hz to 25 kHz) Balanced line input to line output: �1 dB (20 Hz to 20 kHz) Unbalanced line input to line output: �0.5 dB (20 Hz to 20 kHz) Amplifiers: Constant voltage: �3 dB (50 Hz to 20 kHz); 4/8 ? �1 dB (50 Hz to 20 kHz) |
| Tone Controls | �10 dB @ 10 kHz, �9 dB @ 100 Hz (front-panel) with center detent |
| Audio Outputs | -10 dBV nominal (316 mV), dual mono unbalanced RCA (main mixer; FLAT or EQUALIZED, switch-selectable on rear panel) 0 dBu nominal balanced, terminal block (Zone 2 mixer) |
| MOH Output | 0 dBu nominal (775 mV), 600 ? transformer-isolated, 16 dB headroom |
| Amplifier Output | Zone 1 (main): 35 W RMS (25, 70 or 100 V) Zone 2: 4 W (8 ?, on detachable terminal block) |
| Indicators | Front-panel: Signal present (4; 1 per input, green), Compressor activity (red), Power (bright=on, dim=standby, blue) Rear-panel: dual-LED VU meter (for inputs 1 and 2, green/red), Ducking/muting threshold (yellow) |
| VCA | Zone 1 (main) master level (with switch-selectable input 1 bypass), 0 to 10 VDC control, RJ45 (compatible with RDL VCA wall controls) |
| Controls | Front-Panel Controls: Zone 1 (main) mixer level controls (4, inputs 1 through 4) EQ (2, bass and treble) Power (momentary pushbutton, toggle on/standby) Rear-Panel Controls: Gain trimmers (2, input 1 and 2) Mic/Line switch (2, input 1 and 2) Zone 1 line output pre/post-EQ switch Effects loop bypass switch Sleep (standby) mode delay (4 binary switches) Input 1 ducking/muting detector sensitivity trimmer Phantom voltage switches (2, input 1 and 2) Ducking control switches (3, to duck inputs 2, 3, and/or 4) VCA paging bypass (includes or excludes input 1 from master VCA control) Zone 2 mixer level controls (4, inputs 1 through 4) |
| Sleep Mode | Power Consumption: < 1 W (amplifier and included power supply) Delay: 10 minutes to 2 hours (switch-selectable in 10 minute increments) Disable: Selectable |
| Active Mode Delay | 2 seconds (nominal) after input audio detected |
| Audio Detector Threshold | -80 dBu mic (at max input gain), -55 dBu balanced line (at max input gain), -42 dBV unbalanced |
| Ambient Operating Environment | -32 to 122°F (0 to 50�C) Maximum; 68°F (20�C) Recommended |
| Dimensions | 3.5 x 8.5 x 10.0" (8.89 x 21.60 x 25.40 cm) |
| Weight | 7.3 lb (3.3 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 9.8 lb |
| Box Dimensions (LxWxH) | 18.8 x 9.6 x 4.2" |
