Description

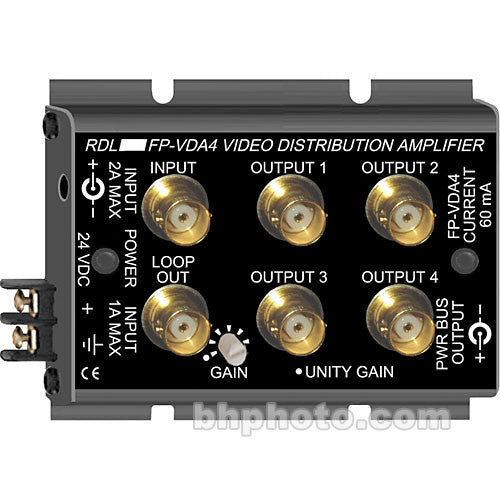

The RDL FP-VDA4 is a 1x4 Composite Video distribution amplifier; it accepts one Composite Video signal on a BNC connector and outputs four Composite Video signals. It features gain control and a flat pack housing.
Note: Power Supply Purchased Separately
- Gain Control
- The video gain control is accessed from the top panel via a potentiometer.
- FLAT-PAK
- RDL's FLAT-PAK all metal construction offers a compact housing that can be mounted to a variety of surfaces.
- Power Output
- A power output bus is offered for running many FLAT-PAKs from the same supply.
UPC: 813721012401
In the Box
RDL FS-VDA4 1x4 Composite Video Distribution Amplifier - BNC Connectors, Gain Control
- 3 Year Warranty
| Input | Composite Video , Looping, 1 Vpp @ 75 ohms, on a BNC connector |
| Output | Composite Video x4 , 1 Vpp @ 75 ohms, on a BNC connector |
| Video Bandwidth | 10 MHz |
| Video Signal-to-Noise Ratio | 75 dB |
| Differential Phase | 0.1� |
| Differential Gain | 0.1% |
| Video Control | Video Gain |
| Coupling | Not Specified by Manufacturer |
| Power Source | 24 VDC from an Optional Power Supply |
| Dimensions | 3.25 x 4.43 x 1.34" 8.26 x 11.25 x 3.40cm |
| Weight | Not Specified by Manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.6 lb |
| Box Dimensions (LxWxH) | 4.8 x 4.5 x 2.45" |
