Description
- 3-Channel VCA Controlled Audio Mixing
- Controls Multiple Sources Within a Zone
- Connections via Format-A Twisted Pairs
- Balanced or Unbalanced Inputs
- Microphone or Line Switchable Inputs
- LED Audio Detector

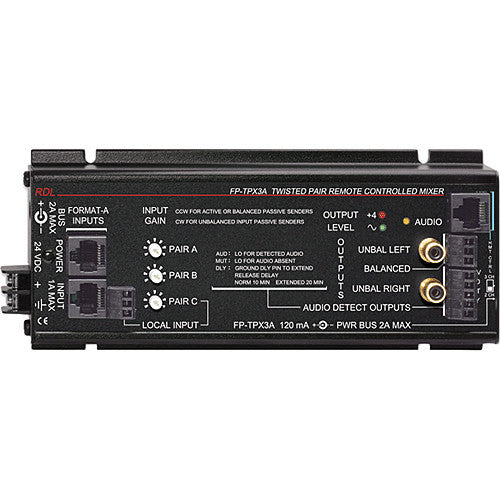

The RDL FP-TPX3A Format-A Twisted Pair Remote Controlled Mixer is a 3-channel audio mixer used for controlling multiple sound sources within zones in commercial PA and paging audio systems. The FP-TPX3A features 3 inputs that may be used as balanced or unbalanced, microphone or line level connections, and phantom power is sent to microphones and sources that require it. Connections are made over Format-A twisted pair inputs, and a pair of unbalanced RCA outputs are also featured. The Audio Detect Outputs feature an LED that detects output signal, as well as trigger outputs that automatically start/shut down compatible audio gear, in order to maximize energy efficiency and preserve the life span of the connected audio sources.
- 3?Channel remote?controlled audio mixer
- VCA level control for each input pair
- Format?A twisted pair inputs
- One detachable balanced and two RCA unbalanced mono outputs
- Twisted pair interconnection to remote control
- Directly controlled by RDL remote controls with 2 or 3 channels
- Local input available if only two twisted pair inputs used
- Paging source may connect to local input
- Front?panel gain trim matches active or passive Format?A senders
- Dual?LED VU meter displays mixer output level
- Audio presence detector controls open?collector outputs
- Detector outputs intended to enable power amplifiers or system power
- Energy savings possible using detector outputs
- Selectable 10 or 20 minute detector release delay
- 3 Year Limited Warranty
| Inputs | RDL FORMAT?A; Balanced line level Connections: RJ45 (FORMAT?A); Detachable Terminal Block (Pair C) |
| Outputs | 150 ? balanced; 1 k? unbalanced (2) Connections: Detachable Terminal Block (balanced); RCA Phono Jacks (unbalanced) |
| Output Level | +4 dBu balanced, ?10 dBV unbalanced |
| Frequency Response | 20Hz to 20kHz (+/? 0.25 dB) |
| THD | < 0.05% (20 Hz to 20 kHz); <0.02% (1 kHz) |
| Noise | < ?100 dB (all channels off); <?75 dB (any channel on); <?70 dB (all channels on) |
| Headroom | > 18 dB |
| CMRR | > 80 dB (50 Hz to 150 Hz) |
| Attenuation / Gain | VCA attenuation: >90 dB (each input, remote control volume off) |
| Indicators | Dual?LED VU meter (2); Audio present (threshold = 35 dB below +4 dBu output) |
| Power | Power Connections (3): Terminal block; DC power jack (2) Power Requirement: 24VDC @ 120 mA plus connected FORMAT?A sender currents |
| Dimensions (HxWxL) | 1.42 x 3.25 x 8.14" (3.61 x 8.26 x 20.68cm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.16 lb |
| Box Dimensions (LxWxH) | 8.563 x 3.375 x 1.5" |
