Description
RDL FP-SPR1 Overview
- 1Description
- 2SPDIF Signal Conversion & Recovery
- 3SPDIF Inputs & Outputs
- 4LED Indicator
- 5Power
- 6Expansion

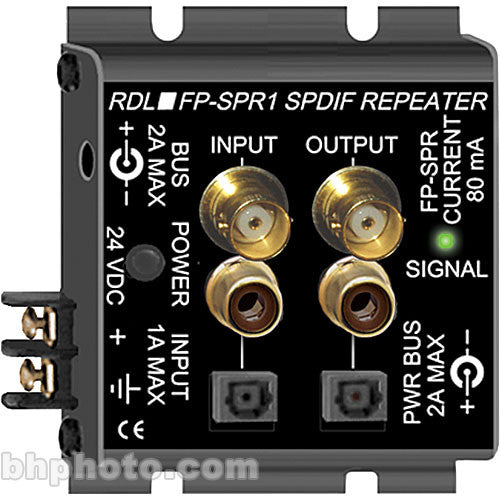

The FP-SPR1 SPDIF Repeater and Amplifier from RDL is a single-channel module designed to perform conversion between BNC, phono, and optical SPDIF connector types. Only one of the three outputs or a combination of the coaxial and optical outputs may be used simultaneously. A front-panel LED indicates the status of input and output signals.
Power connections are made via a full-size barrier block terminal or a DC power jack located on the first end panel. A second DC power jack is included on the second end panel to allow the connection of additional FLAT-PAK modules (sold separately).
SPDIF Signal Conversion & Recovery
This device performs conversion between SPDIF connector types and recovery of low SPDIF signal levels.
SPDIF Inputs & Outputs
An input and output for each conventional SPDIF format is included: BNC, phono, and optical.
LED Indicator
The front-panel includes an LED that indicates the status of input and output signals.
Power
This unit may be powered via its full-size barrier block terminals or DC power jack.
Expansion
A second DC power jack is included to allow the connection of additional FLAT-PAK modules.
UPC: 813721012494
In the Box
- RDL FP-SPR1 SPDIF Repeater and Amplifier
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- SPDIF Signal Conversion & Recovery
- SPDIF Inputs & Outputs
- LED Indicator
- Power
- Expansion
RDL FP-SPR1 Specs
| Material of Construction | Metal, Plastic |
| Inputs | 1 x BNC Coaxial (75 Ohms) 1 x Phono Coaxial (75 Ohms) 1 x Optical |
| Input Level | 100 mV to 2.5 V p-p (Coaxial) |
| Output | 1 x 75 Ohms BNC Coaxial 1 x 75 Ohms Phono Coaxial 1 x Optical |
| Output Level | 500 mV p-p (Coaxial) |
| Frequency Range | 28 to 48 kHz |
| Indicators | 1 x Signal Present LED |
| Jitter | < 200 pS (Input Signal 200 mV p-p or Greater) < 1 nS (Input Signal 100 mV to 200 mV p-p) |
| Ambient Operating Environment | 14 to 131°F / -10 to 55°C |
| Power Requirement | 24 VDC @ 80 mA, Ground-Referenced May Operate from 12 VDC in Standalone Installations |
| Dimensions | 1.34 x 3.25 x 2.82" / 3.40 x 8.26 x 7.16 cm |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.55 lb |
| Box Dimensions (LxWxH) | 4.9 x 4.3 x 2.3" |
