Description
- Single Source S/PDIF to AES
- Coaxial, Optical and BNC Input
- Supports up to 24-bit/192kHz
- Cabinet, Shelf or Rack Mounting

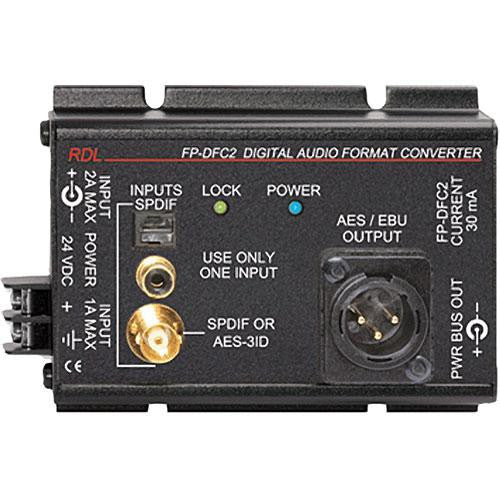

The FP-DFC2 from RDL is a professional solution for where conversion of an S/PDIF digital audio signal to AES/EBU format is required, and where installation space is at a premium. The compact form still manages to provide 3 input-connector options, along with two LEDs that indicate power present and lock status for the incoming signal.
The included Sure-Lok auto-recovery circuitry delivers stability in the event of input signal interruption, by re initiating lock up of the signal as soon as it is available. The FP-DFC2 is also supplied with a power interconnect cable for daisy-chaining multiple modules from a single power supply (power supply is not included). Power can also be applied via full-size barrier block terminals.
- Digital audio format converter that provides AES/EBU output from a single source S/PDIF input
- Full operation up to 24-bit/192kHz with automatic sample rate detection
- Input can be derived from any one of 3 connector sources, RCA coaxial, TOSLink optical or BNC
- All header information common to both formats is provided in the AES/EBU output, not just selected information
- Anti latch-up control circuits guarantee re-lock with the incoming digital signal in the event that the input is interrupted due to switching or other unforeseen circumstances
- AES/EBU output is transformer isolated
- Compact design permits the unit to be easily mounted, particularly in confined spaces and in various locations in equipment racks where space is at a premium
- Three (3) Year Warranty
| ADC | Not applicable |
| DAC | Not applicable |
| Sample Rates | Up to 192kHz |
| Analog In | Not applicable |
| Analog Outputs | Not applicable |
| Digital Input Connectors | 1 x RCA coaxial 1 x TOSLink optical 1 x BNC |
| Digital Output Connectors | 1 x XLR |
| Word Clock | No |
| Dynamic Range | Not applicable |
| Frequency Response | Not applicable |
| THD + N | Not applicable |
| Power Requirements | 24VDC @ 30mA, center post +, via optional external power adapter |
| Dimensions (WxDxH) | 3.25 x 4.8 x 1.34" (83 x 122 x 34mm) |
| Weight | Not specified by manufacturer |
| Specialties | BNC jack can also receive an AES-3id signal and convert it to AES/EBU |
| Packaging Info | |
|---|---|
| Package Weight | 0.75 lb |
| Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.4" |
