| ₹ 52935.0 includes GST and import duties. | |
| B2B customers can avail ₹ 8072.59 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

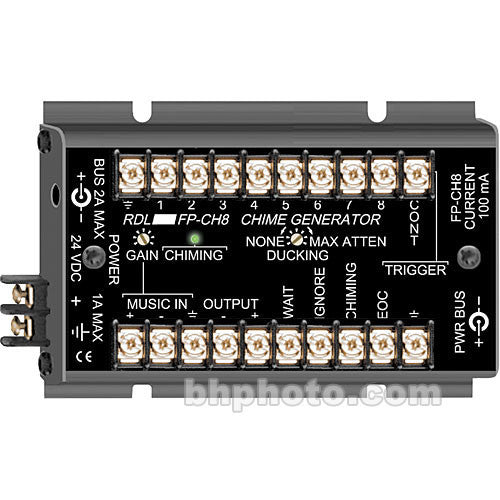

The FP-CH8 Chime Generator from RDL is an electronic chime generator that can produce (8) different synthesized chimes. Each chime can consist of (3) tones and (3) harmonics to create a natural sound and both single and sequence/repeated tones are available.
Background music and audio may be connected to an audio input. When chimes play, the music source will automatically fade or cut out momentarily depending on the preset you choose. Indicators on the generator show that status of music or chimes. Chime patterns available on this model include:
-single strike
-double strike
-triple strike
-tone ring
-manual strike
-descending triple strike
-euro siren
-multi-tone alert
- Chime Generation
- This unit can electronically produce up to (8) different chime sounds.
- Synthesized Bell Harmonics
- Each chime can consist of (3) tones and (3) harmonics to produce a natural sound.
- Single & Sequence Tones
- Both single and repeated tones are available on this unit.
- Background Music
- An audio input is available for music and can be set to automatically fade or cut out when a chime rings.
- Status Indicators
- Indicators on the unit show the status of music and chimes.
- Chime Generator
- Three-Year Warranty Against Defects In Material & Workmanship
| Construction | Metal, plastic |
| Finish | Black |
| Music Input | Inputs: 50 k? balanced or unbalanced Input Signal: -20 dBV (unbalanced) to +4 dBu (balanced) Maximum Input Level: +22 dBu Frequency Response: 20Hz to 50kHz (+/- 0.5 dB) THD+N: < 0.05% (unity gain, 50Hz to 20kHz) Noise below +4 dBu: < -70 dB (unity gain) Headroom: > 16 dB (above +4 dBu) Gain: Unity to +22 dB (adjustable) Ducking Level: Unity to fully off (adjustable) |
| Control Terminals | Input Configuration: Pull to ground, 0.5mA Trigger Inputs (8): Trigger on high to low transition Control Inputs (3): WAIT (play delay) IGNORE/Abort (no playback) CONT (continuous repeat of triggered chime) Output Configuration: Open collector @ 100mA Control Outputs (2): CHIMING (low when chiming) EOC (low 100 mS at end of chime) |
| Output | Output: 150? balanced or 75? unbalanced Output Signal: +4 dBu nominal |
| Power | 24-33VDC @ 100mA, ground-referenced |
| Dimensions (HxWxD) | 3.25 x 5 x 1.36" (8.26 x 12.7 x 3.46cm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.3" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 51876.3 |
| 3-5 | ₹ 51346.95 |
| 5-10 | ₹ 50288.25 |
| 10+ | ₹ 49229.55 |
Bulk discount will be automatically applied during checkout based on quantity.
