Description
RDL EZ-PH1 Overview

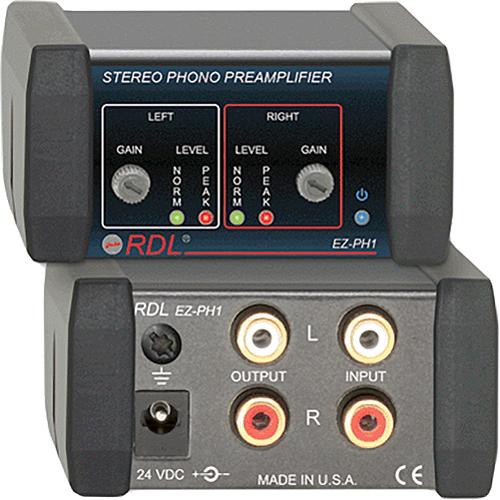

The EZ-PH1 Stereo Phono Preamplifier from RDL can be used to adjust the output of your turntable to line level. It features gold-plated stereo RCA inputs and outputs, and has front-panel gain control for each input channel. It provides RIAA equalization, and includes a turntable grounding screw and a USA power supply.
Phono Input on Gold-Plated RCA Jacks
Line Output on Gold-Plated RCA Jacks
Front-Panel Gain Trimmer for Each Channel
Dual-LED VU Meter for Each Channel
RIAA Equalization
Turntable Grounding Screw Provided
Gold-Plated Connectors
Adapt Turntable to an Amplifier Line Input
Feed a Turntable into a CD Recorder
UPC: 813721010131
In the Box
- RDL EZ-PH1 Stereo Phono Preamplifier (USA Power Supply)
- RDL PS-24AS Switching Power Supply
- Turntable Grounding Screw
- Limited 3-Year Manufacturer Warranty
RDL EZ-PH1 Specs
| Input | 2x Stereo RCA jacks (47 k?) |
| Input Level | -18 dBV, maximum |
| Gain | Off to +55 dB (1 kHz) |
| Output | -10 dBV nominal on stereo RCA jacks |
| Equalization | RIAA |
| Frequency Response | 20 Hz to 20 kHz (±0.75 dB referred to RIAA curve) |
| Crosstalk | <-75 dB (1 kHz) |
| Metering | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
| THD + N | <0.05% (20 Hz to 20 kHz, 36 dB gain) |
| Noise | <-74 dB (36 dB gain, 1 kHz), <-80 dB (36 dB gain, 1 kHz, "A-weighted") |
| Current | 24 VDC Power Supply Current: 30 mA (idle), 45 mA (maximum) |
| Dimensions | 2.7 x 2.8 x 1.5" (7.0 x 7.2 x 3.7 cm) |
Packaging Info
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.4" |
